Swim Spa Cover Lifter - JACL-07

Product Description

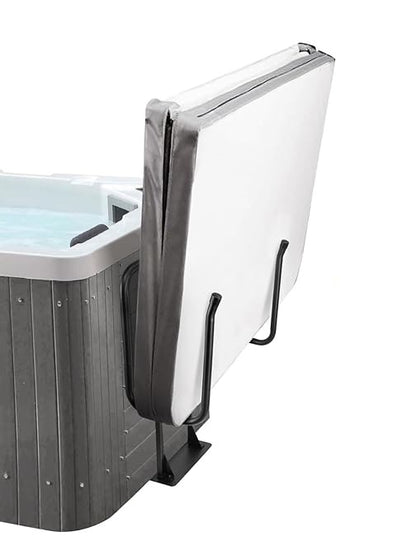

The JACL‑07 Spa Cover Lifter is a strong, stable solution designed to make removing and storing spa or swim spa covers effortless. Featuring a freestanding vertical design, it supports heavy covers while keeping them securely positioned and off the ground.

The frame is constructed from powder‑coated aluminium, offering excellent durability and resistance to corrosion. Key structural and assembly components are manufactured from steel for added strength. The aluminium frame is not prone to rust unless the protective coating is damaged, making it well‑suited for long‑term outdoor spa installations.

With an adjustable height range and wide support arms, the JACL‑07 is ideal for larger spa and swim spa covers, providing smooth handling and reducing strain during use.

Key Features

• Heavy‑duty spa & swim spa cover lifter
• Powder‑coated aluminium frame
• Steel fittings for structural strength
• Rust‑resistant (coating protected)
• Free‑standing base design
• Height‑adjustable to suit various spa sizes
• Supports wide and heavy spa covers
• Suitable for outdoor installations

Technical Specifications

• Model: JACL‑07
• Material (Frame): Powder‑coated aluminium
• Fittings: Steel (assembly and support components)
• Rust Resistance: Frame will not rust unless coating is damaged
• Installation Type: Slides into spa base

Dimensions (Approx.)

• Top support width: 753 mm
• Side arm width: 172 mm
• Height adjustment range: 800 – 1200 mm

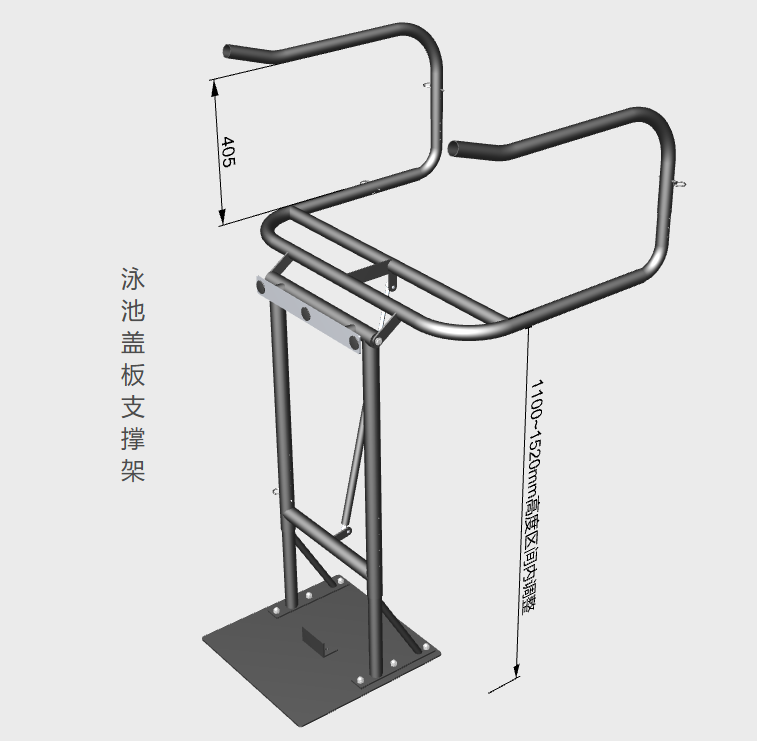

• Alternative height range (upper support): 1100 – 1520 mm
• Side arm height: 405 mm
• Base support height: 400 mm
