Heat Pump

SKU: APUMHEX513

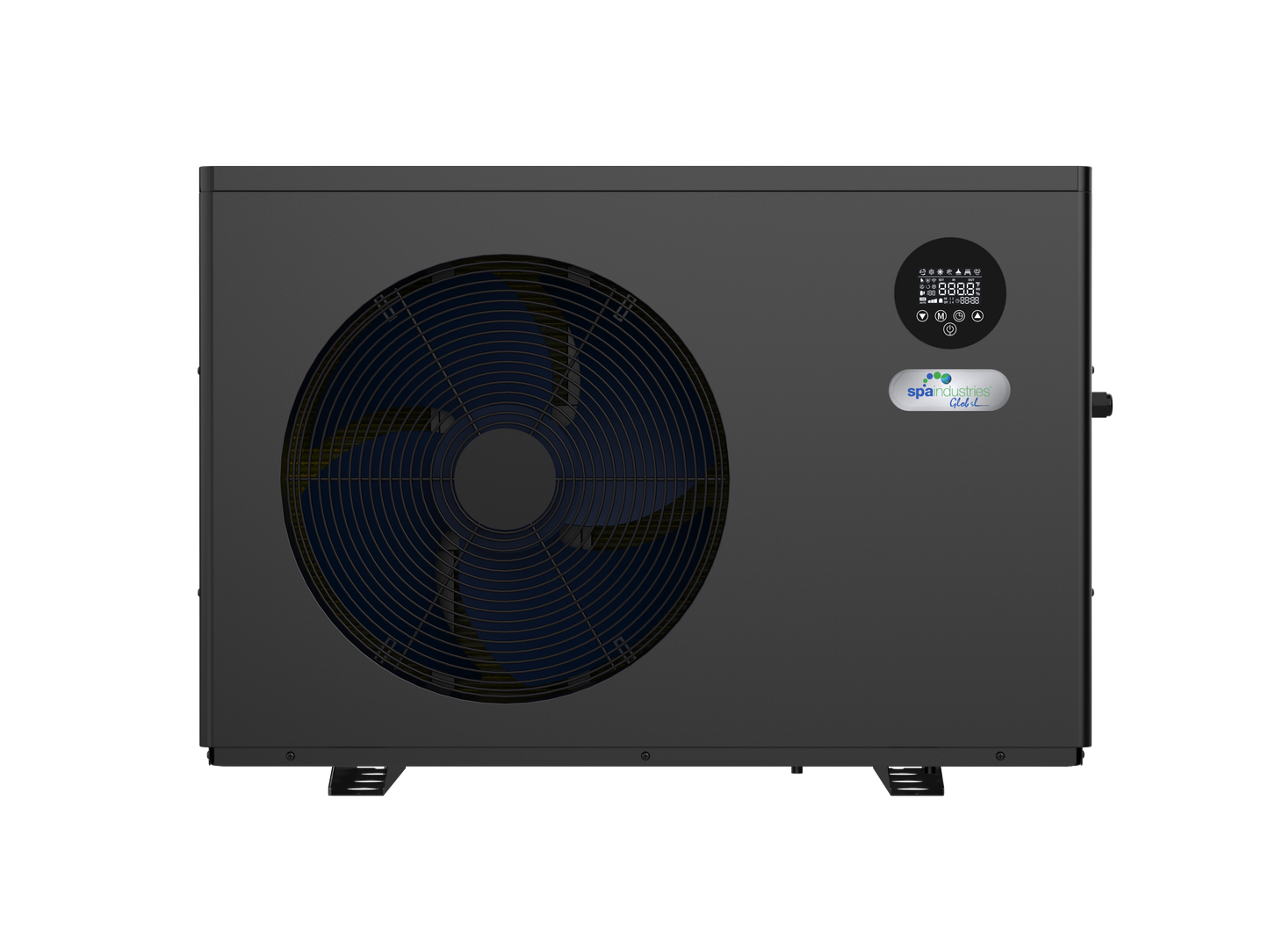

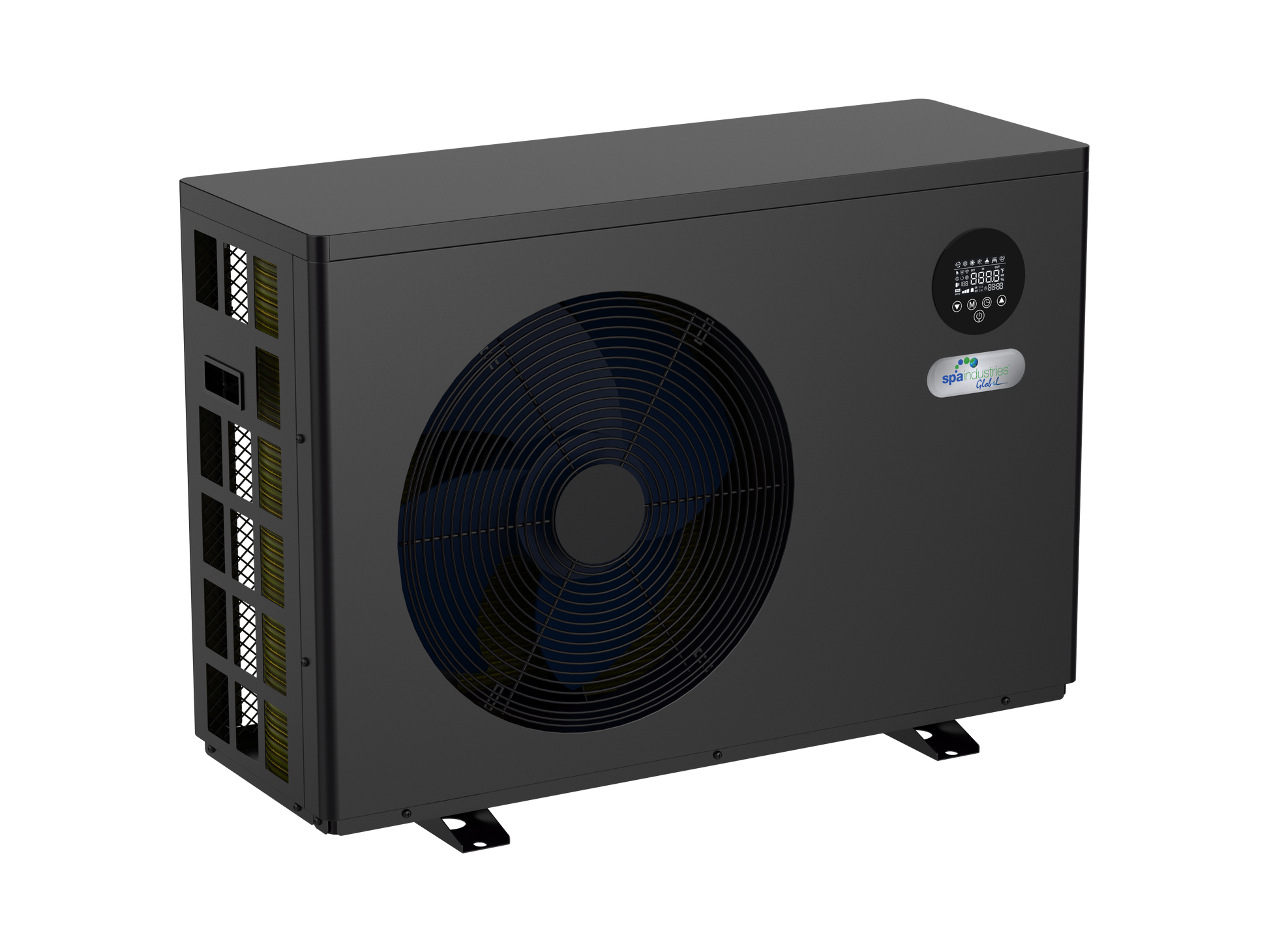

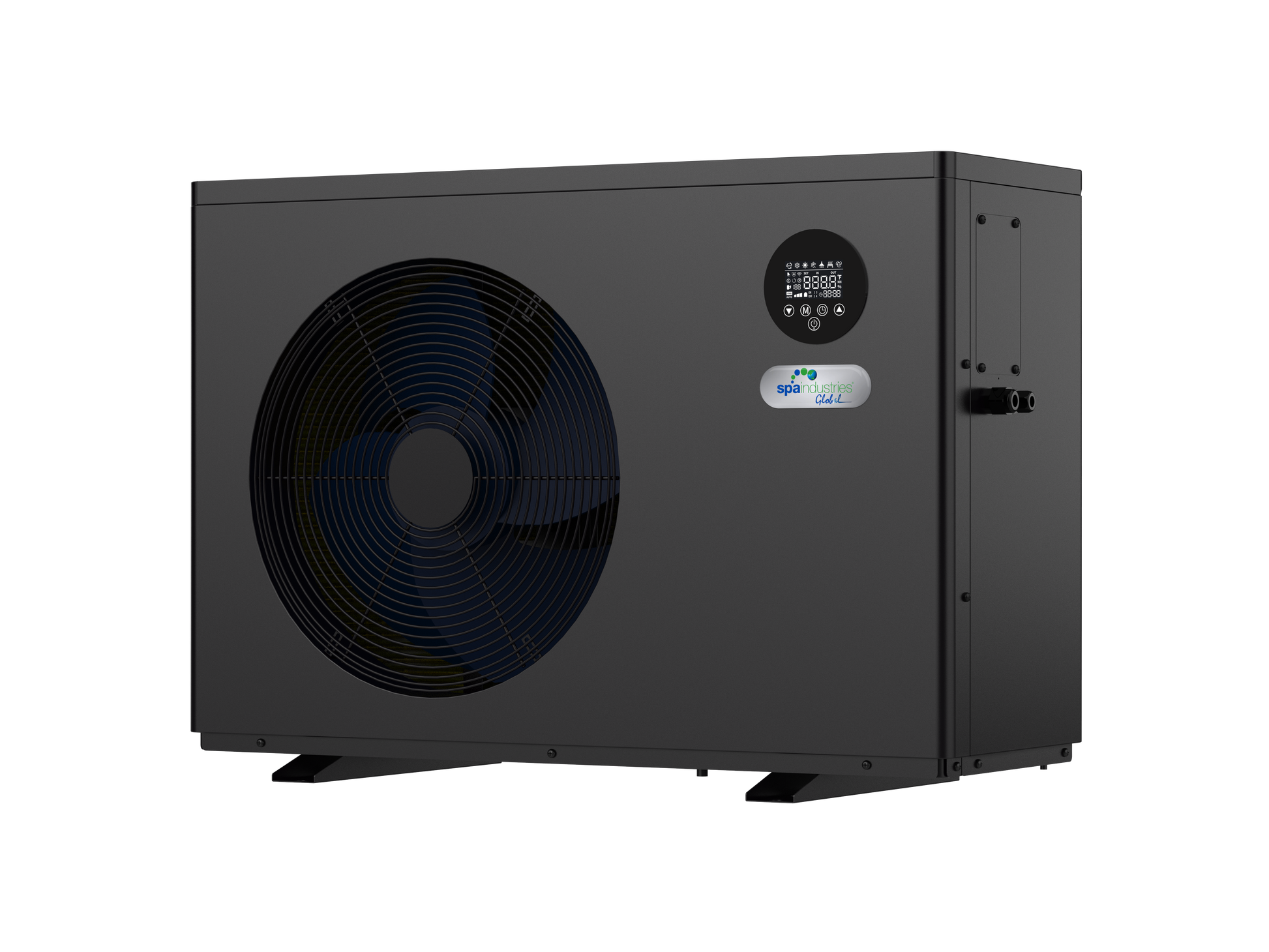

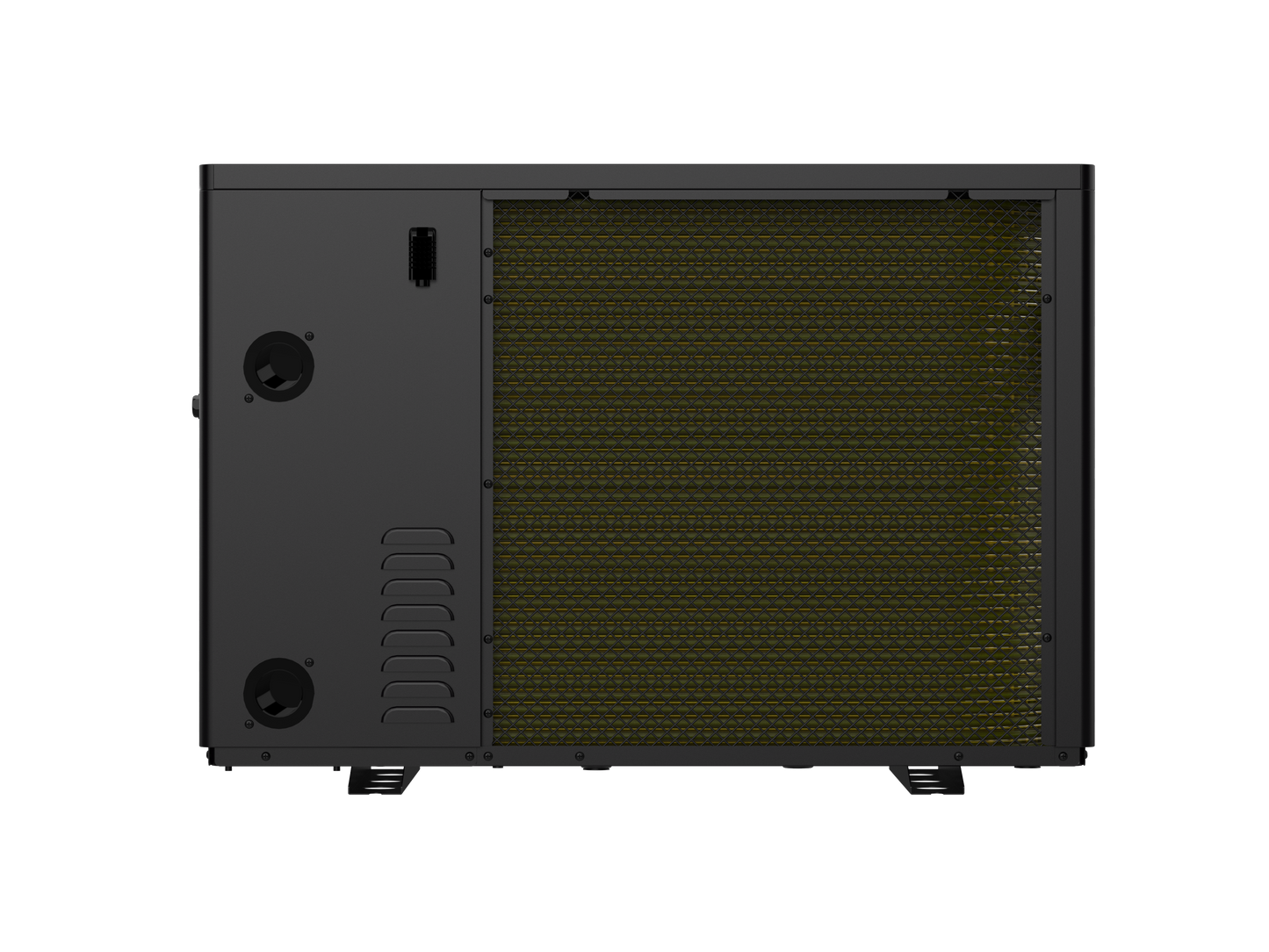

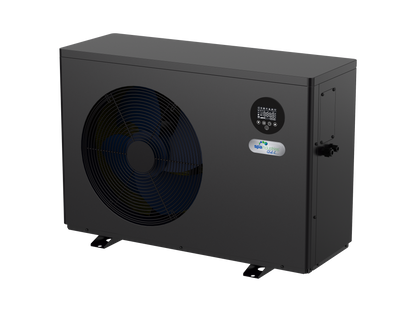

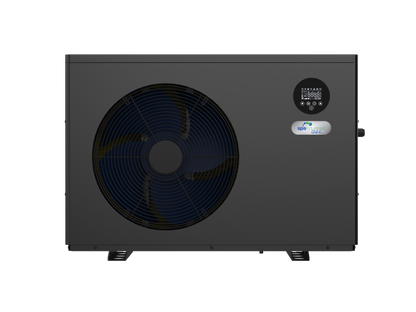

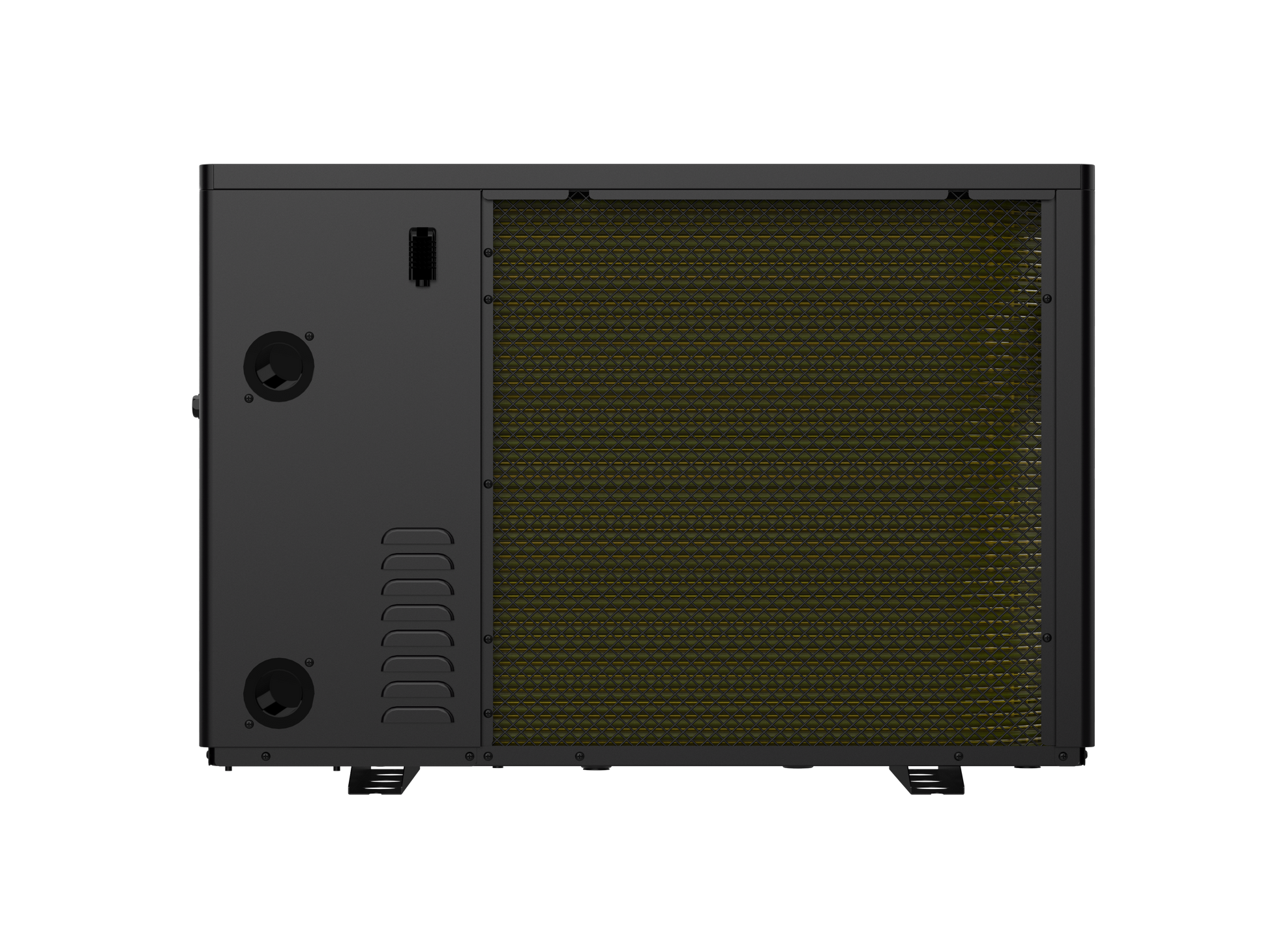

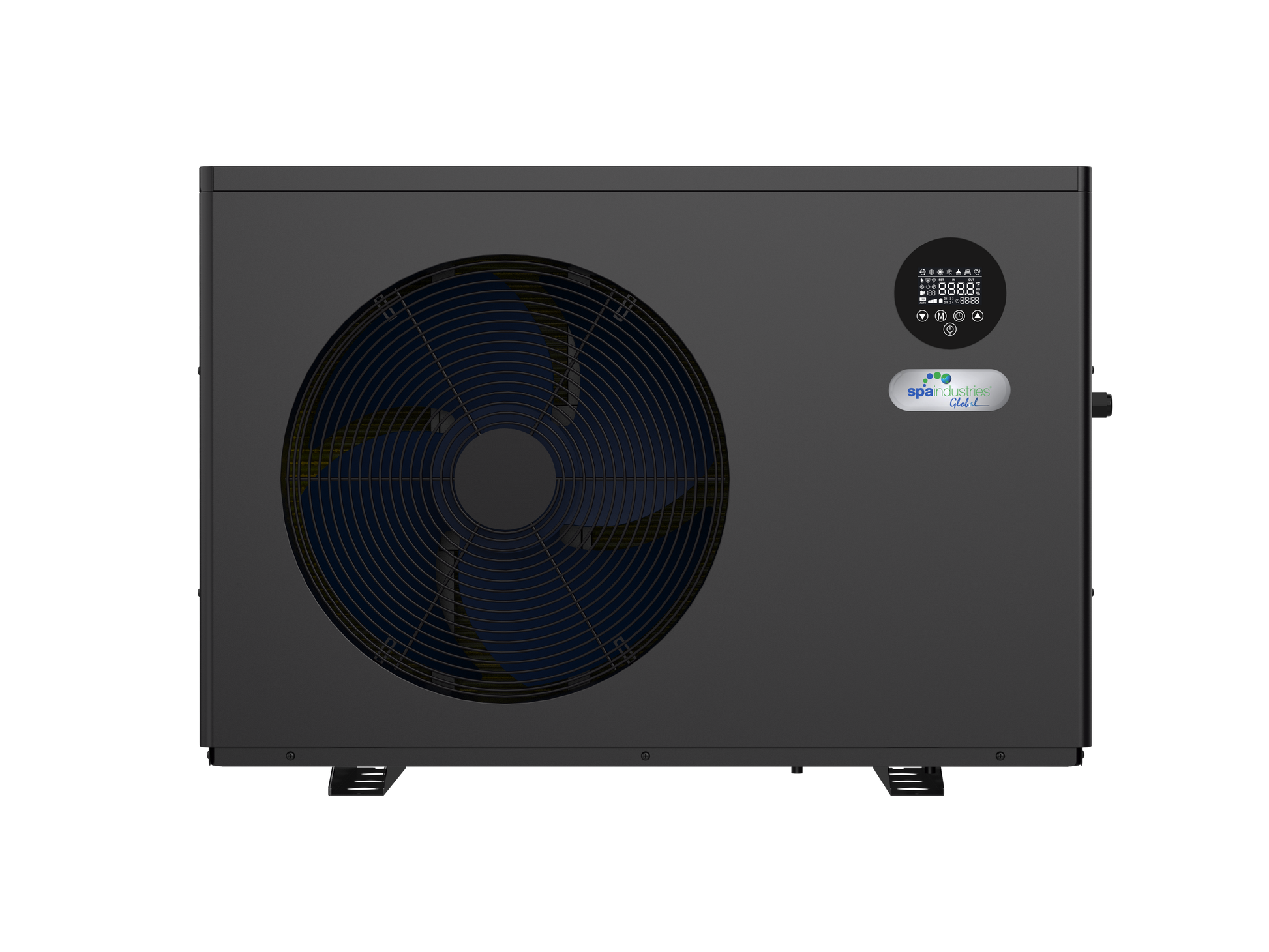

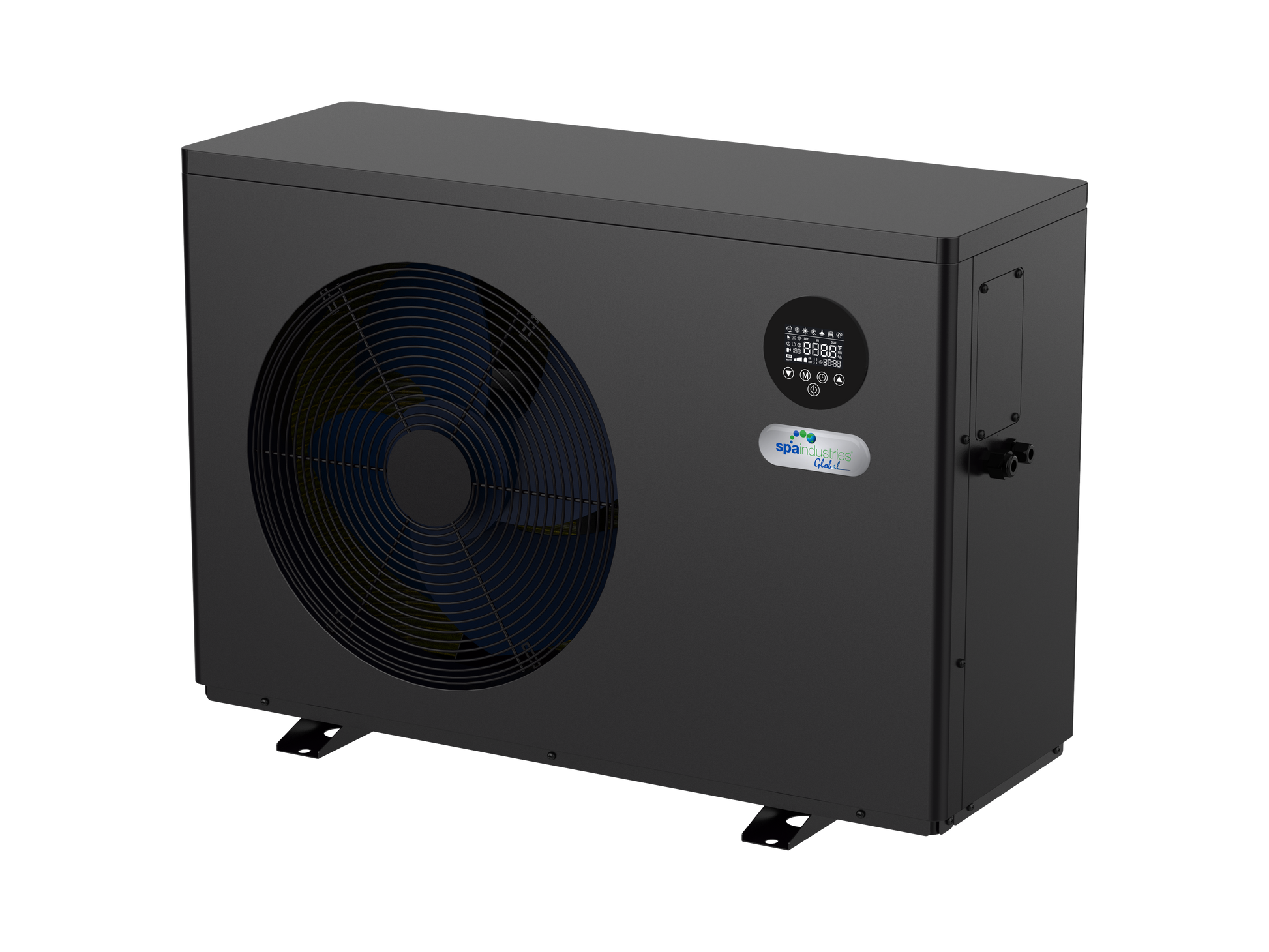

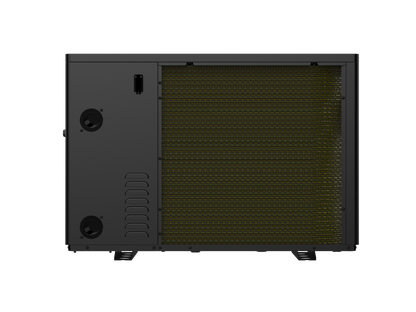

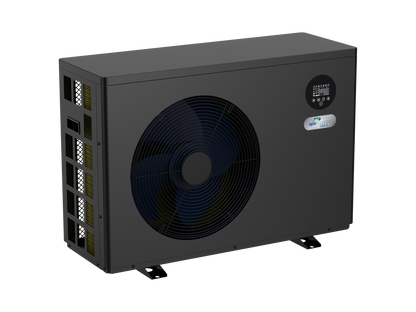

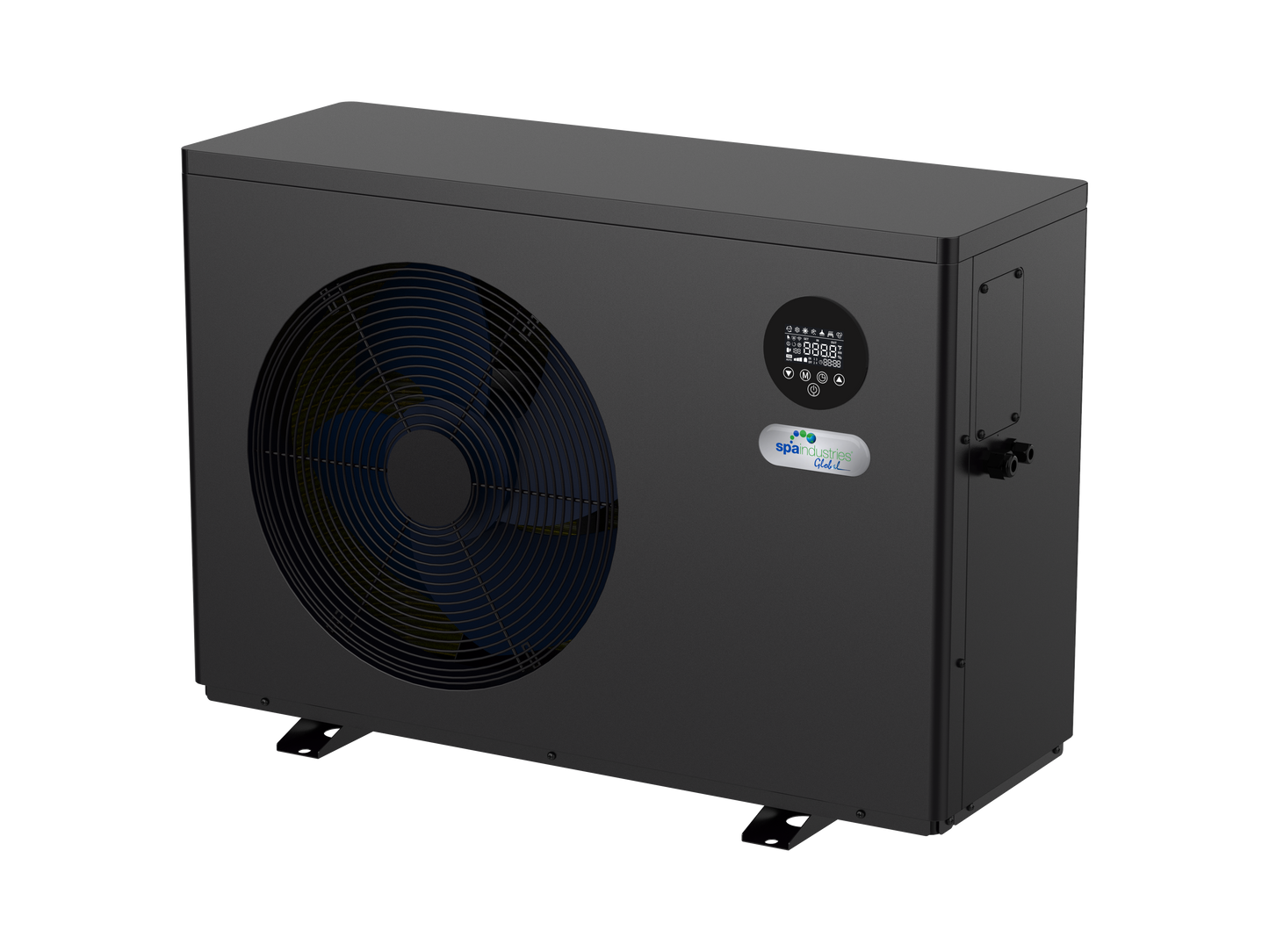

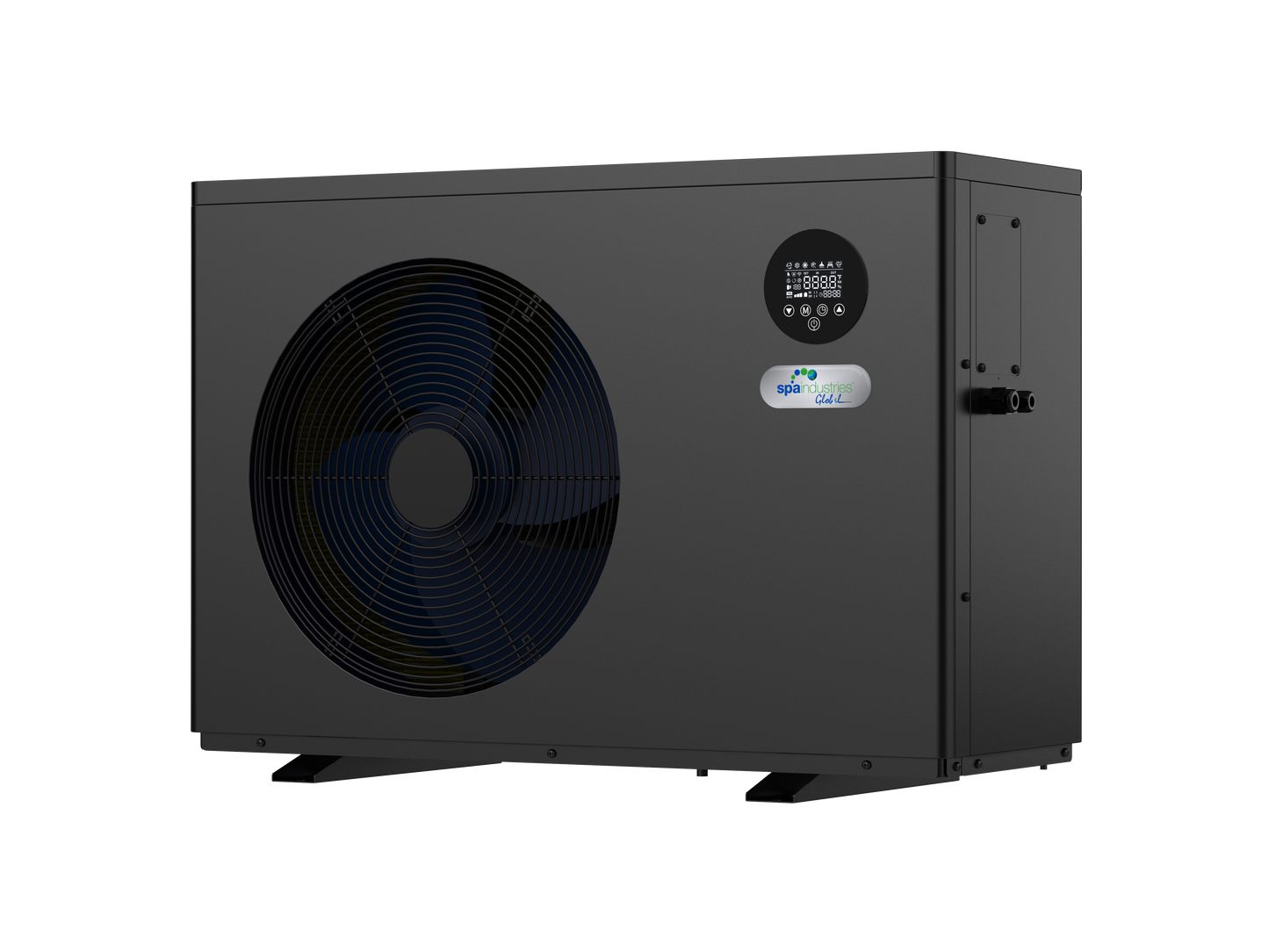

Inverter Spa Heat Pump 13KW - IPX5 | Wi-Fi R32 Pool & Spa Heater

Inverter Spa Heat Pump 13KW - IPX5 | Wi-Fi R32 Pool & Spa Heater

Product Description

Upgrade your spa or swim spa experience with the 13kW Full Inverter Spa Heat Pump, engineered for efficient year-round water temperature control. Using advanced DC inverter technology, the unit automatically adjusts compressor and fan speed to match heating demand, reducing energy consumption while maintaining a stable water temperature.

Designed for Australian and New Zealand conditions, this heat pump operates in ambient temperatures from-15°C to 43°C, making it suitable for all-season use. The high-performance R32 refrigerant system, combined with an electronic expansion valve (EEV) and titanium heat exchanger, delivers exceptional efficiency and durability, even in chlorinated or saltwater environments.

With a maximum heating capacity of 13.02kW, the unit is ideal for spas, plunge pools, and small to medium pools between 30 and 55m³. The integrated Wi-Fi connectivity allows remote temperature management from your smartphone, while the intelligent controller provides heating, cooling, automatic mode selection, timer scheduling, silent mode, and performance monitoring.

Key Features:

  • 13kW Full Inverter technology for maximum efficiency
  • Suitable for pools and spas from 30-55m³
  • Ultra-efficient COP up to 16.06 under optimal conditions
  • Heating and cooling functions
  • Operating temperature range:-15°C to 40°C
  • Premium corrosion-resistant titanium heat exchanger
  • Eco-friendly R32 refrigerant
  • Built-in Wi-Fi remote control
  • Low operating noise: 33-45 dB(A)
  • Automatic defrost function for winter operation
  • LCD wired controller with programmable timer
  • IPX5 weather-resistant outdoor design
  • Intelligent water flow, pressure, and temperature protection systems

Plumbing Connections

  • Water Connection Size: 48.3mm (1½ inch)
  • Recommended Water Flow Rate: 5.6m³/h
  • Water Pressure Drop: 17kPa

Electrical Specifications

  • Power Supply: 220-240V/ Single Phase/ 50Hz
  • Rated Power Input: 3.30kW
  • Rated Current: 14.35A
  • Recommended Supply Cable: 3G 1.5mm²
  • Electrical Protection: 30mA RCD recommended

Installation by licensed electrician required

The inverter technology continuously modulates output instead of operating at full power all the time, helping reduce running costs while extending equipment lifespan and improving comfort. Combined with a titanium heat exchanger and smart controls, this 13kW spa heat pump provides a reliable and energy-efficient heating solution for modern spa and pool owners.



Specification:

Product Description

Upgrade your spa or swim spa experience with the 13kW Full Inverter Spa Heat Pump, engineered for efficient year-round water temperature control. Using advanced DC inverter technology, the unit automatically adjusts compressor and fan speed to match heating demand, reducing energy consumption while maintaining a stable water temperature.

Designed for Australian and New Zealand conditions, this heat pump operates in ambient temperatures from-15°C to 43°C, making it suitable for all-season use. The high-performance R32 refrigerant system, combined with an electronic expansion valve (EEV) and titanium heat exchanger, delivers exceptional efficiency and durability, even in chlorinated or saltwater environments.

With a maximum heating capacity of 13.02kW, the unit is ideal for spas, plunge pools, and small to medium pools between 30 and 55m³. The integrated Wi-Fi connectivity allows remote temperature management from your smartphone, while the intelligent controller provides heating, cooling, automatic mode selection, timer scheduling, silent mode, and performance monitoring.

Key Features:

  • 13kW Full Inverter technology for maximum efficiency
  • Suitable for pools and spas from 30-55m³
  • Ultra-efficient COP up to 16.06 under optimal conditions
  • Heating and cooling functions
  • Operating temperature range:-15°C to 40°C
  • Premium corrosion-resistant titanium heat exchanger
  • Eco-friendly R32 refrigerant
  • Built-in Wi-Fi remote control
  • Low operating noise: 33-45 dB(A)
  • Automatic defrost function for winter operation
  • LCD wired controller with programmable timer
  • IPX5 weather-resistant outdoor design
  • Intelligent water flow, pressure, and temperature protection systems

Plumbing Connections

  • Water Connection Size: 48.3mm (1½ inch)
  • Recommended Water Flow Rate: 5.6m³/h
  • Water Pressure Drop: 17kPa

Electrical Specifications

  • Power Supply: 220-240V/ Single Phase/ 50Hz
  • Rated Power Input: 3.30kW
  • Rated Current: 14.35A
  • Recommended Supply Cable: 3G 1.5mm²
  • Electrical Protection: 30mA RCD recommended

Installation by licensed electrician required

The inverter technology continuously modulates output instead of operating at full power all the time, helping reduce running costs while extending equipment lifespan and improving comfort. Combined with a titanium heat exchanger and smart controls, this 13kW spa heat pump provides a reliable and energy-efficient heating solution for modern spa and pool owners.
