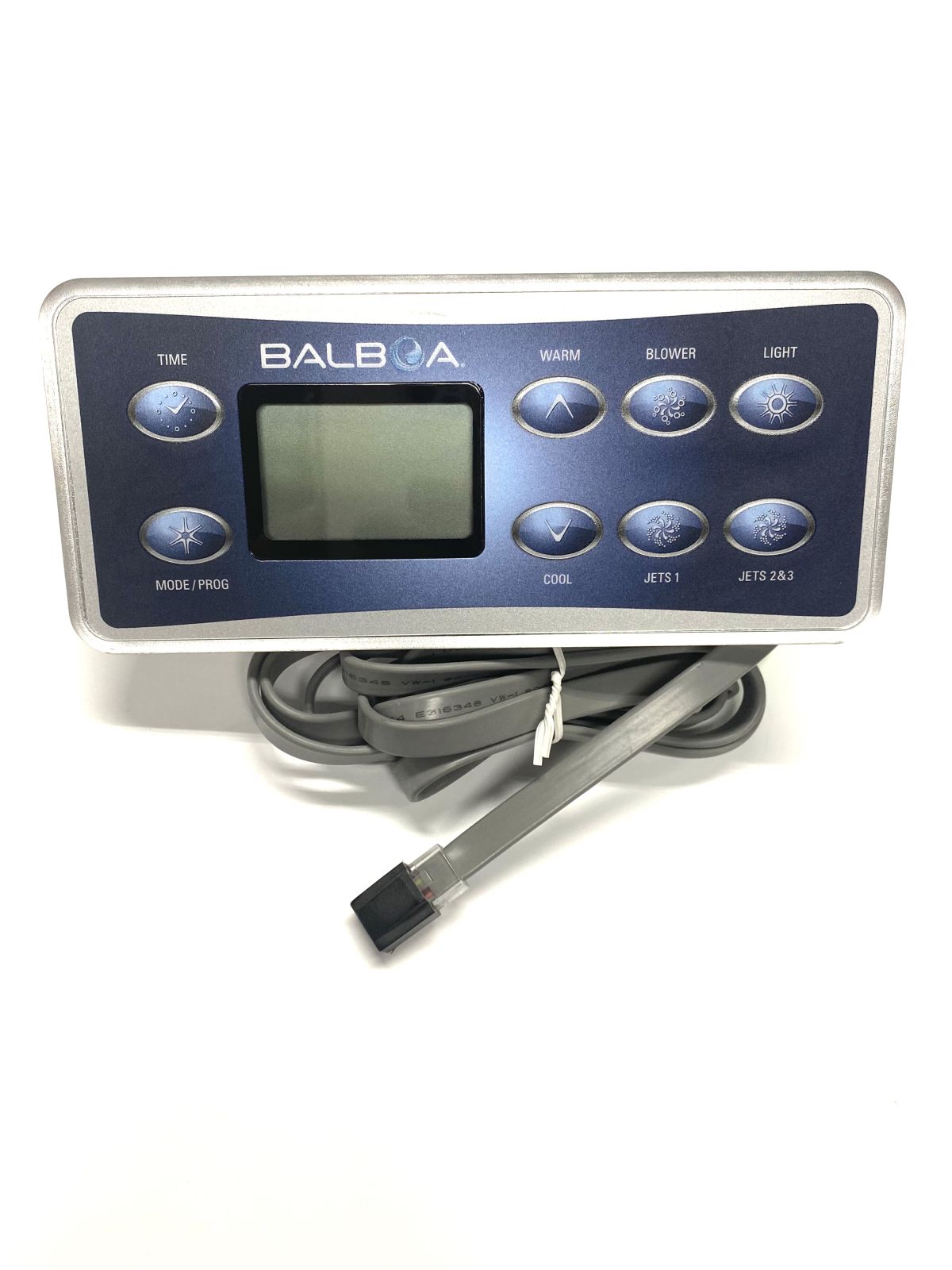

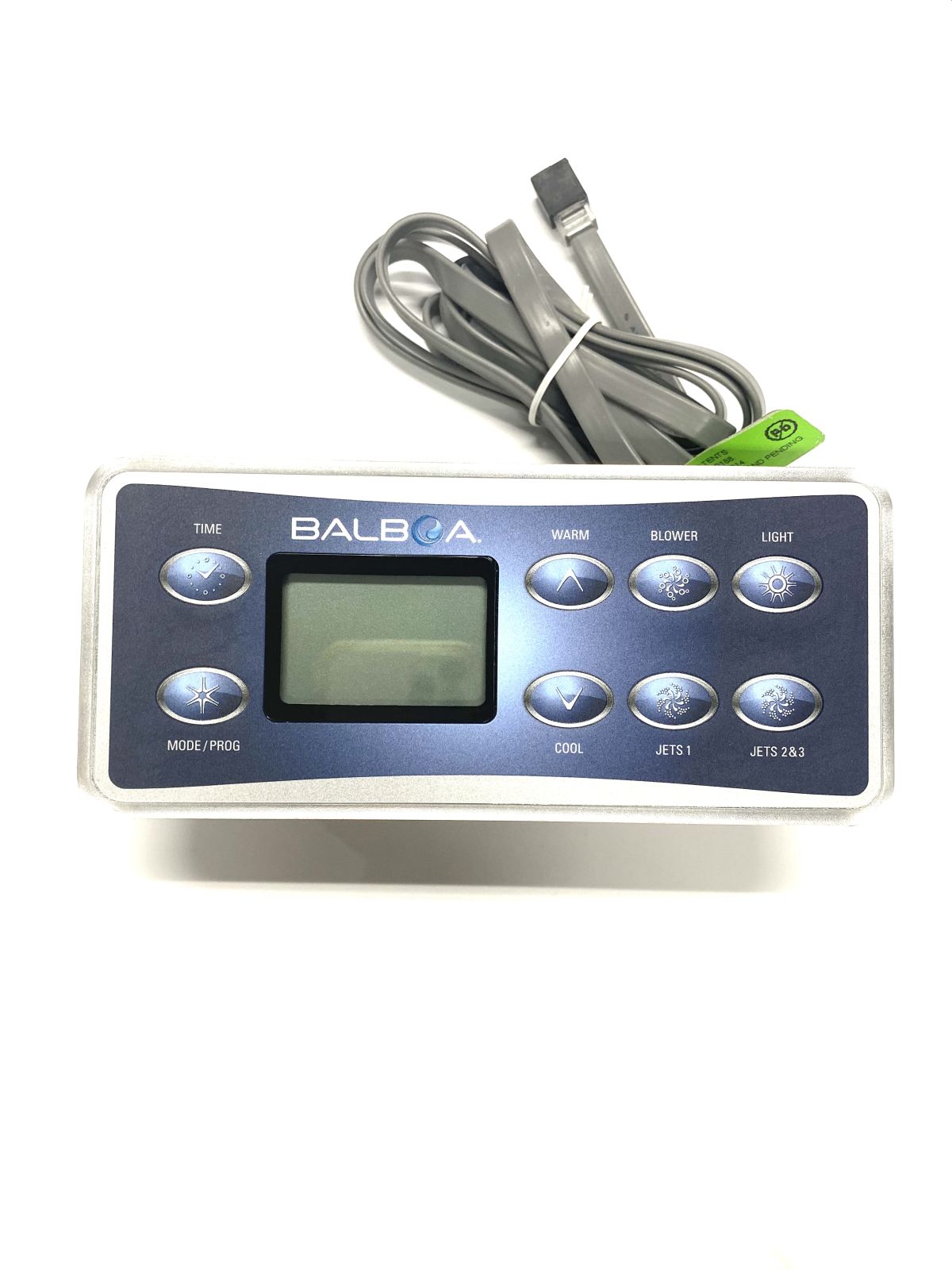

Control Panel VL801D with Overlay 3 Pumps

Technical Specifications Specification ?ÿ ?ÿ

Detail Model Number ?ÿ ?ÿVL801D

Part Number ?ÿ ?ÿ54121 (also 54121-01)

Manufacturer ?ÿ ?ÿBalboa Water Group Panel

Dimensions ?ÿ ?ÿ7.4- x 3.3- (188 mm x 84 mm)

Hole/Cutout Size Required ?ÿ ?ÿApproximately 162 mm x 58 mm (varies slightly by source) Display Type ?ÿ ?ÿLCD (Liquid Crystal Display)

Button Count ?ÿ ?ÿ8 Connection Type ?ÿ ?ÿ8-Pin Phone Plug (RJ45 style ethernet network cabling plug)

Cable Length ?ÿ ?ÿ7 feet (approx. 2 meters) Overlay ?ÿ ?ÿ

System Compatibility ?ÿ ?ÿBalboa Serial Deluxe Control Systems with codes ending in DZ (e.g., GS501DZ, GS510DZ, GS520DZ, GS523DZ)

Button Functions (typical overlay layout)?ÿ

The specific functions depend on the overlay used, but typically include: - ?ÿ ?ÿTime/Mode (left side of display) - ?ÿ ?ÿWarm/Cool (temperature control) - ?ÿ ?ÿBlower - ?ÿ ?ÿLight - ?ÿ ?ÿJets 1 (Pump 1) - ?ÿ ?ÿJets 2 (Pump 2
