Aquatic AV AQƒ??PSBƒ??1 13V DC 5A Waterproof Power Supply ƒ?? IPX5

Product Description?ÿ

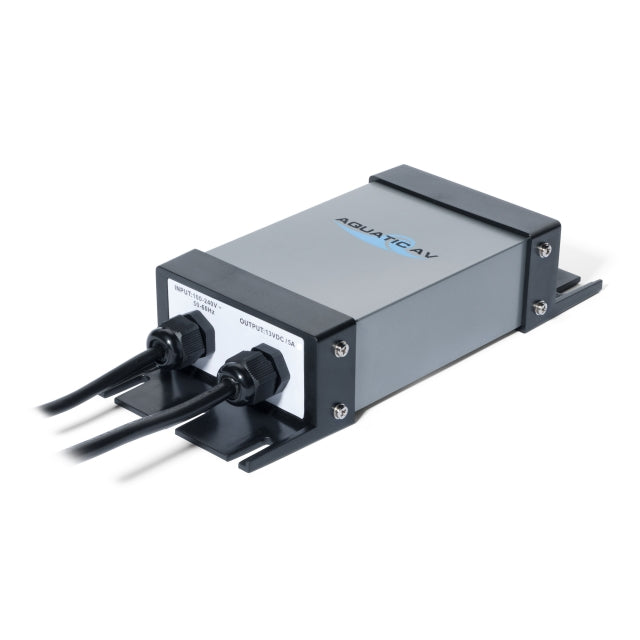

The Aquatic AV AQ-PSB-1 Constant Voltage Power Supply is a regulated switching-mode transformer designed to deliver a stable 13V DC output at up to 5 amps, making it ideal for spa audio systems, marine stereos, poolside electronics, and outdoor AV installations.

Built for harsh environments, the AQ-PSB-1 features an IPx5 water-resistant enclosure, protecting it against splashing water and moisture commonly found in spa and marine applications. It supports automatic dual-voltage input (100-240V AC, 50/60Hz), allowing use worldwide without manual voltage selection.

This PSU incorporates multiple safety protections, including short-circuit, over-voltage, over-current, and over-temperature protection, ensuring long-term reliability and safe operation. Output is delivered via female spade connectors (red +13V DC, black negative), making it compatible with many Aquatic AV, spa, and control systems.

The AQ-PSB-1 is widely used by spa manufacturers and is certified to major international safety standards, ensuring dependable performance in demanding wet-area environments.?ÿ

Technical Specifications

• Brand: Aquatic AV
• Model: AQ-PSB-1
• Output Voltage: 13V DC (regulated, constant voltage)
• Maximum Output Current: 5A
• Input Voltage: 100-240V AC, auto-sensing
• Input Frequency: 50 / 60 Hz
• Protection Rating: IPx5 (water-resistant)
• Power Supply Type: Regulated switching-mode
• Efficiency: --87%
• Protections: Short circuit, over-voltage, over-current, over-temperature

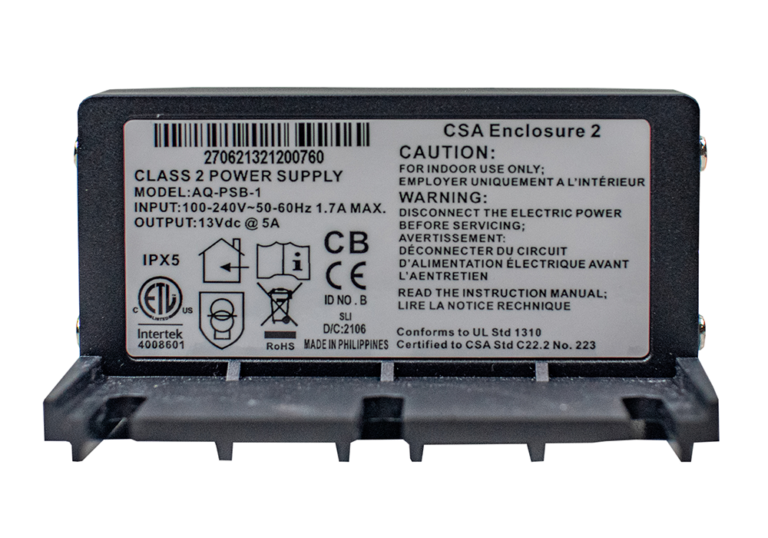

• Certifications: UL1563 Class 2, UL1310, CSA, CE
• Dimensions: approx. 234-??-110-??-49-mm
• Applications: Spa audio systems, marine electronics, pool & outdoor AV
