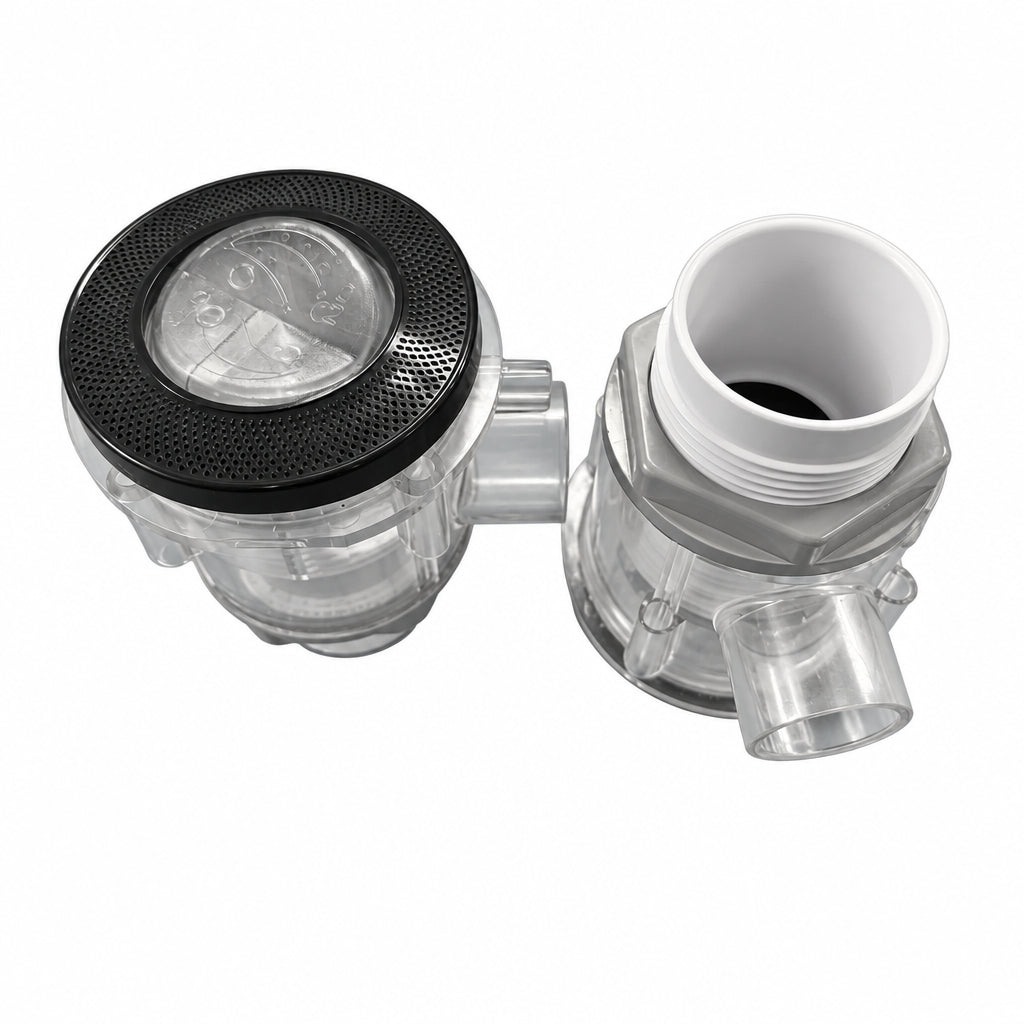

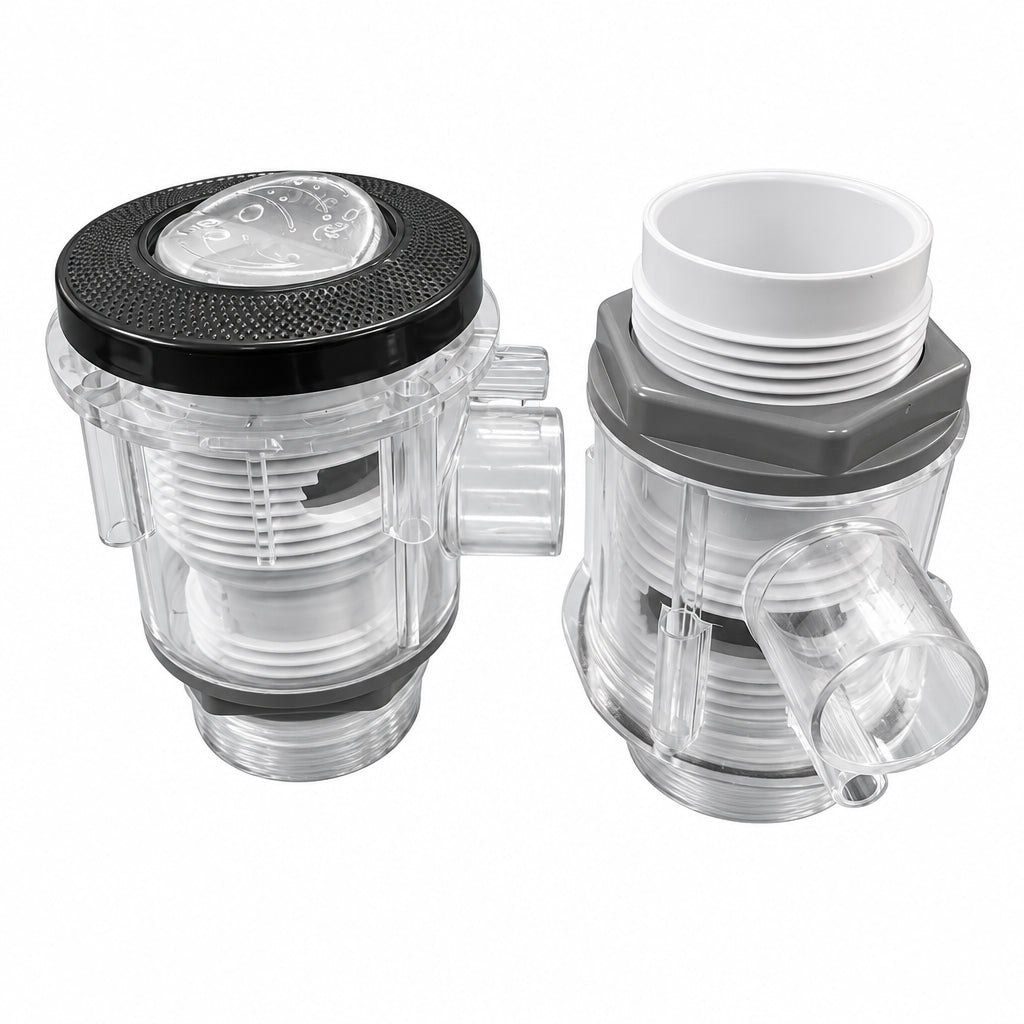

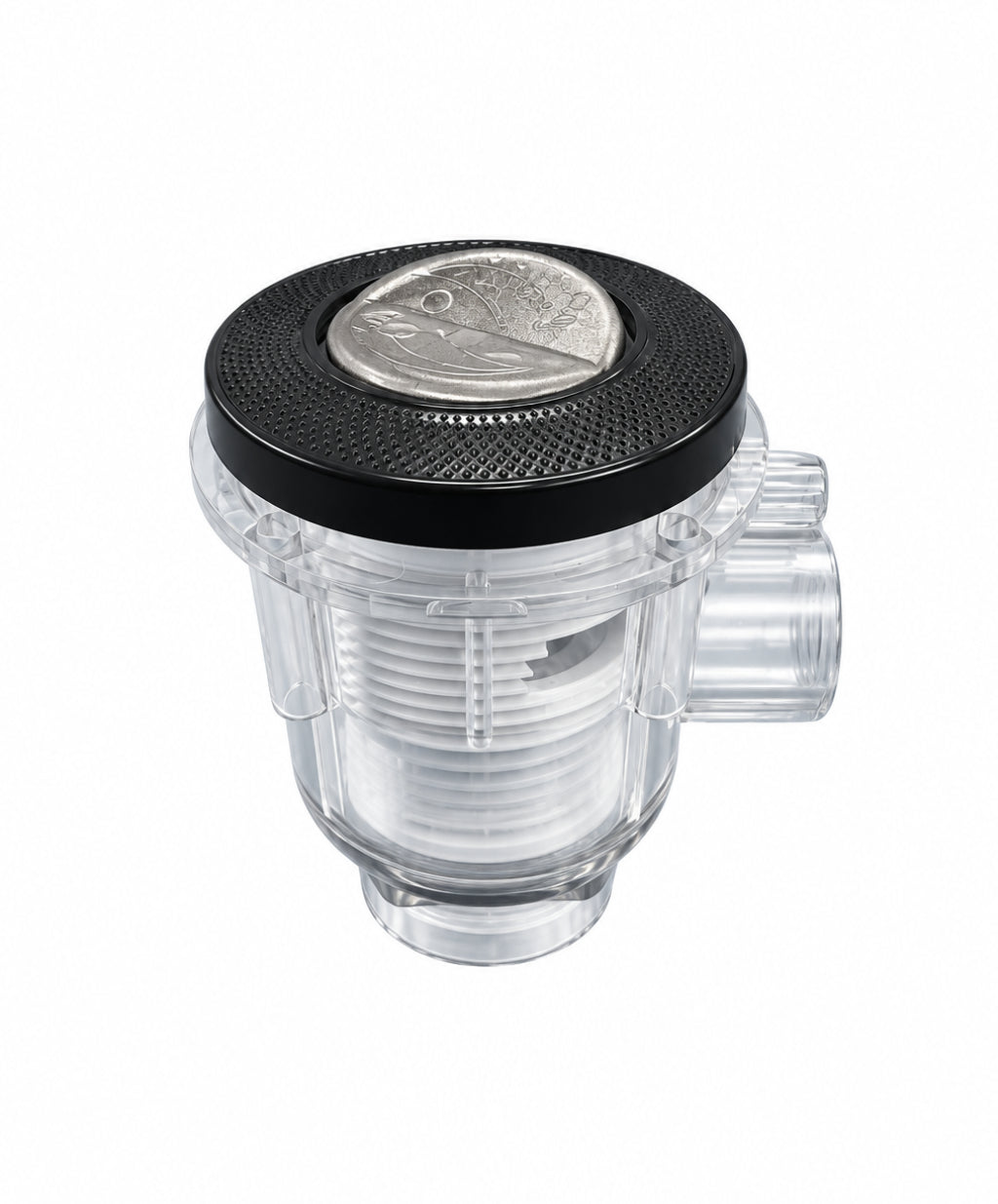

Balboa Air Control Toggle Lit Coal Grey 13785COALG-CL

Product Description

The Balboa Air Control Toggle Lit Charcoal Grey 13785COALG-CL is a genuine Balboa illuminated air control assembly designed to regulate the amount of air mixed with water flowing through spa jets. By adjusting the air-to-water ratio, users can customize jet pressure and massage intensity, delivering a more comfortable and personalized hydrotherapy experience.

Featuring a modern Charcoal Grey finish and a clear illuminated center cap, this premium air control enhances both the appearance and functionality of your spa. The transparent center section allows LED lighting from within the spa cabinet or shell to shine through, creating an attractive illuminated effect during evening operation.

Manufactured from durable, UV-stabilised and chemical-resistant spa-grade materials, the Balboa 13785COALG-CL is engineered to withstand harsh spa environments while providing smooth, reliable performance and long service life. The easy-to-operate toggle mechanism allows precise airflow adjustment and makes this assembly an ideal replacement for worn, damaged, or ageing spa air controls.

This complete replacement kit includes the decorative illuminated cap, valve mechanism, outer body, locking nut, sealing gaskets and associated components required for installation.

Technical Specifications

• Manufacturer: Balboa Water Group
• Part Number: 13785COALG-CL
• Product Type: Illuminated Spa Air Control Assembly
• Style: Toggle Air Control
• Colour: Charcoal Grey
• Function: Regulates air flow to spa jets
• LED Compatible: Yes
• Switch Type: Toggle Control
• Mounting Location: Topside spa shell
• Material: UV and chemical-resistant spa-grade plastic
• Application: Hot tubs and spas fitted with Balboa air control systems
• Suitability: Cyclone Spas 2023 models and other compatible Balboa-equipped spas

Dimensions

• Top Cap Outside Diameter: 60mm
• Overall Valve Height: 83mm
• Overall Body Width: 72mm
• Side Connection Inner Diameter: 21.5mm
• Bottom Connection Inner Diameter: 33.3mm
• Side Light Port Inner Diameter: 5.2mm

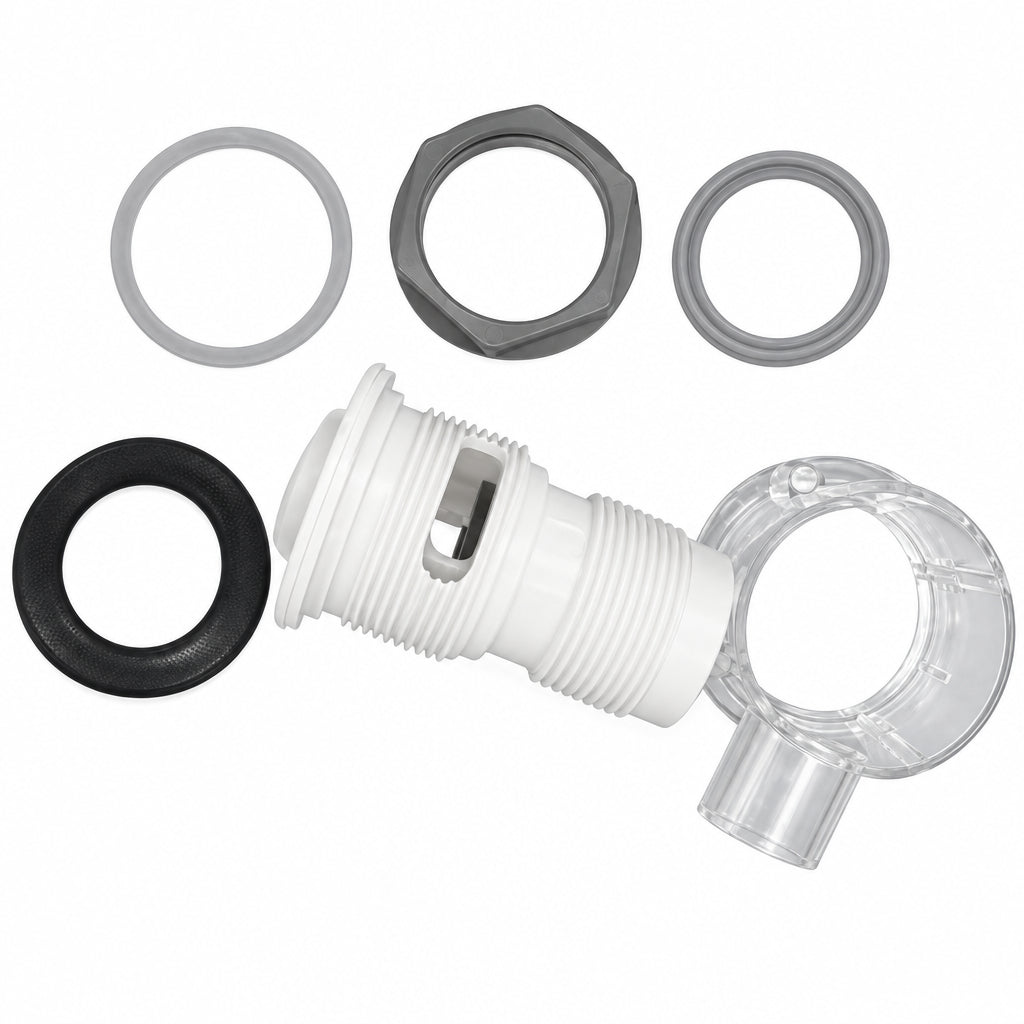

Kit Contents

This complete assembly includes 6parts as follows:

• 1 × Illuminated Decorative Cap (Hubcap)
• 1 × Air Control Valve Mechanism Body
• 1 × Outer Body
• 1 × Locking Nut
• 2 × Sealing Gaskets


Key Features

• Genuine Balboa replacement component
• Illuminated center cap for enhanced spa aesthetics
• Toggle-style airflow adjustment
• Allows precise control of jet air injection
• Stylish charcoal grey finish
• Compatible with LED-lit spa systems
• Durable UV and chemical-resistant construction
• Complete assembly supplied with mounting hardware and seals
• Ideal replacement for worn or faulty spa air controls
• Designed for reliable long-term performance in demanding spa environments

Balboa Part Number: 13785COALG-CL
Condition: Brand New Genuine Balboa Part
Common Application: Air control adjustment for Balboa-equipped spas and hot tubs.
