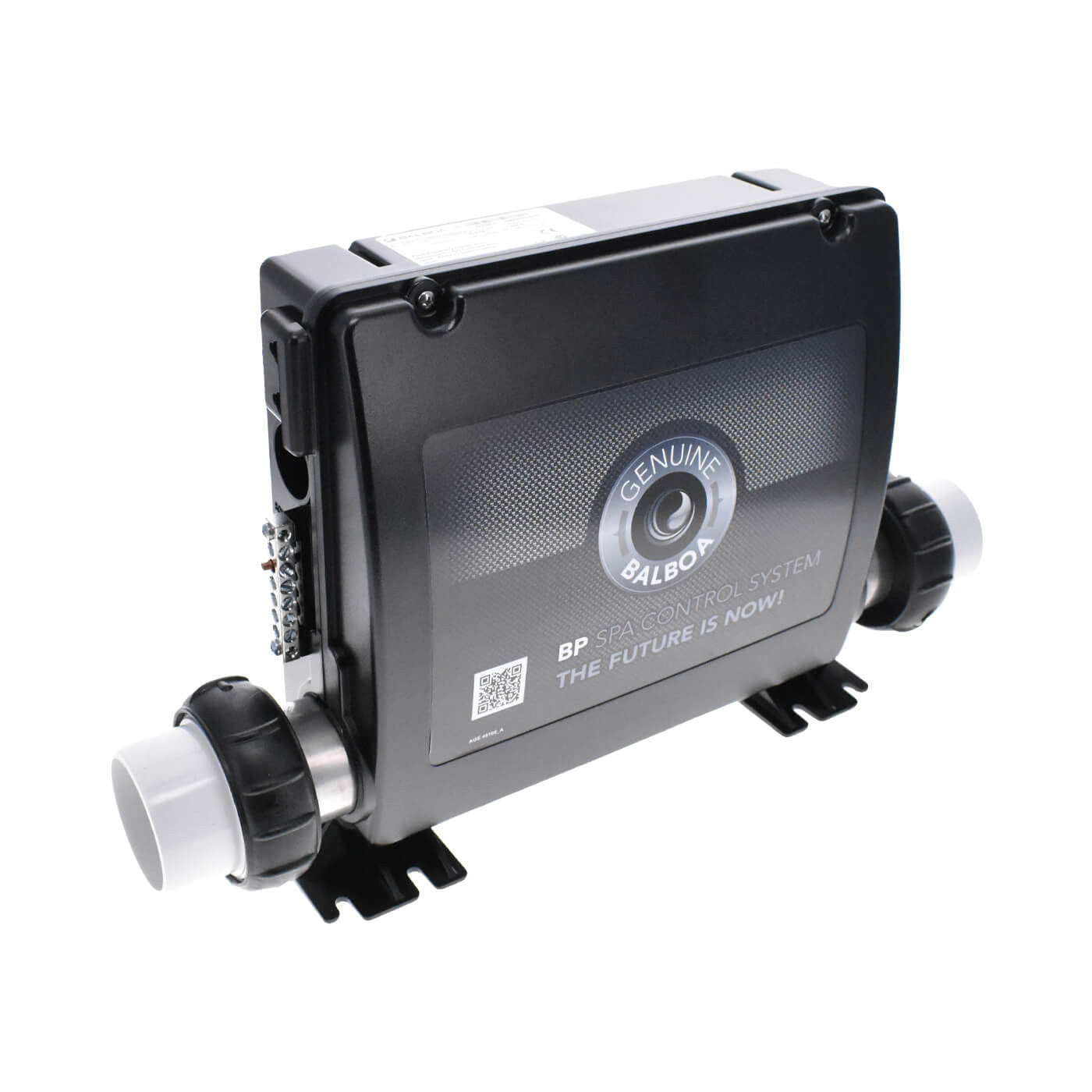

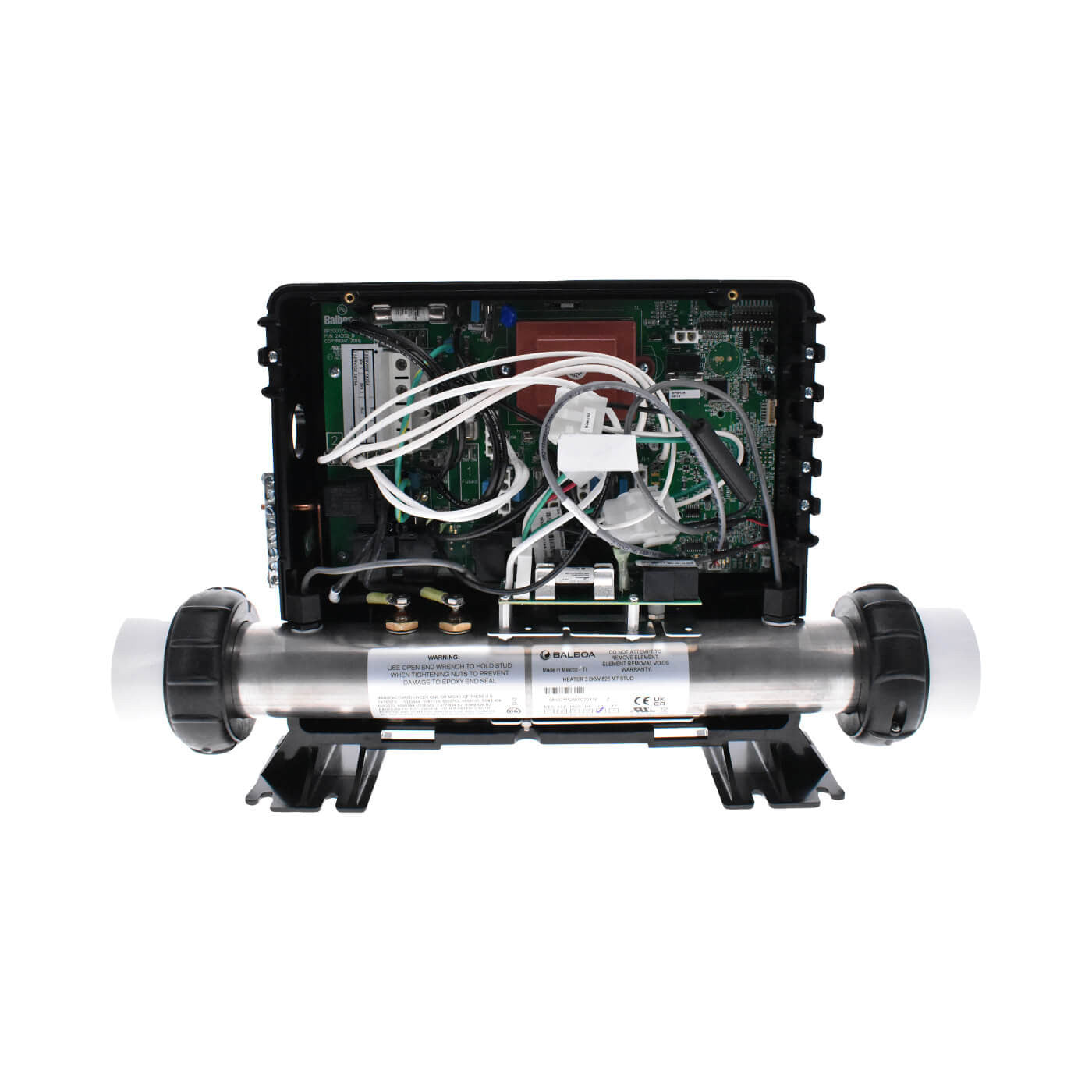

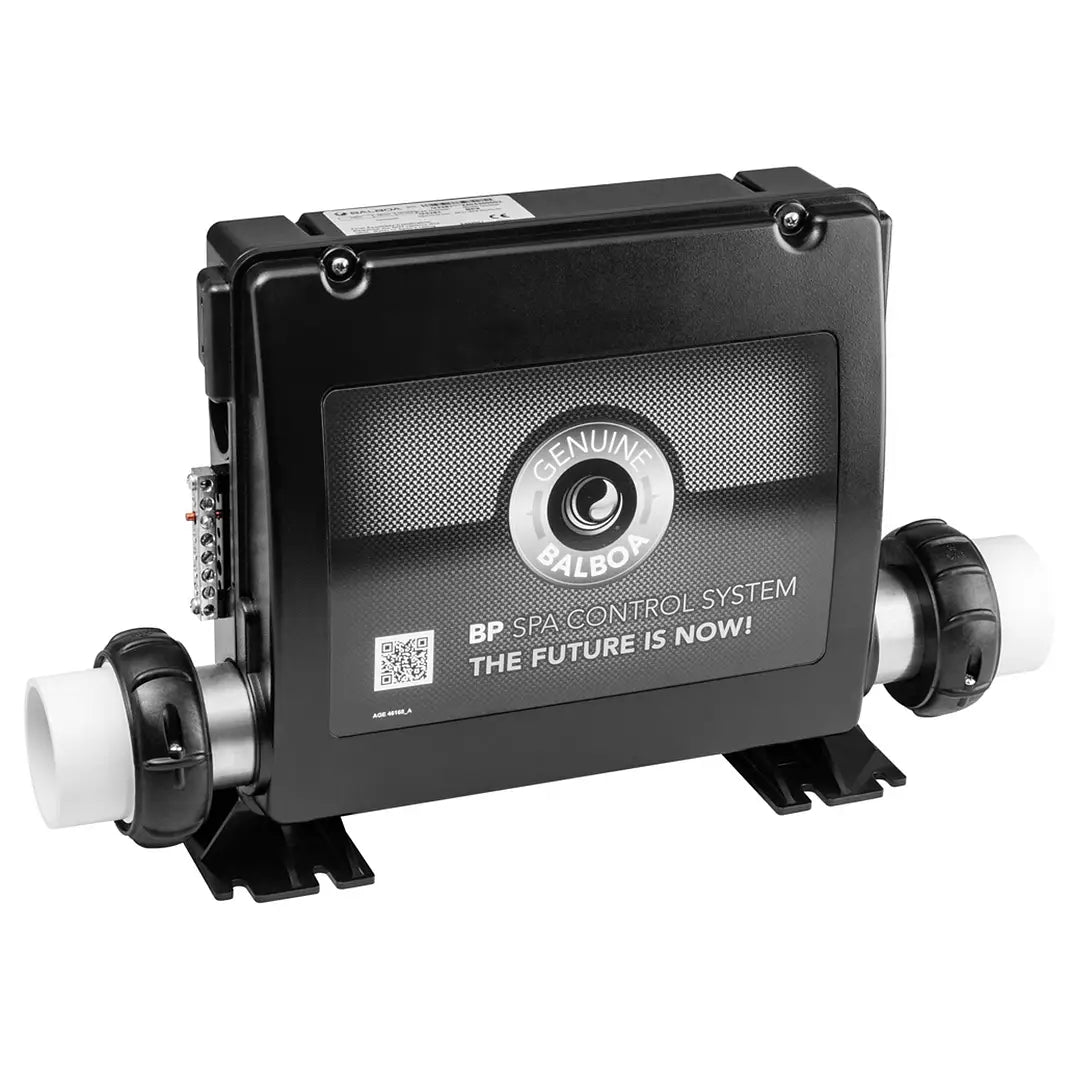

Balboa BP8 Controller-G3381

Balboa BP8 Retrofit Spa Pack (Complete with Inline Heater) - The most "universal" spa control system on the market.

Replaces all BP series controllers such as BP601G1, BP6013G1, BP6013G2, BP6013G3, Dominator, and SIBP601X.

Additionally, it can be used to replace the GS and GL series (with a new touchpad), as well as other models like Revolution, Colossus, and Viper.

This versatile retrofit pack is designed to replace a wide range of Spa control systems. It offers 18 different setup configurations.

The BP8 controller consists of 18 setups making this controller the perfect retro fit for nearly all Balboa systems. From a 2 speed pump only to a Circ, 3 boost pump and a blower the BP8 controller covers nearly every balboa system.

Topside Panel Compatibility:
Compatible with Balboa TP-series touchpads (some touchpad options may depend on output configuration), including:

TP200, TP400, TP500, TP600, TP700, TP740, TP800 (Colour Touchscreen), All SpaTouch touchscreen Panels, Spatouch Mini, Spatouch 3-5", Spatouch 3-7", Spatouch 4

BP8 240volt Output Sockets
CPUMP: Circ pump (must have a circ pump if pump 1 single speed)
PUMP 1: 1Spd Pump or 2Spd Pump
PUMP 2: 1Spd Pump
PUMP 3: 1Spd Pump
Blower: 1Spd Blower
AV / C8Z: This outlet has a constant 240volts and is not switchable
O3 / UV: This outlet is only to be used with an ozone system

BP8 Low Voltage
2 x Touchpad Outlets (can be used for Wi-Fi, Clim8zone)
1 x Light

BP8 Features
*In heater temp sensors
*Max Temp 40 degrees
*Adjustable Filtration
*Heater Modes (Ready & Rest)
*Wifi Interface
*Programmable Load Shedding
