Balboa Control Panel ML900 No Overlay-(52797-04)
Balboa Control Panel ML900 No Overlay-(52797-04)
Product Description
The Balboa Control Panel ML900 (52797-04) is a premium 12-button topside control panel designed for use with Balboa EL/GL and Mach 3 control systems. This model ships without an overlay, making it compatible with multiple button-layout overlays depending on your spa-s configuration.
Featuring an oval design, durable construction, and an 8-pin Molex connector, the ML900 allows precise control of spa functions such as temperature, jets, lighting, modes, and display inversion. It includes a 6-foot cord.
This control panel is widely used across many spa brands including Catalina Spas, QCA Spas, and others, and is engineered for reliability and ease of installation.
Can be use as replacement of the ML700 which is now obsolete.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Balboa Water Group |
| Model | ML900 |
| Part Number | 52797-04 |
| Product Type | Spa Topside Control Panel |
| Display | Backlit LCD |
| Buttons | 12 Buttons |
| Connector | 8-Pin Molex |
| Panel Dimensions | 11-5/8" x 3-1/8" (295 x 79 mm) |

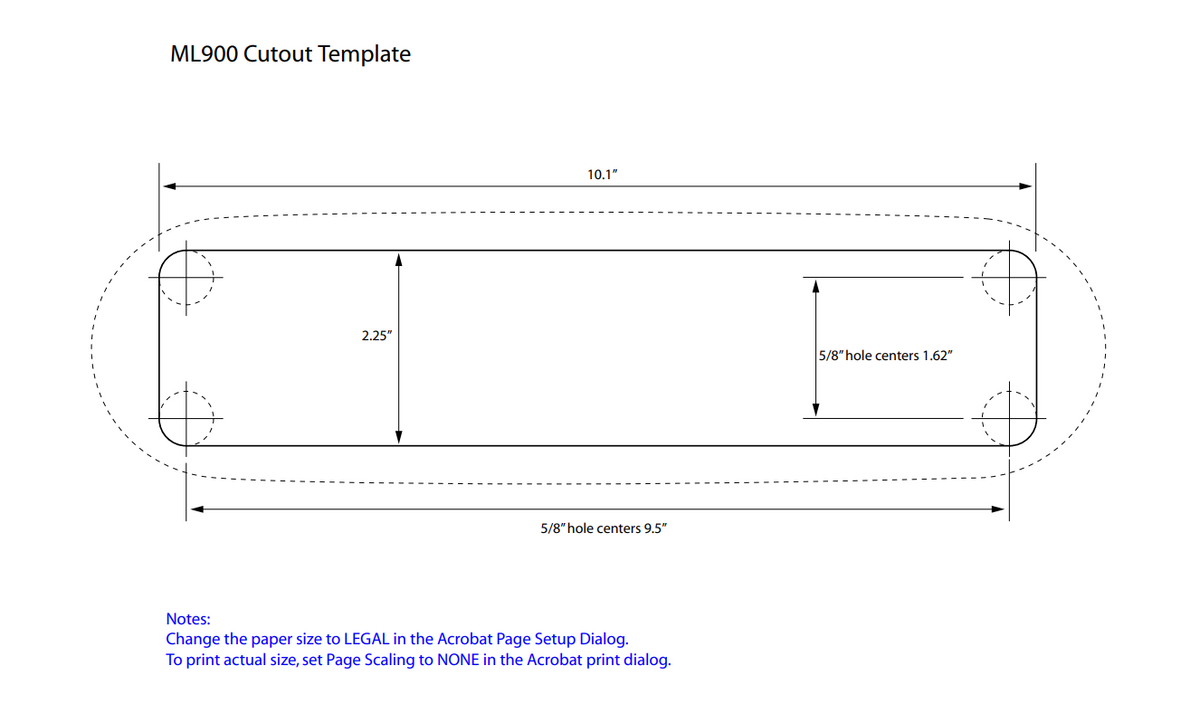

| Cut-Out Size | 10.1" x 2.25" (256.5 x 57.2 mm) |
| Mounting Hole Centers | 9.5" (241.3 mm) |
| Compatible Systems | Balboa GL84P, GL2000 M3, GL8000 M3, GL2001 M3, EL Series, Mach 3 Systems |
| Functions | Temperature, Jets, Lighting, Programming, Auxiliary Features |
Product Description
The Balboa Control Panel ML900 (52797-04) is a premium 12-button topside control panel designed for use with Balboa EL/GL and Mach 3 control systems. This model ships without an overlay, making it compatible with multiple button-layout overlays depending on your spa-s configuration.
Featuring an oval design, durable construction, and an 8-pin Molex connector, the ML900 allows precise control of spa functions such as temperature, jets, lighting, modes, and display inversion. It includes a 6-foot cord.
This control panel is widely used across many spa brands including Catalina Spas, QCA Spas, and others, and is engineered for reliability and ease of installation.
Can be use as replacement of the ML700 which is now obsolete.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Balboa Water Group |
| Model | ML900 |
| Part Number | 52797-04 |
| Product Type | Spa Topside Control Panel |
| Display | Backlit LCD |
| Buttons | 12 Buttons |
| Connector | 8-Pin Molex |
| Panel Dimensions | 11-5/8" x 3-1/8" (295 x 79 mm) |
| Cut-Out Size | 10.1" x 2.25" (256.5 x 57.2 mm) |
| Mounting Hole Centers | 9.5" (241.3 mm) |
| Compatible Systems | Balboa GL84P, GL2000 M3, GL8000 M3, GL2001 M3, EL Series, Mach 3 Systems |
| Functions | Temperature, Jets, Lighting, Programming, Auxiliary Features |
