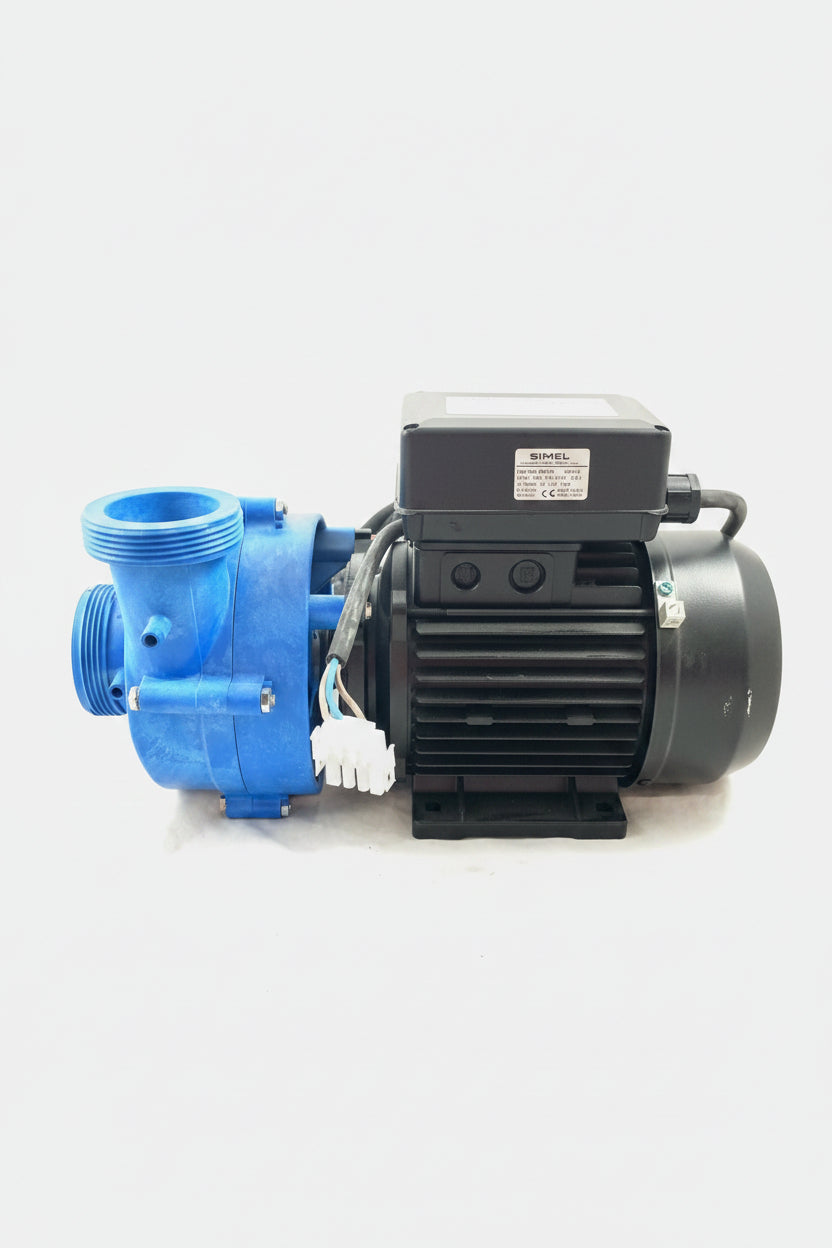

Balboa Pump 4.0HP 2 Speed 50Hz 3m AMP Lead Blue 1023033-2

Product Description

The Balboa Pump 4.0HP 2 Speed 50Hz 3m AMP Lead Blue 1023033-2 is a high-performance spa booster pump engineered to provide powerful water circulation and hydrotherapy performance in portable spas and hot tubs. Designed for reliability and energy efficiency, this genuine Balboa pump delivers strong water flow on high speed while offering quieter, lower-energy operation on low speed. It is commonly used as a primary jet pump in premium spa systems.

Built on Balboa's renowned Ultimax platform, this pump is designed for flexibility, performance, and long service life. The robust motor and wet end assembly are engineered to deliver consistent operation under demanding spa conditions, including prolonged exposure to heat, moisture, and spa chemicals.

Supplied with a 3-metre AMP plug lead, the pump offers straightforward installation into compatible Balboa, SpaNET, Davey, LX and other spa systems using AMP-style electrical connections. It is an ideal replacement for ageing, noisy, leaking, or underperforming spa pumps.

Technical Specifications

• Part Number: 1023033-2
• Pump Type: Dual Speed Spa Booster Pump
• Motor Power: 4.0HP (4HPR equivalent wet end rating)
• Frequency: 50Hz
• Voltage: 230V
• Lead Length: 3 metres
• Plug Type: AMP Plug
• Speed Settings: 2 Speed
• Power Consumption: Approx. 1950W
• Union Size: 50mm
• Approximate Dimensions:
  • Length: 394mm
  • Width: 168mm
  • Height: 197mm
• Suitable for spa jet and hydrotherapy systems


Key Features

• Genuine Balboa replacement pump
• Powerful dual-speed operation
• High-flow hydrotherapy performance
• Energy-efficient low-speed circulation mode
• 3m AMP lead for easier installation
• Durable, chemical-resistant construction
• Quiet and reliable operation
• Suitable for many Balboa-equipped spas and hot tubs
• Direct replacement for older 1023033-series pumps in compatible applications
