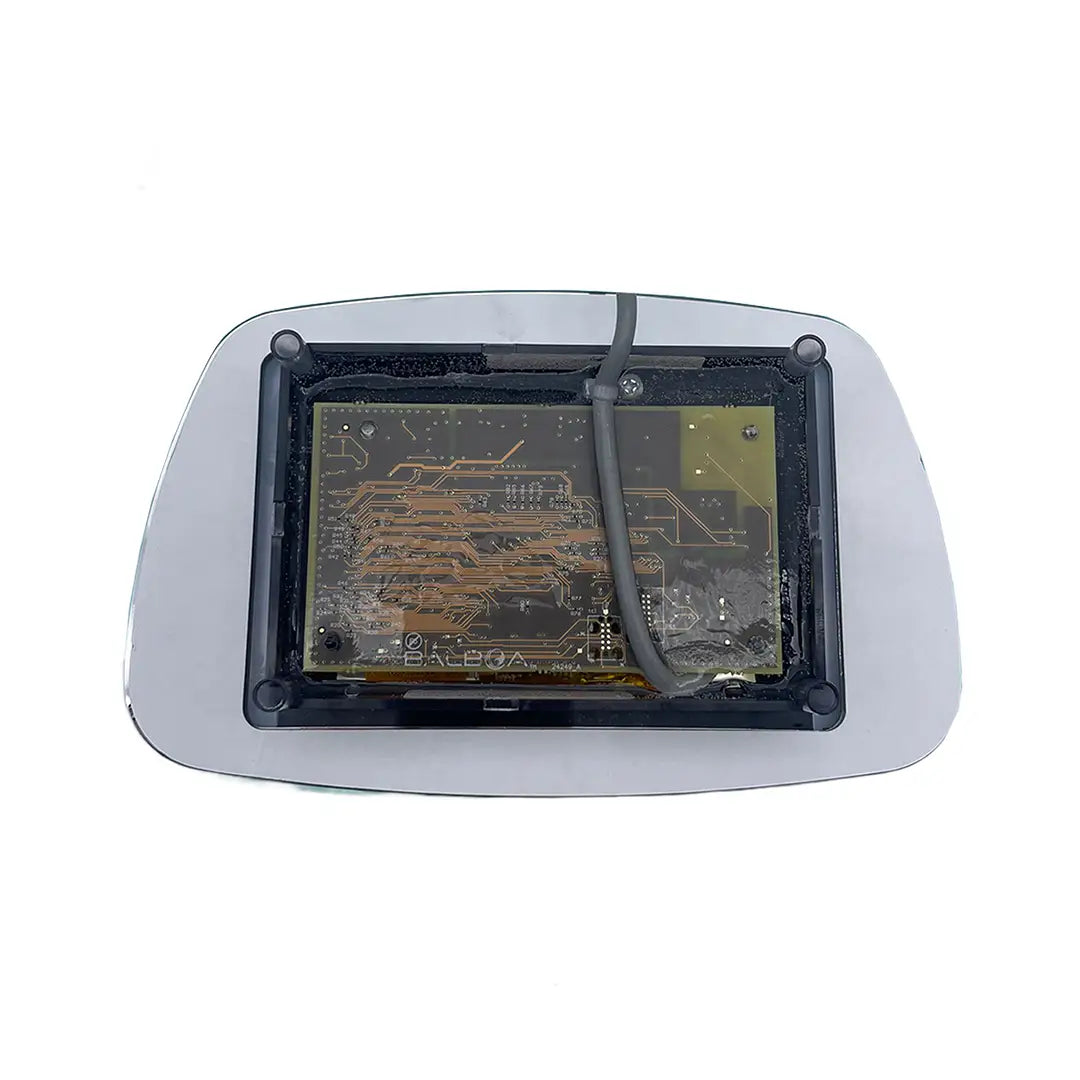

Balboa SpaTouch2 Trapezoid Touchscreen Touchpad and Overlay-57324

Description

The Balboa SpaTouch 2 is a touch-sensitive screen that replaces a conventional hot tub keypad.?ÿ

Compatible with all BP systems that already support the?ÿTP800?ÿand/or the?ÿTP900:?ÿBP200 G1, G2 and G3,?ÿBP200 UX, BP600,?ÿBP601 3G1,?ÿ3G2?ÿand 3G3, and?ÿBP2100 G1, G2 and G3.

The large user friendly digital face screen, with access to all equipment allows you to control your hot tub with ease. The main screen also indicates important information about spa operation including temperature, adjustments, ozone, filter and pump status, messages and alerts. It has a stylish design and a 4 pin connection.

Instruction Sheet: https://www.balboawater.com/wp-content/uploads/2024/08/42281A_SpaTouch2%E2%84%A2-User-Guide.pdf

Dimensions
Keypad: 198 x 124 mm
Cut out area : 119 x 89 mm

Warranty
1-year Parts warranty

Part numbers
Balboa: 57324-02 (with overlay)
This model replaces the SpaTouch 1, part number 50585

Note that there 2 ways to unlock to SpaTouch depending on the Touchpad versions.

Here the link for the instruction for the First Version.

https://www.youtube.com/watch?v=IaiBvTm8U6w&t=50s

The second version is that you need to press in the middle on the screen for 5 seconds to unlock the touchpad.

Here the link for the instruction for Second versions.

https://www.youtube.com/watch?v=emHP_Hu00x8&t=73s
