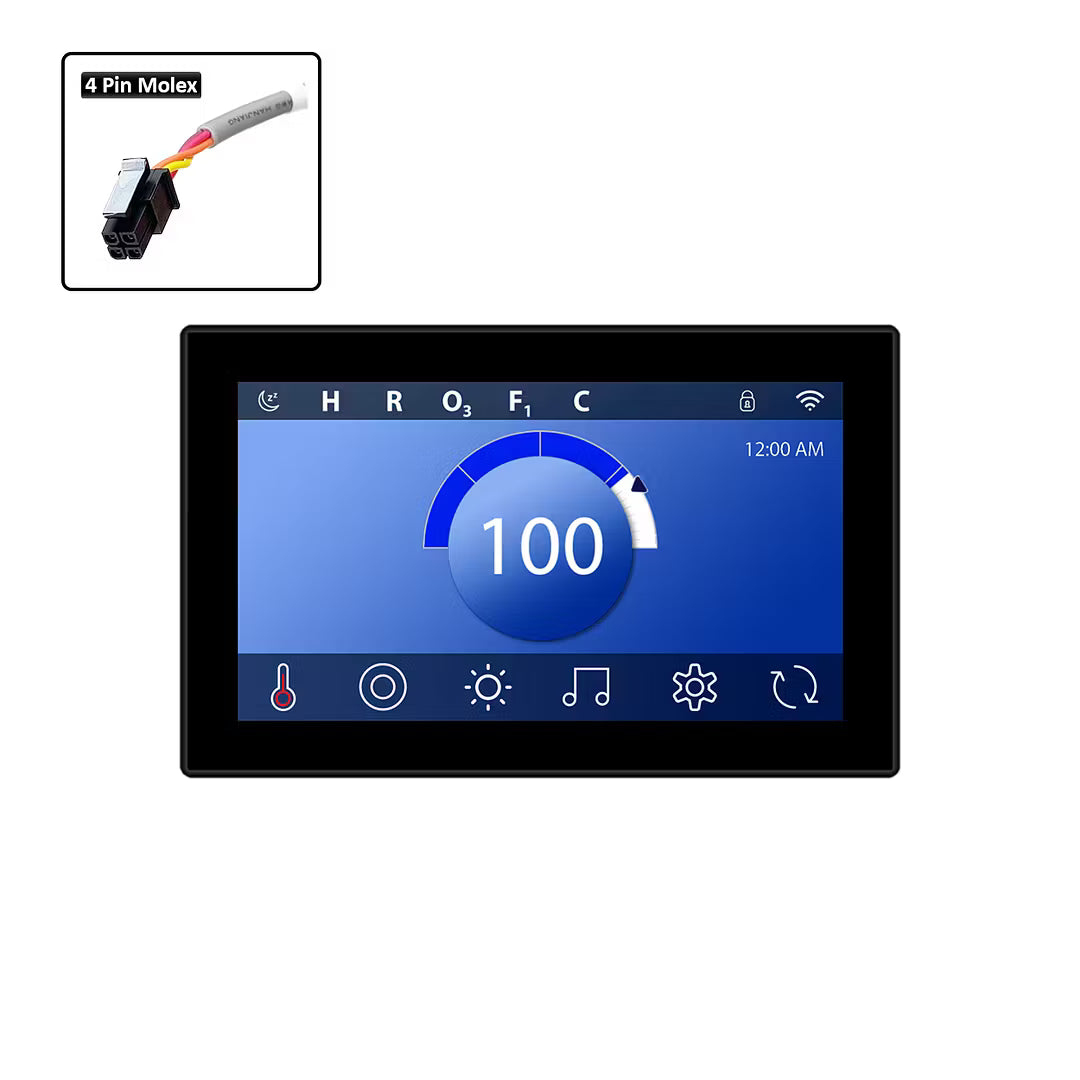

Balboa SpaTouch3 Plus Touchscreen Touchpad 57257

Experience the next generation of spa control with the Balboa SpaTouch3 Plus Touchscreen Touchpad 57257, the premium touchscreen interface designed for Balboa BP Series spa control systems. Featuring a large 7-inch full-color capacitive touchscreen display, the SpaTouch3 Plus delivers an intuitive, fast, and highly responsive user experience that makes managing your spa easier than ever.

Built with powerful third-generation touchscreen technology, the SpaTouch3 Plus offers enhanced graphics, brighter display performance, faster menu navigation, and smoother operation compared to previous SpaTouch models. The modern interface allows users to conveniently control water temperature, massage pumps, filtration cycles, lighting, heating modes, blower functions, and more from a single elegant control panel.

Engineered specifically for compatibility with Balboa BP Series control packs, the SpaTouch3 Plus combines premium aesthetics with advanced functionality. Its waterproof capacitive touchscreen technology provides reliable operation in spa environments while maintaining a sleek, contemporary appearance.

Ideal for luxury spa owners, replacement installations, and OEM applications, the Balboa SpaTouch3 Plus offers complete control, exceptional visibility, and effortless spa operation.

Key Features

• Genuine Balboa SpaTouch3 Plus Touchscreen Panel
• Large 7-inch colour touchscreen display
• Premium "Plus" user interface
• High-brightness, high-contrast screen
• Fast navigation and smooth touchscreen response
• Capacitive touch technology
• Waterproof spa-grade design
• Controls temperature, pumps, lights, filtration and heating
• Display flip function (180° rotation)
• Compatible with selected Balboa BP Series systems
• Modern black bezel finish
• Designed for premium spa installations

Technical Specifications

General

• Brand: Balboa Water Group
• Model: SpaTouch3 Plus
• Part Number: 57257
• Alternate Part Number: G8537
• Product Type: Spa Touchscreen Control Panel
• Display Type: Capacitive Colour Touchscreen
• Screen Size: 7 Inches (17.78 cm)

Dimensions

• Face Dimensions: Approximately 7.27" W × 4.58" H
• Screen Width: Approximately 185 mm
• Height: Approximately 115 mm
• Depth: Approximately 40 mm
• Required Cut-Out: Approximately Length: 127mm x Width: 82mm
• Cable Length: Approximately 2m (6ft)

Compatibility

• Compatible with Balboa BP Series Control Systems
• Supports systems compatible with TP800 and TP900 interfaces
• Intended for spas originally equipped with touchscreen control systems
• Not recommended as a retrofit replacement for button-type topside controls without compatibility verification

Functions

• Water Temperature Control
• Pump Control
• Blower Control
• Spa Lighting Control
• Filtration Programming
• Heating Control
• Energy Saving Modes
• System Diagnostics
• Display Rotation / Flip Mode
