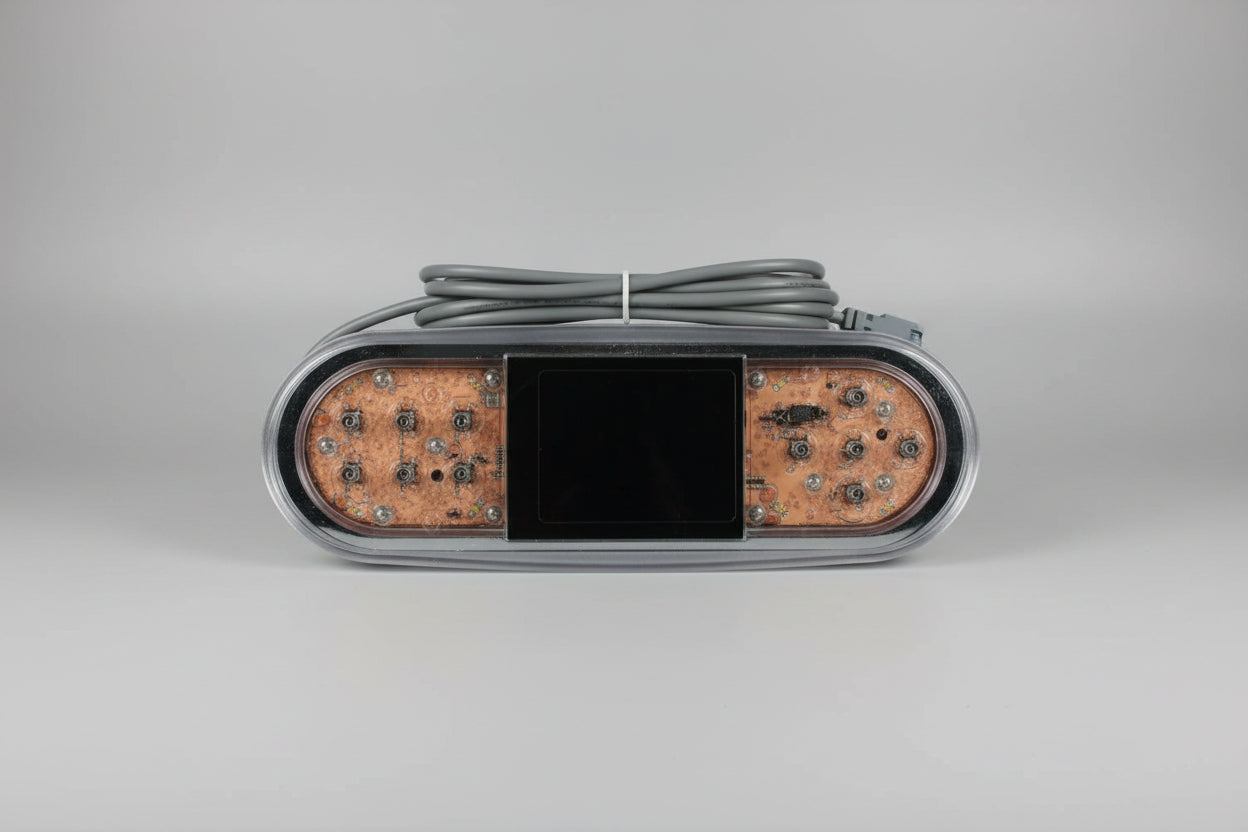

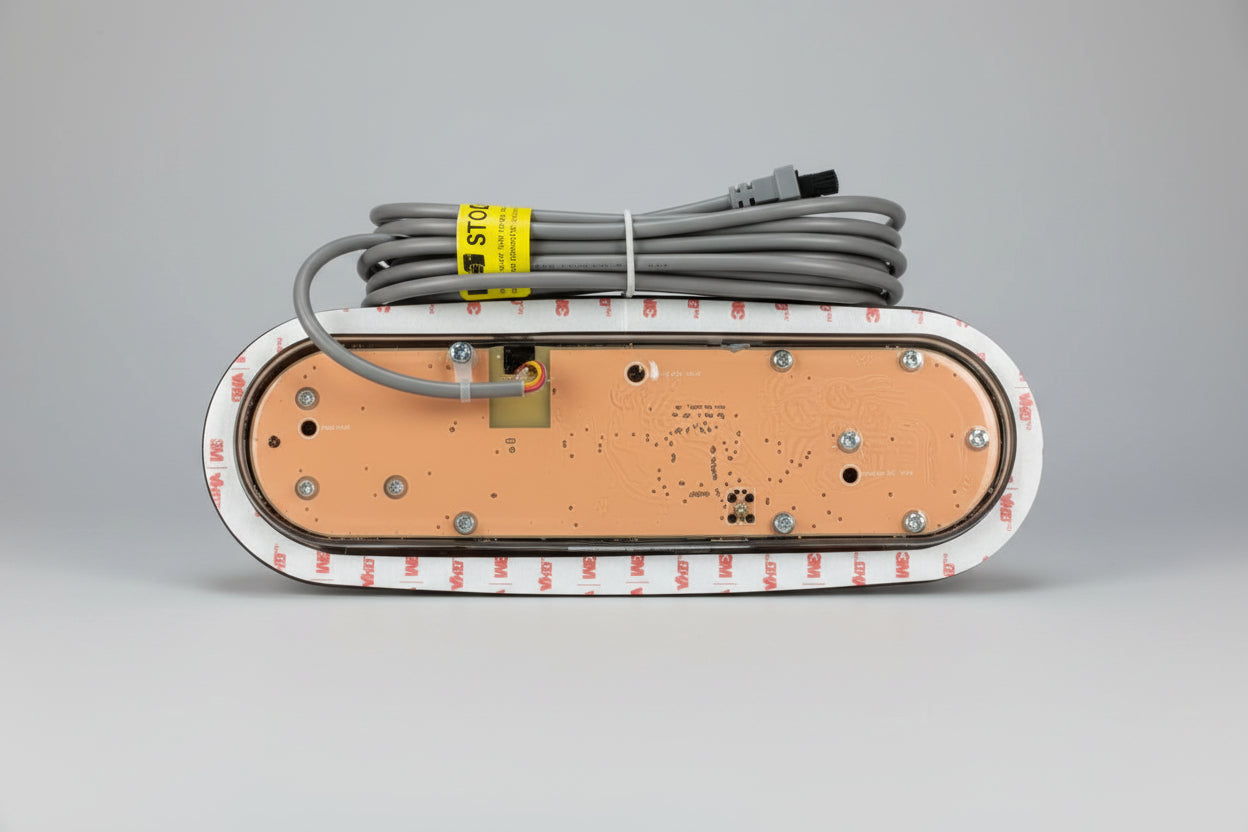

Balboa TP700 Control Panel C8Z Without Overlay – Part #57278

Product Description

The Balboa TP700 Control Panel (57278) is a premium topside spa control interface designed for use with compatible Balboa BP Series control systems. Featuring a modern LCD display, intuitive button layout, and SpaTouch™ styling, the TP700 provides convenient access to spa functions including temperature adjustment, jet control, lighting, timers, and diagnostic information.

This version is supplied without an overlay, making it ideal when replacing a failed control panel while reusing an existing overlay, or when a specific overlay configuration is required for a custom spa setup. Compatible overlays are available separately for different pump and jet configurations.

Designed for reliability in demanding spa environments, the TP700 features a large backlit LCD display and a durable weather-resistant construction. The panel connects via a Molex-style plug and includes a factory-fitted connection cable for straightforward installation with compatible Balboa BP control packs. Advanced onboard diagnostics allow maintenance technicians and spa owners to quickly identify system status and troubleshooting information directly from the display.

Suitable for many modern hot tubs and spas, the Balboa TP700 is commonly found in systems manufactured by Balboa Water Group, Marquis Spas, Coast Spas, and other leading spa brands using BP-series electronics.

Key Features

• Genuine Balboa Water Group topside control panel.
• TP700 Series user interface.
• Supplied without overlay graphic.
• Large easy-to-read LCD display.
• Modern SpaTouch™ design.
• Controls temperature, pumps, jets, lighting and spa functions.
• Displays diagnostic and system messages.
• Compatible with Balboa BP Series spa packs.
• Durable construction for spa environments.
• Ideal replacement for damaged or faulty TP700 control panels.

Technical Specifications

• Manufacturer: Balboa Water Group
• Model: TP700
• Part Number: 57278
• MPN: 57278-02
• Display Type: LCD
• Button Count: 11 Buttons
• Shape: Oval / Oblong
• Panel Size: Approx. 10.5" x 3.5" (267 x 89 mm)

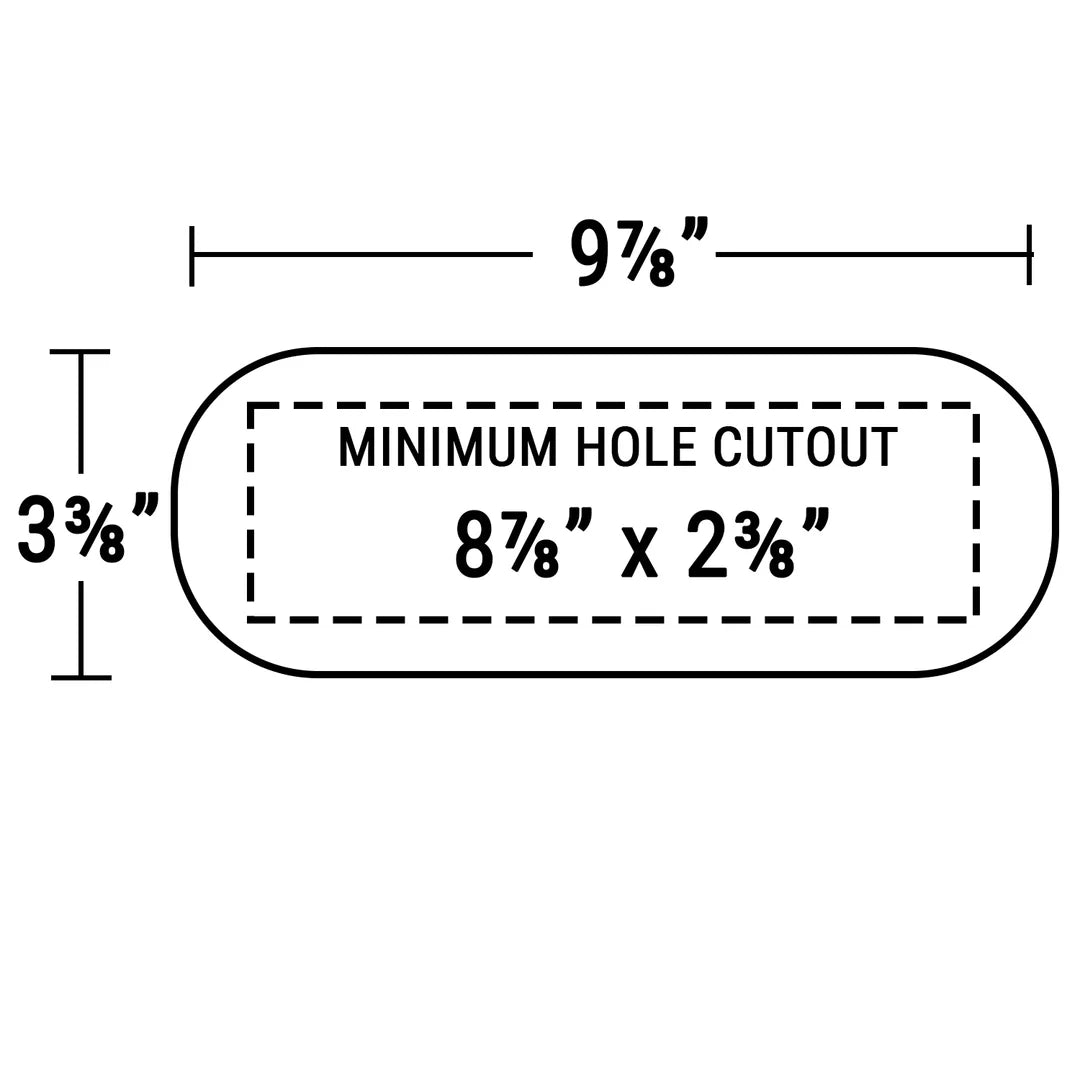

• Cut-Out Size: Approx. 8.85" x 2.36" (225 x 60 mm)
• Cable Length: 7 ft (2.13 m)

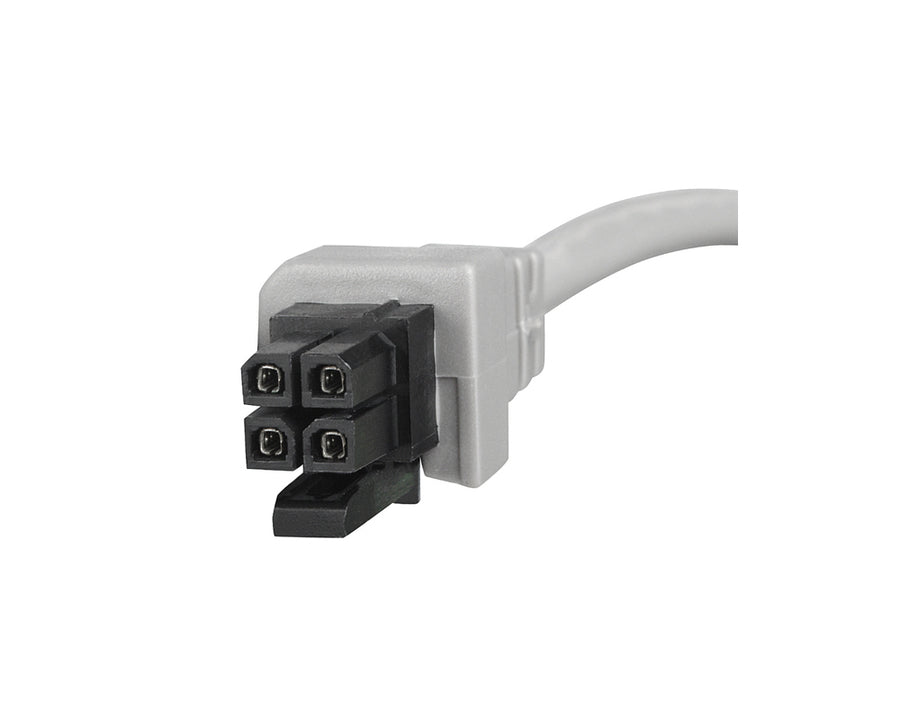

• Connection Type: Molex Plug 4pins
• Series Compatibility: Balboa BP Series Control Systems
• Overlay Included: No

Compatible Overlay Options

• Balboa Overlay Part	Typical Configuration
  17381	Balboa TP700 Overlay (3 Jets &amp & Blower)
  17382	Jets 1, Jets 2 (2 Pump Spas)
  17391	Jets 1, Jets 2, Jets 3, Aux / 4 Pump Systems
