Capacitor 40?æF for Gecko Maelstrom MSƒ??1/ 2ƒ??SP ƒ?? 0800ƒ??500014

Product Description

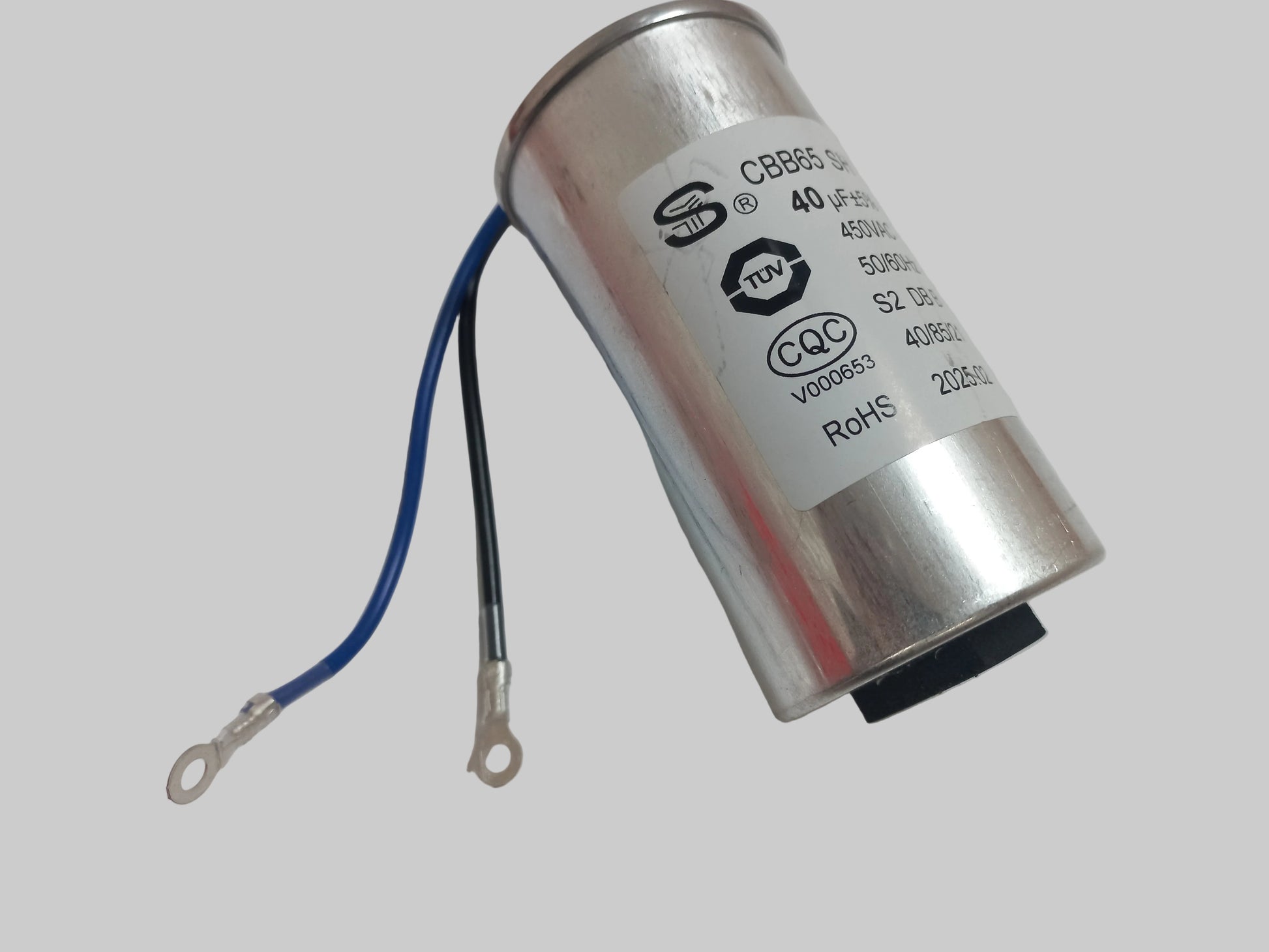

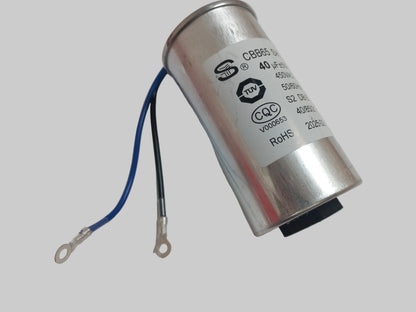

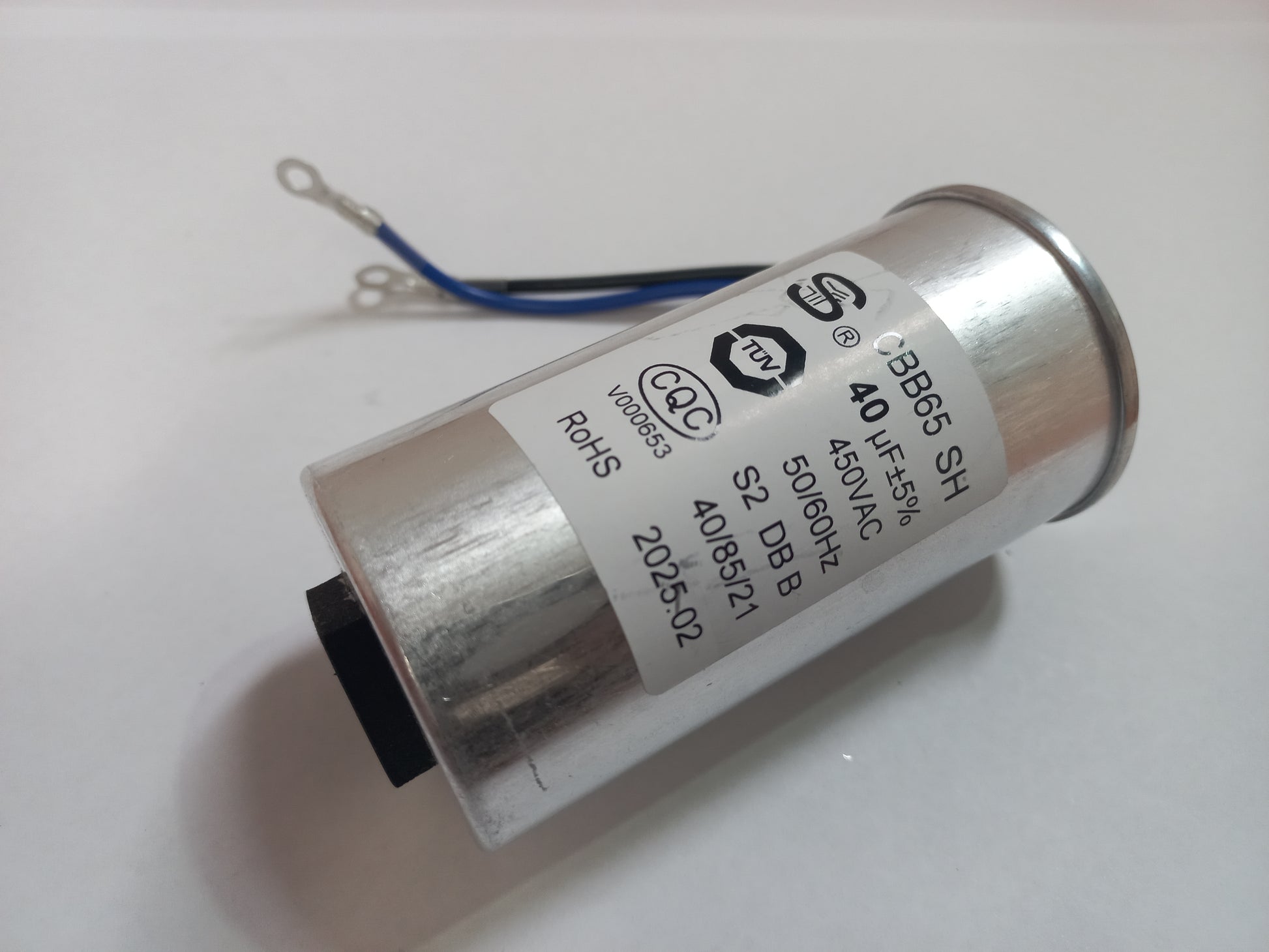

This 40?æF 450V Capacitor Kit is the correct replacement for the Gecko Maelstrom MS-1 2.5HP CE 2-Speed pump, part number 0800-500014.
A worn or failing capacitor can cause symptoms such as weak startup, humming, low torque, or overheating. Replacing it restores full pump performance and ensures stable operation.

This capacitor is a CBB65 SH aluminium motor-run design, offering excellent heat dissipation and long service life - ideal for demanding spa and hot-tub pump applications.

Technical Specifications

• Capacitance: 40 ?æF ?ñ 5%
• Voltage Rating: 450 VAC
• Frequency: 50/60 Hz
• Construction: Aluminium canister
• Type: CBB65 SH (motor-run)
• Leads: 1 ?? blue wire + 1 ?? black wire, both with ring terminals
• Certifications: TUV, QC, RoHS, CE-style safety markings
• Marking Code: S2 DBB / 40B521
• Manufacture Date: 2025-02

Compatible With

• Gecko Maelstrom MS-1 (2.5 HP, CE version)
• 2-Speed Gecko Maelstrom pumps requiring 40?æF run capacitor
• Direct replacement for 0800-500014

When to Replace

• Pump hums but doesn-t start
• Low power or slow startup
• Pump overheats
• Inconsistent or weak water flow

Replacing the capacitor is an inexpensive and effective repair to restore normal pump behaviour.
