Controller

SKU: ACONSP8003KW

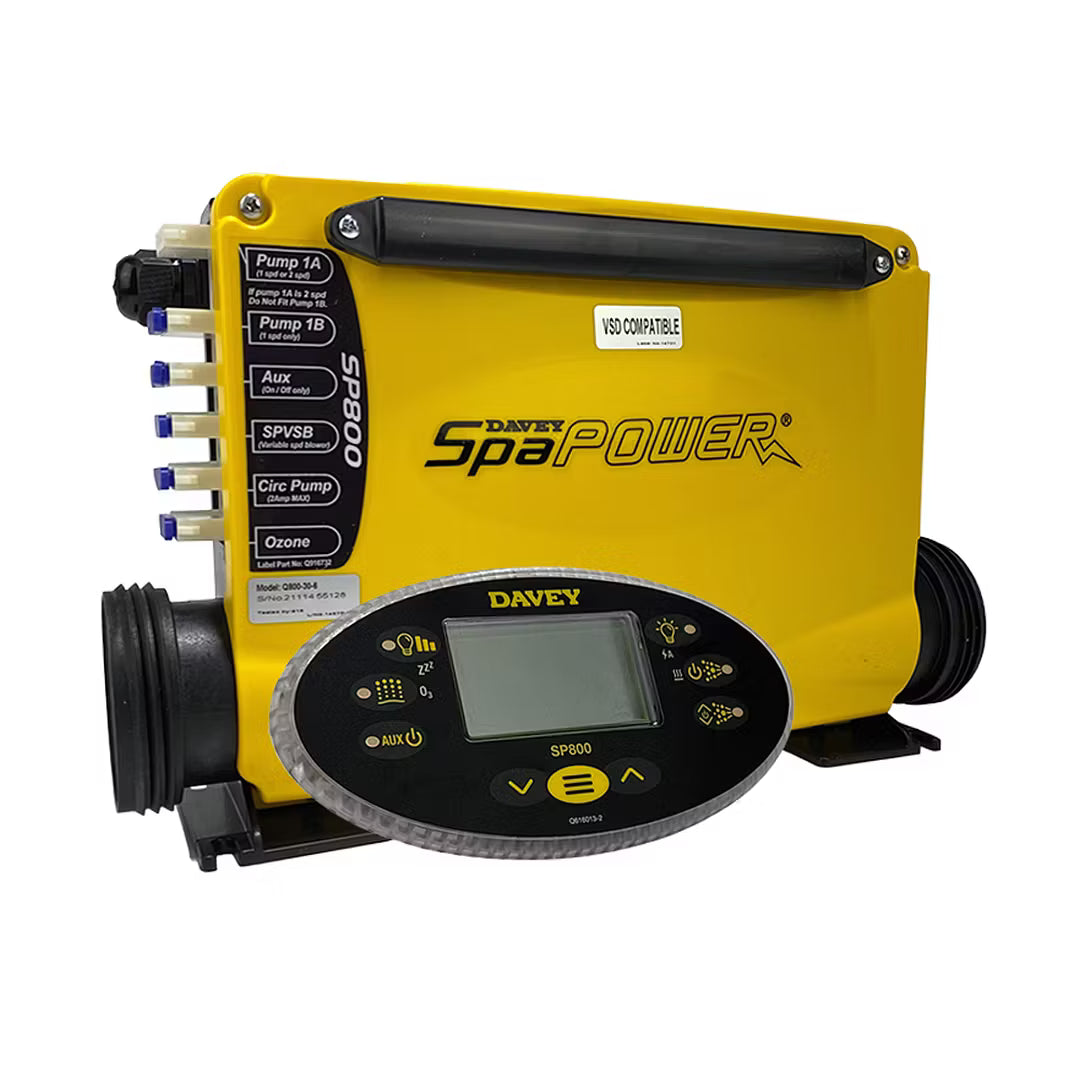

Davey Spa-Quip SP800 3.0kw Controller with oval touchpad-Q800-30

Davey Spa-Quip SP800 3.0kw Controller with oval touchpad-Q800-30

Description

Davey SP800-30 Controller.

Comes complete with controller and touchpad.

SP800-30 240volt Output Sockets
PUMP 1A: 1Spd Pump or 2Spd Pump
PUMP 1B: 1Spd pump (Cannot be used if pump 1A 2Spd)
AUX: 1spd Pump or single speed blower
SPVSB: Davey Variable Speed Blower only
Circ Pump: Circulation pump
O3/UV: This outlet is only to be used with an ozone system

SP800-30 Low Voltage
2 x Touchpad Outlet
4 x Light (Davey light only)
1 x 12v AC light
1 x SPVSB.
1 x In pool temp sensor

SP800-30 Features
*In heater temp sensor
*Max Temp 41 degrees
*Adjustable Filtration
*Programmable Load Shedding
*Adjustable sleep timers

Specifications

Controller Specifications.
Heater Wattage: 3000w
Max Current: 40amp
Power Lead: Hard Wired
Power Lead Length: N/A
Heater Unions: 50mm

Controller Dimensions.
Length: 360mm
Height: 220mm
Width: 95mm
Weight: 3.8kg

Touchpad Dimensions.
Face Size –
Length: 172mm
Width: 91mm
Depth: 5mm

Hole Size –
Length: 135mm
Width: 65mm

Touchpad Lead Length: 3.0m

Specification:

Description

Davey SP800-30 Controller.

Comes complete with controller and touchpad.

SP800-30 240volt Output Sockets
PUMP 1A: 1Spd Pump or 2Spd Pump
PUMP 1B: 1Spd pump (Cannot be used if pump 1A 2Spd)
AUX: 1spd Pump or single speed blower
SPVSB: Davey Variable Speed Blower only
Circ Pump: Circulation pump
O3/UV: This outlet is only to be used with an ozone system

SP800-30 Low Voltage
2 x Touchpad Outlet
4 x Light (Davey light only)
1 x 12v AC light
1 x SPVSB.
1 x In pool temp sensor

SP800-30 Features
*In heater temp sensor
*Max Temp 41 degrees
*Adjustable Filtration
*Programmable Load Shedding
*Adjustable sleep timers

Specifications

Controller Specifications.
Heater Wattage: 3000w
Max Current: 40amp
Power Lead: Hard Wired
Power Lead Length: N/A
Heater Unions: 50mm

Controller Dimensions.
Length: 360mm
Height: 220mm
Width: 95mm
Weight: 3.8kg

Touchpad Dimensions.
Face Size –
Length: 172mm
Width: 91mm
Depth: 5mm

Hole Size –
Length: 135mm
Width: 65mm

Touchpad Lead Length: 3.0m
