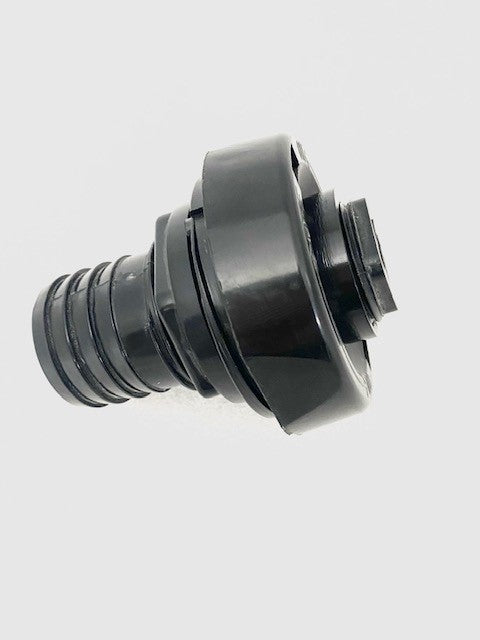

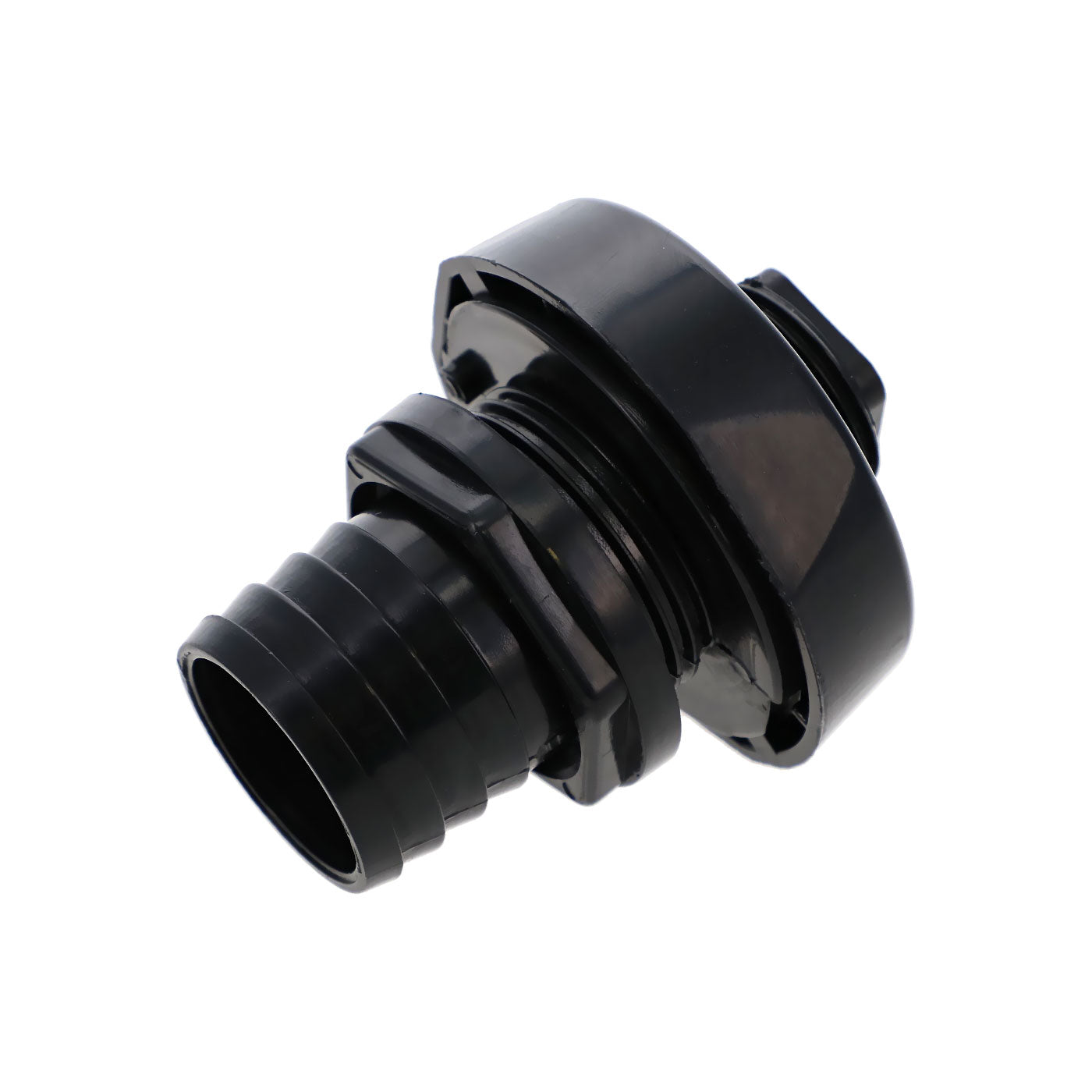

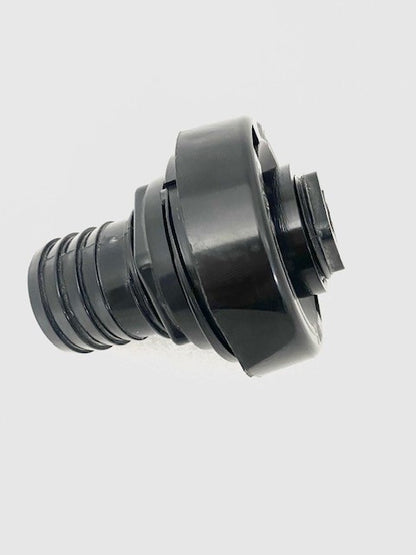

Spa Drain Valve Interface 1" - Black

Product Description?ÿ

This spa drain valve is designed for reliable and controlled draining of hot tubs and spas during maintenance or servicing. The valve features a hose barb outlet for secure connection to flexible drain tubing, allowing water to discharge safely and efficiently.

Manufactured from high-strength black plastic (commonly ABS or similar spa-grade polymer), the valve is resistant to chemicals, moisture and temperature variations typically found in spa environments. The compact design allows it to be installed in tight cabinet spaces, while the ribbed hose barb ensures a firm, leak-resistant grip when secured with a clamp.

Technical Specifications:

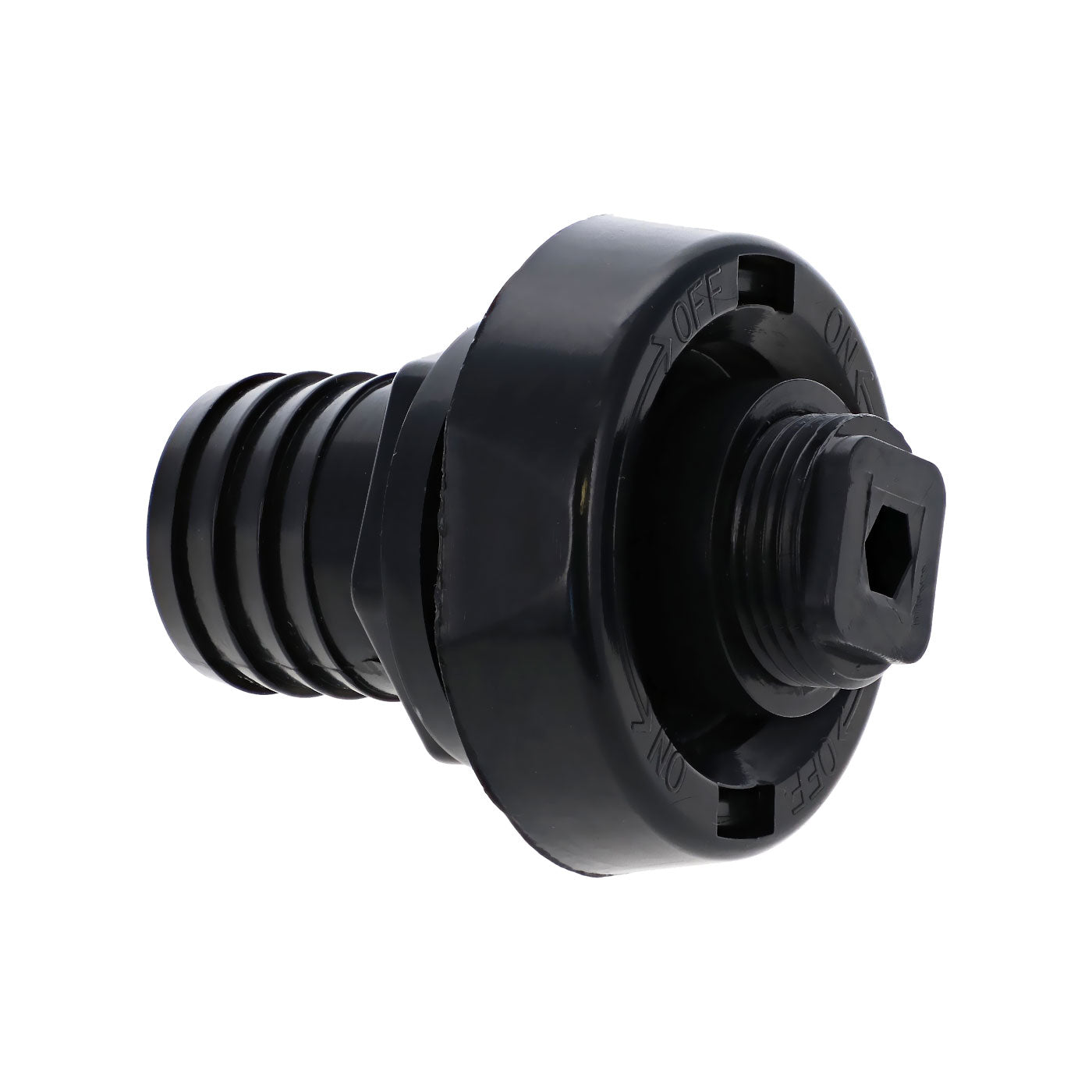

Drain opening and closing with external mechanical ring
Connection Type:?ÿMale
Pipe Diameter:?ÿ1.5" (48mm)

Dimensions:

• Total Outer Diameter: 80mm
• Total Length of the part (excluding plug): 84mm
• Pipe Inlet: Male grooved 42mm outer diameter

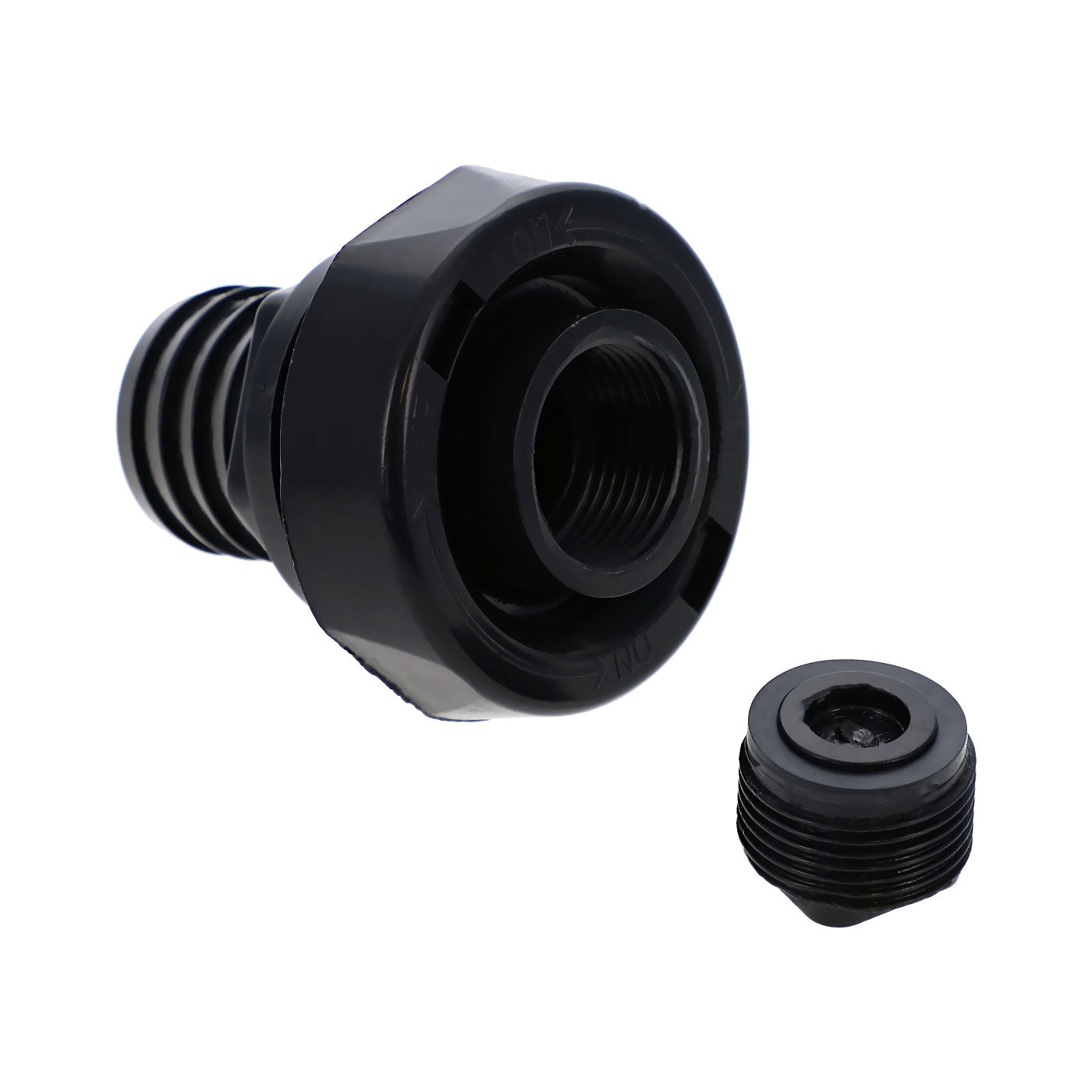

Drain valve plug included

• Application: Spa / Hot Tub water drainage
• Connection Type: Hose barb outlet
• Material: Spa-grade durable plastic (ABS or equivalent)
• Colour: Black
• Installation: Inline or cabinet-mounted (depending on spa model)
• Use Case: Draining spa water for servicing, winterising, or repairs
• Compatibility: Jazzi spas, LVJ air venturi systems, X529 Swim Spa, X539 Swim Spa
