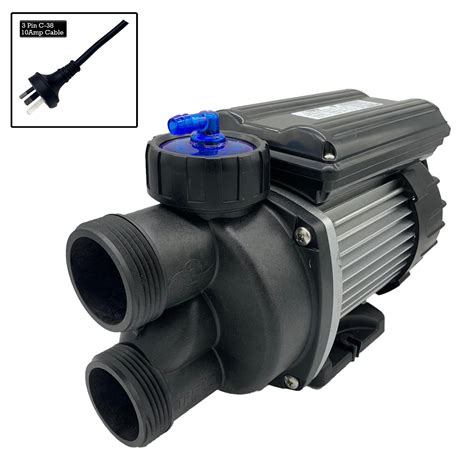

Edgetec TriFlo 1.0HP Auto Heat Spa Bath Pump -E6100

Product Description

The Edgetec TriFlo 1.0HP Auto Heat Spa Bath Pump (E-6100) is a premium air-switch-operated spa bath pump designed to deliver powerful hydrotherapy performance while helping maintain water temperature without the need for a separate heating element. Featuring Edgetec's innovative Auto-Heat technology, the pump recovers heat generated by the motor and transfers it back into the circulating water through its unique rear heat-transfer plate, improving bathing comfort and energy efficiency.

Ideal for spa baths from manufacturers such as Decina, Monarch, Lanark, Round Bath Company, Microjet Spa Bath, and many other Australian spa bath brands, the TriFlo E-6100 provides reliable operation, quiet performance, and simple installation.

The versatile multi-port design allows either top or front discharge plumbing configurations, making it suitable for both new installations and retrofit projects. An integrated air bleed system helps eliminate air locks during startup, ensuring efficient water circulation and preventing dry-running issues.

The TriFlo's self-draining internal design minimizes residual water retention after use, helping maintain hygiene and compliance with local spa bath standards.

Technical Specifications

Pump Specifications

• Model: Edgetec TriFlo Auto Heat
• Part Number: E-6100
• Power: 1.0HP (750W)
• Voltage: 230-240V AC
• Current Draw: Approximately 4.4A
• Speed: Single Speed
• Control Type: Air Switch Operated
• Heating System: Auto Heat (motor heat recovery, no heater element fitted)
• Union Size: 40mm
• Lead Length: 1.8m
• Plug Type: C38
• Application: Spa Baths & Hydrotherapy Baths
• Warranty: 12 Months Manufacturer Warranty

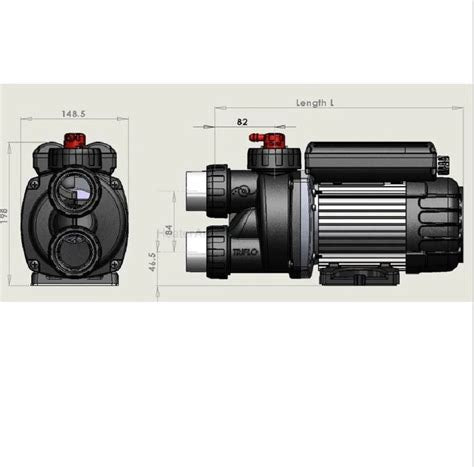

Dimensions

• Length: 384mm
• Width: 148mm
• Height: 198mm
• Weight: Approx. 10kg

Key Features

✅ Auto Heat motor heat recovery system
✅ Air-switch operation
✅ Multi-port plumbing configuration
✅ Integrated air bleed valve
✅ Self-draining pump design
✅ Reliable single-speed motor
✅ Ideal replacement for older spa bath pumps
✅ Suitable for many Decina and Edgetec spa baths

Compatible Replacement Models:
