Gecko XP3 Pump 4.2HP 1SP 50Hz 6m Lead Amp Plug, 2.5"-08243000-6341

Product Description

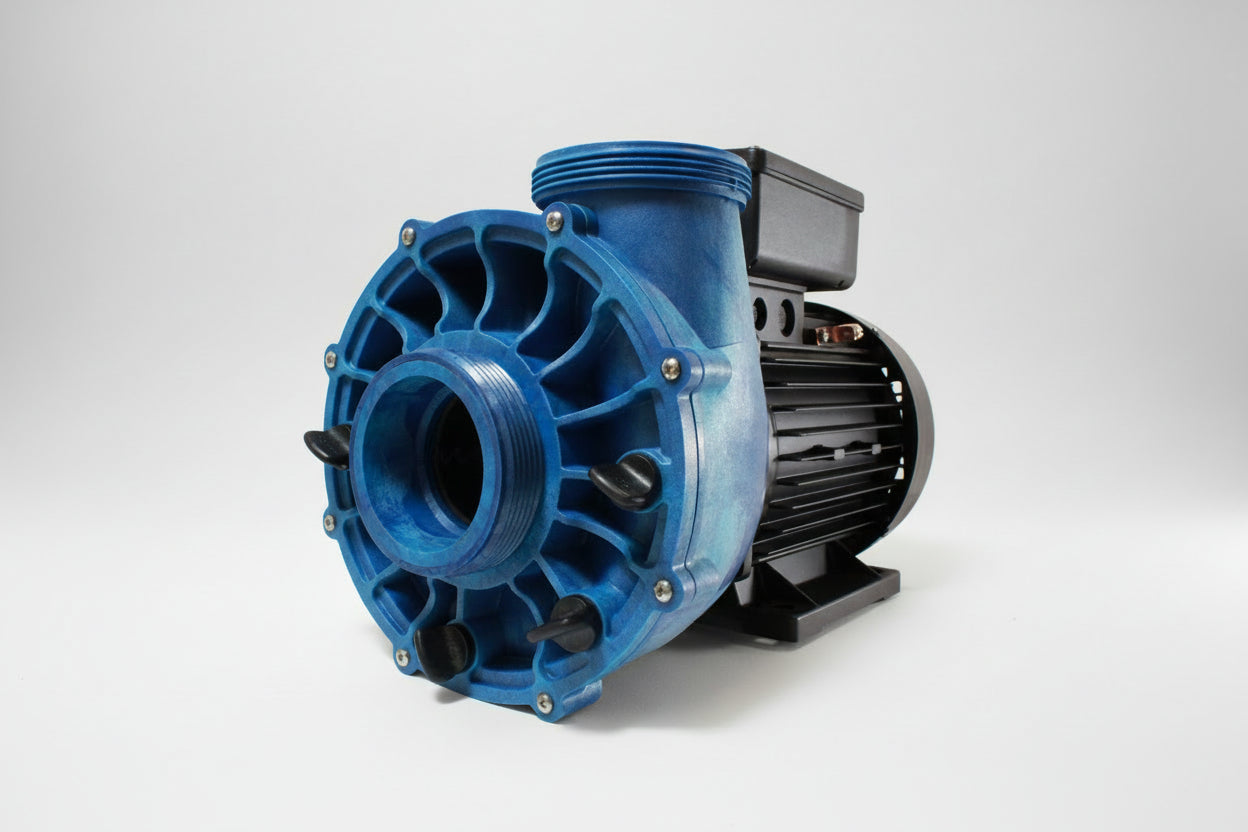

The Gecko XP3 Spa Pump is a powerful 4.2HP single-speed pump designed for high-performance spa and hot tub jet systems. Operating on a 50Hz power supply, this pump is ideally suited for Australian spa installations and heavy-duty massage applications.

Equipped with a 2.5- suction inlet, the XP3 delivers exceptionally high flow rates and strong jet pressure, making it ideal for large spas with multiple jets. Supplied with a factory-fitted 6-metre lead and amp plug, this pump offers convenient installation where plug-and-play configurations are required.

Manufactured by Gecko, a global leader in spa equipment, the XP3 range is known for robustness, reliability, and long service life. This unit is commonly used as a replacement for existing XP3 pumps and other high-flow spa massage pumps.

Technical Specifications

• Pump Model: Gecko XP3
• Part Number: 63-08243000-6341
• Pump Type: Spa / Hot Tub Massage Pump
• Motor Power: 4.2 HP
• Speed: Single Speed
• Frequency: 50Hz
• Voltage: 220-240V
• Phase: Single Phase
• Electrical Lead: 6-metre pre-fitted cable
• Plug Type: Amp plug
• Current (Approx.): ~12-14A
• Suction Size: 2.5-
• Discharge Size: 2.5-
• Pump Orientation: Side discharge, centre suction
• Motor Frame: 56 Frame
• Cooling: Air-cooled motor
• Insulation Class: Class F
• Thermal Protection: Built-in thermal overload protection
• Seal Type: Mechanical carbon/ceramic shaft seal
• Application: High-flow spa jet systems
• Duty Use: Continuous
• Manufacturer: Gecko Alliance

Applications

• High-performance spa and hot tub massage jet systems
• Large spas with multiple jets
• Replacement for compatible Gecko XP3 and other high-flow pumps

-‹?� Important:
Installation should be performed by a qualified technician. Please confirm plumbing size, electrical requirements, and pump orientation before ordering to ensure compatibility with your spa system.
