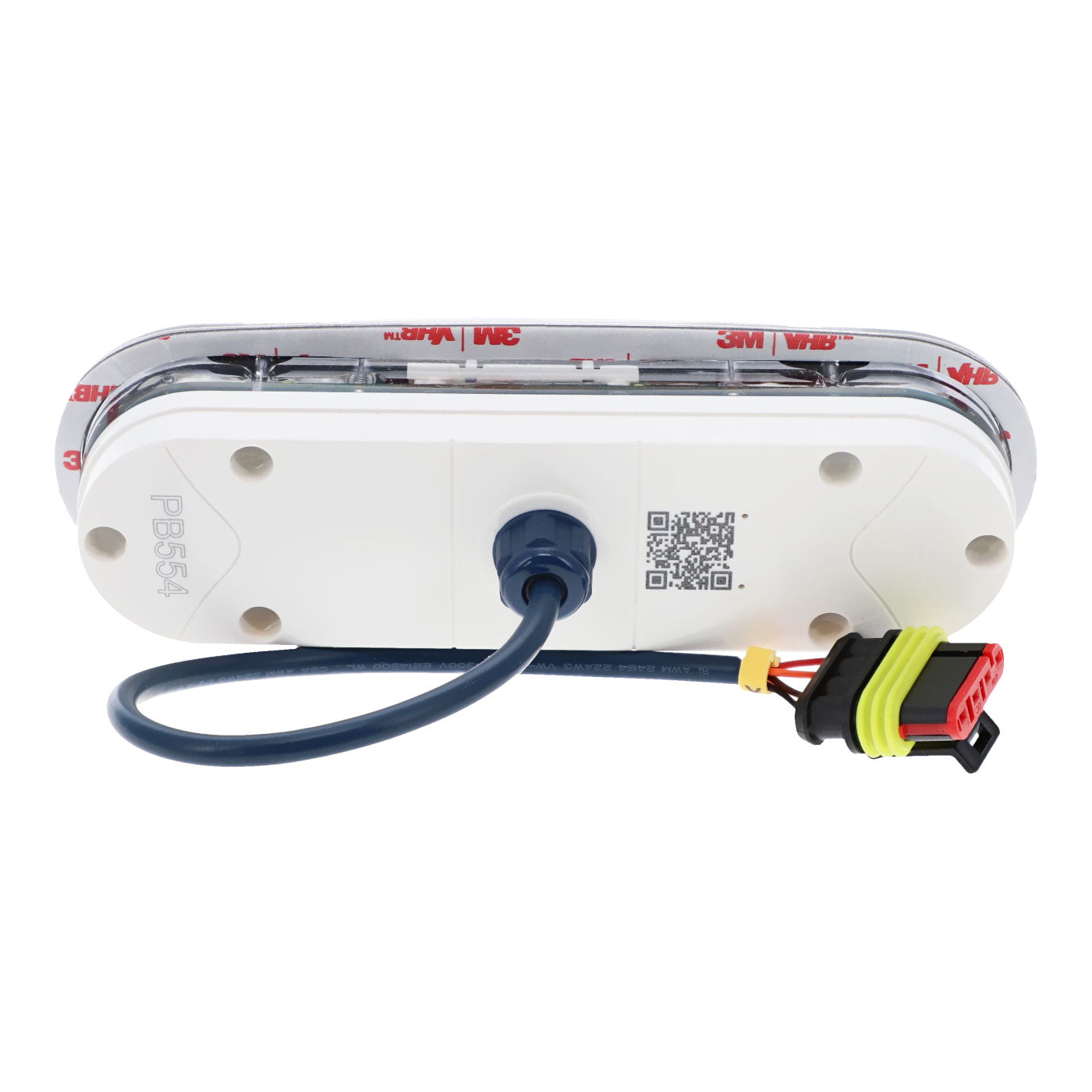

Joyonway PB554 Spa Touchpad and Overlay-JW-PB554

Product Description

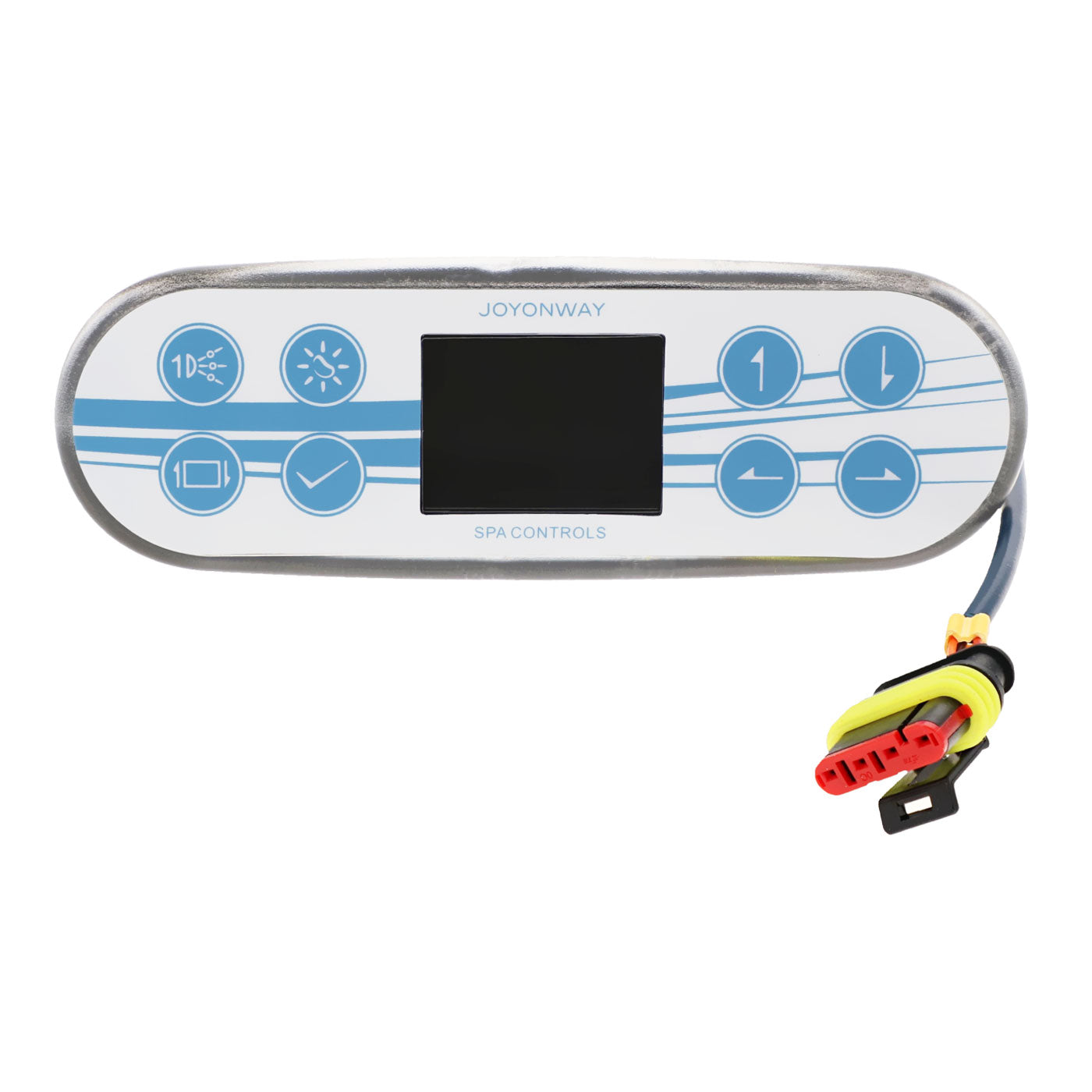

The Joyonway PB554 Touchpad and Overlay (JW‑PB554) is a premium colour LCD spa control panel designed for seamless integration with Joyonway spa control systems. Featuring a 2‑inch full‑colour display and 8 back‑lit capacitive touch keys, the PB554 provides intuitive control over essential spa functions including pumps, lighting, temperature settings, filtration cycles, and system menus.

Engineered for durability and clarity, the PB554 touchpad offers real‑time system feedback such as water temperature, heating status, time, operating modes, and diagnostic error codes. The included overlay membrane ensures a complete replacement solution, restoring both functionality and appearance to compatible spas.

This touchpad is commonly used in Australian and international spas, including OEM installations, and installs easily via the integrated data cable without requiring control box access for most configuration changes.

Key Features

• Full‑colour 2” LCD display
• 8 capacitive touch buttons, back‑lit for low‑light visibility
• Real‑time display of temperature, time, heating, and modes
• On‑screen diagnostics and error code display
• Screen rotation (invert) function for flexible installation
• Supplied with matching overlay membrane
• Designed for Joyonway licensed control systems

Technical Specifications

• Manufacturer: Joyonway
• Model: PB554
• Part Number: JW‑PB554
• Display: 2″ colour LCD
• Controls: 8 capacitive touch keys
• Power: Low‑voltage data connection via control system
• Mounting Cut‑out: Approx. 167 mm × 58 mm (rounded ends)
• Overall Size: Approx. 170 mm × 58 mm
• Ingress Rating: Spa‑rated for wet environments

Compatibility

Compatible with Joyonway spa control systems including:

• P20B29
• P23B32
• P25B37
• P68B123

⚠️ Only compatible with Joyonway control systems. Not interchangeable with Balboa or Gecko systems.
