Spa Directional Jet 5" Complete with Body ƒ?? Black & Chrome

Product Description?ÿ

This 5" Directional Catalina Spa Jet - Black & Chrome?ÿis a genuine?ÿCatalina-imported jet assembly, supplied?ÿcomplete with jet body, and designed for reliable performance in?ÿCatalina X539 and X529 swim spas.

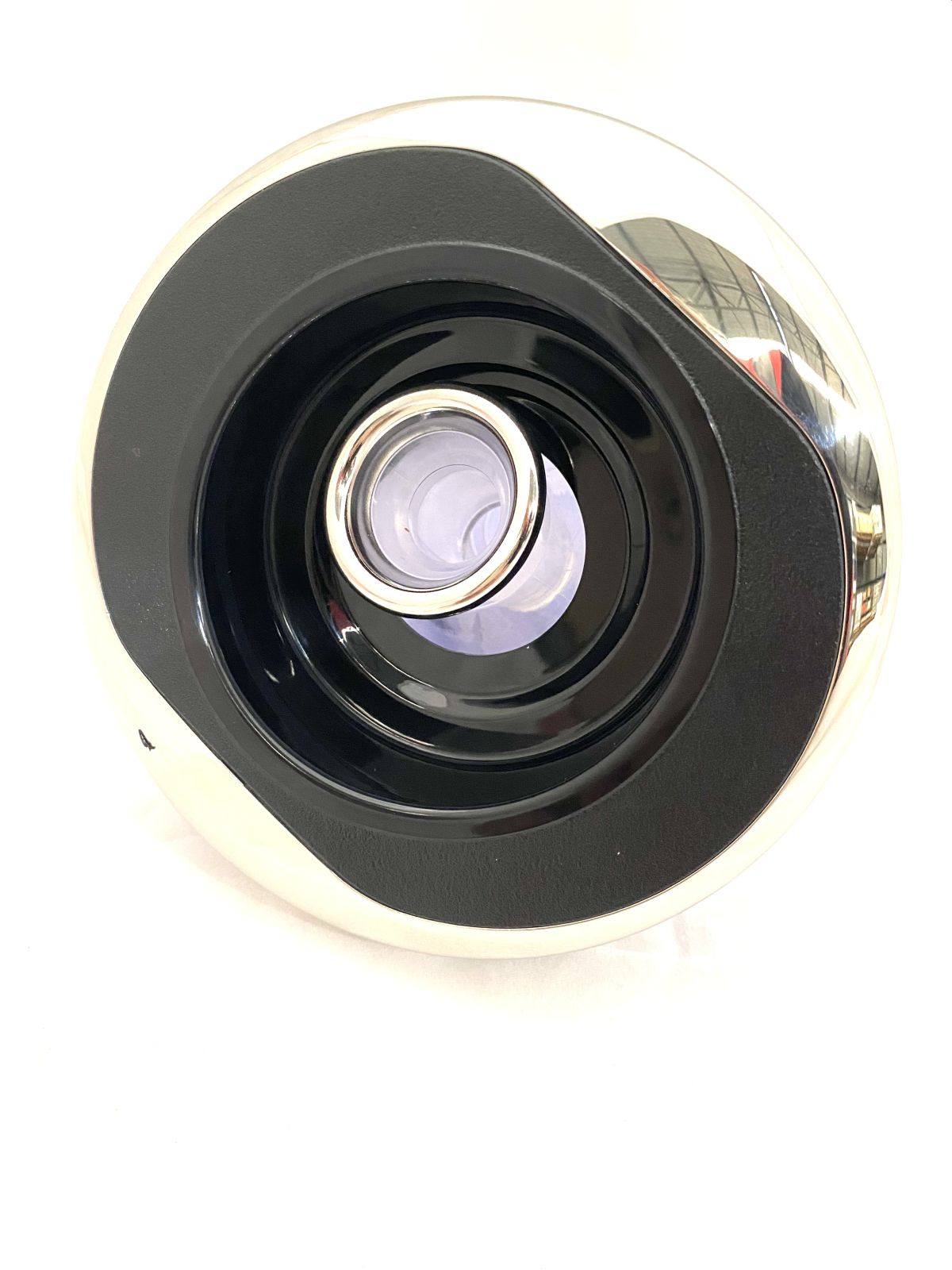

The jet features a?ÿscrew-in jet insert?ÿwith a black face and chrome detailing, providing adjustable water flow and a clean, modern finish. The threaded jet insert screws securely into the supplied jet body, ensuring a solid seal and easy servicing when required.

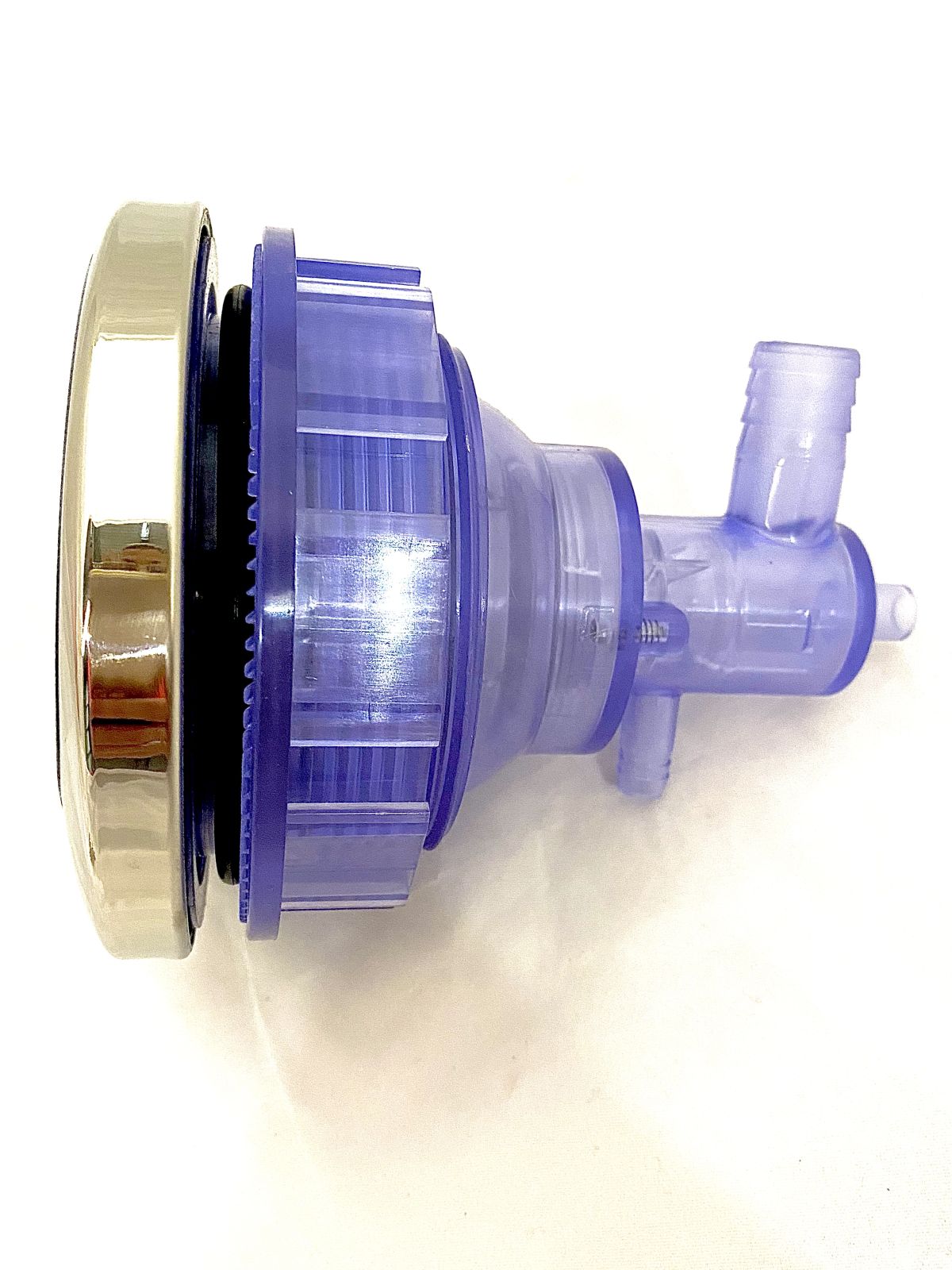

The included jet body incorporates?ÿseparate water and air injection ports, allowing proper venturi air mixing for a strong massage effect. A dedicated?ÿLED light housing?ÿis moulded into the bottom of the jet body, allowing installation of a?ÿPOL LED light?ÿ(light not included), making this jet ideal for illuminated seating and swim zone applications.

Designed for direct replacement or new installations, the jet body fits cleanly into the spa shell using a threaded retaining system and sealing O-ring, providing a watertight installation when correctly fitted.

Technical Specifications

• Jet Size (Face Diameter): 5"
• Catalina Ref:?ÿL-4771D
• Pressure Type:?ÿDirectional
• Outer Face Diameter:?ÿ___ mm
• Required Shell Hole Diameter:?ÿ___ mm
• Jet Insert Type:?ÿScrew-in
• Jet Thread Diameter:?ÿApprox. ___ mm
• Face Colour:?ÿBlack & Chrome
• Construction:?ÿJet insert + complete jet body supplied

Plumbing Connections

• Water Port Size:?ÿSuits 19 mm hose
• Air Port Size:?ÿSuits 9 mm hose
• Air/Water Mixing:?ÿIntegrated venturi system

Lighting Compatibility

• LED Housing:?ÿIntegrated into jet body
• Light Type:?ÿPOL LED (not included)
• Purpose:?ÿAllows back-lighting or halo lighting through the jet

Compatibility

• Suitable For:
  • Catalina X539 Swim Spa
  • Catalina X529 Swim Spa

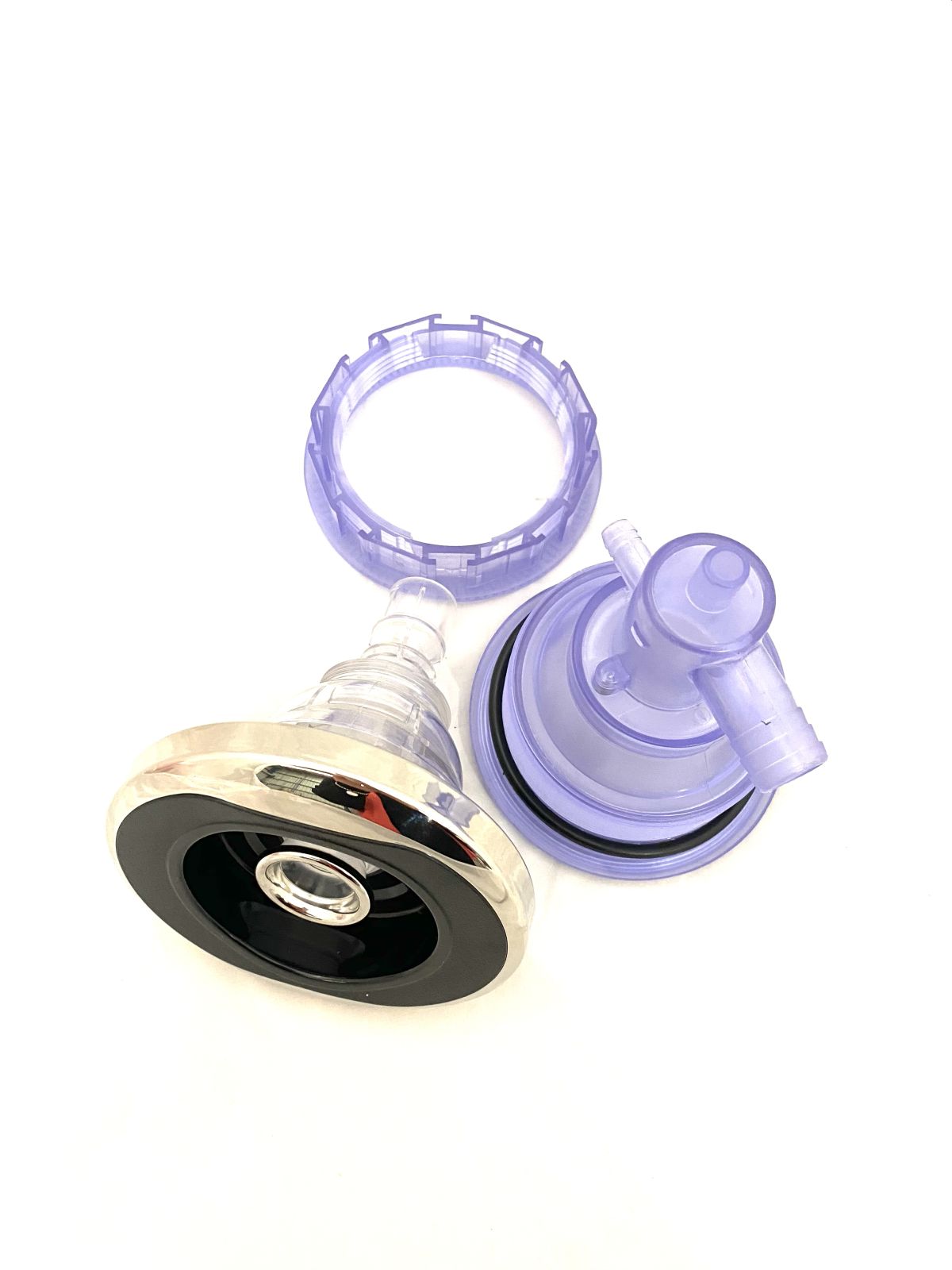

What-s Included

• 5" Black & Chrome screw-in jet insert
• Jet body with water and air ports
• Sealing O-ring
• Threaded retaining nut

Installation Notes

• Ensure correct?ÿ___ mm shell hole size?ÿbefore installation
• Confirm hose sizes (19 mm water / 9 mm air) prior to plumbing
• LED light must be purchased separately
• Professional installation recommended
