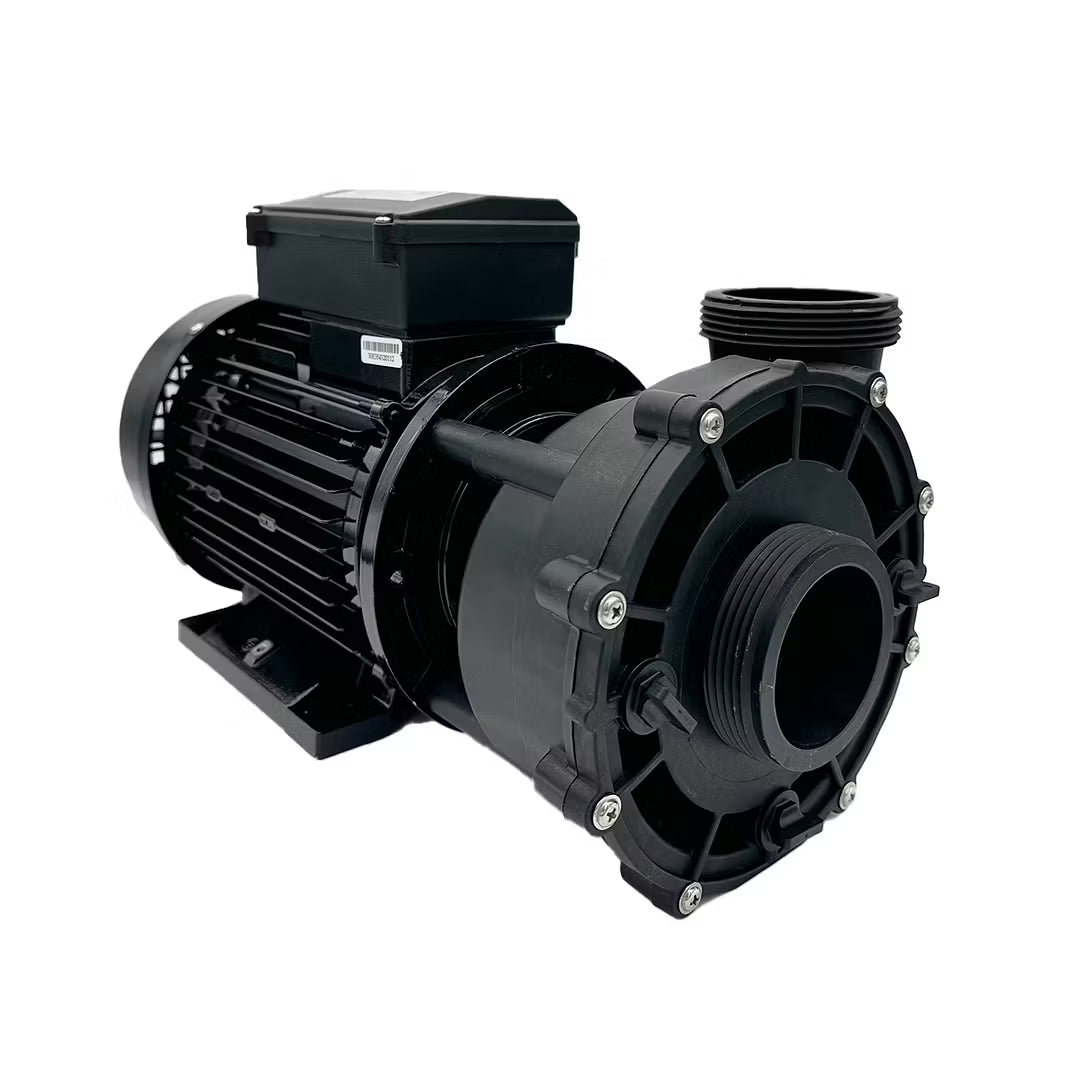

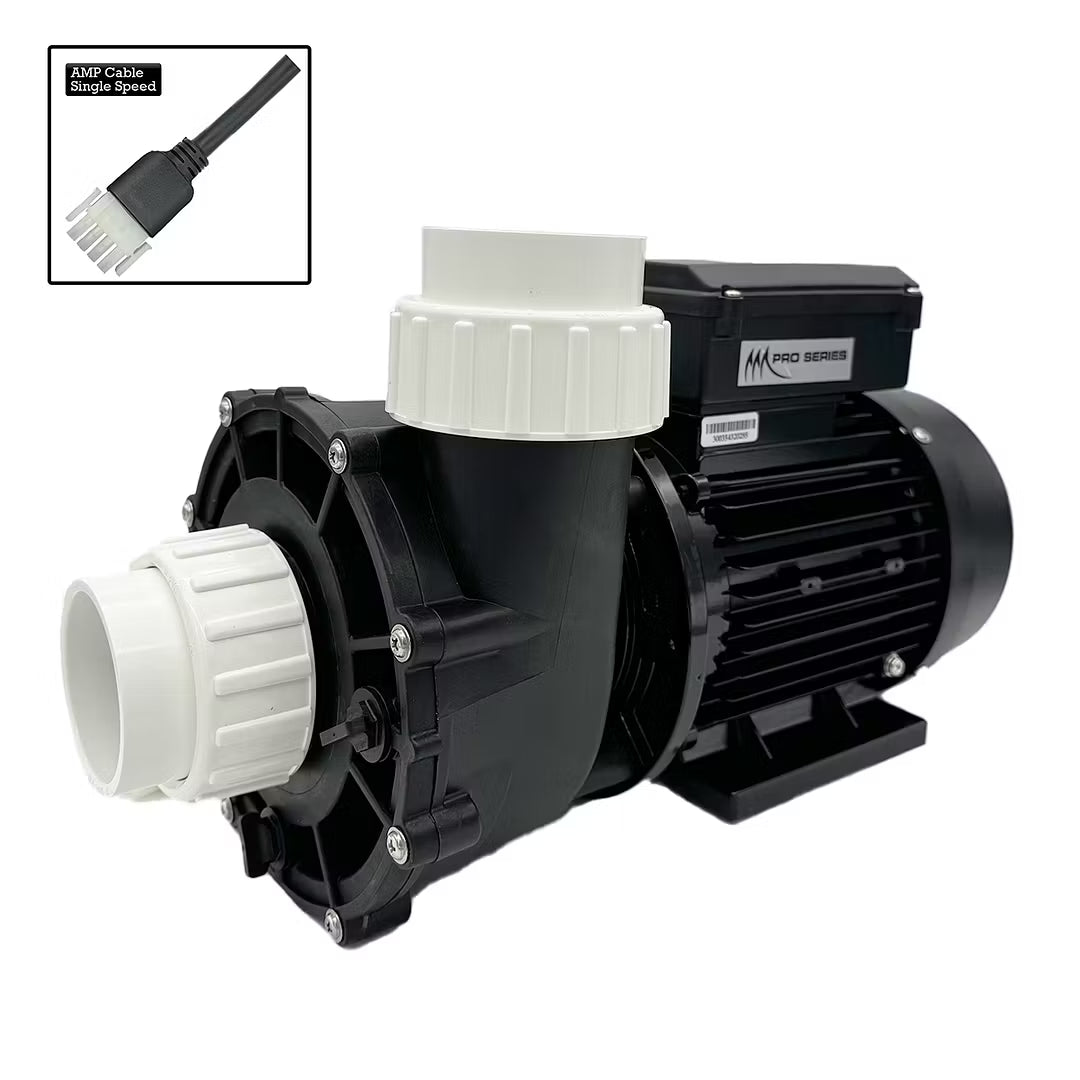

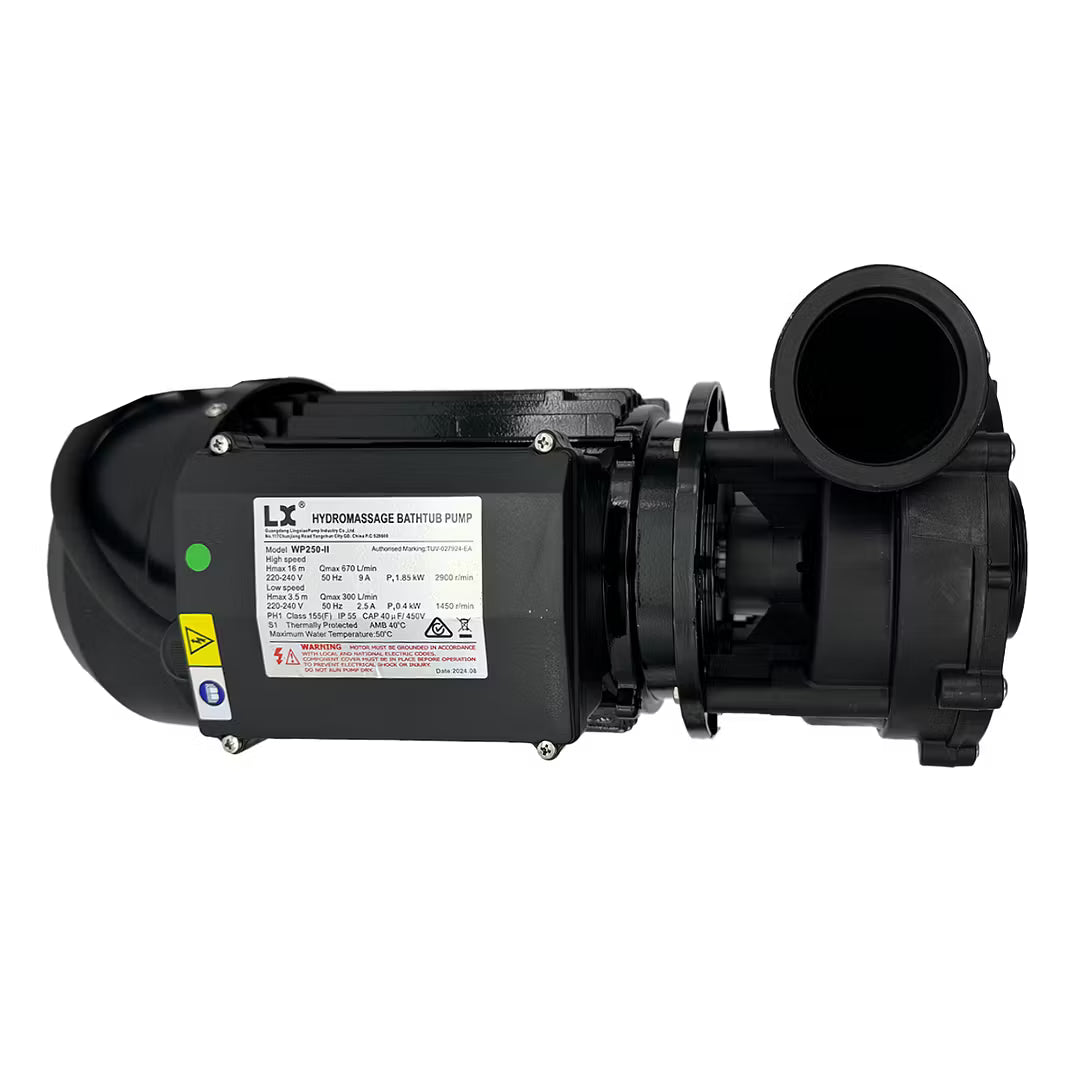

LX Pro Series WP250 2.5hp Two Speed Pump
LX Pro Series WP250 2.5hp Two Speed Pump
Product Description
The LX Pro Series WP250‑II is a high‑performance 2.5 horsepower two‑speed spa pump designed for modern hot tubs, spas, and whirlpool systems. Built on the proven LX WP platform, the Pro Series version includes upgraded internal components and enhanced reliability, making it a popular replacement for LX WP250 and Davey WB series pumps.
This pump features dual‑speed operation, allowing low speed for quiet, energy‑efficient filtration and heating, while high speed delivers strong hydrotherapy jet performance. With a maximum flow rate of approximately 670 litres per minute and 2‑inch suction and discharge unions, it provides excellent circulation with minimal restriction.
The WP250‑II motor is thermally protected, air‑cooled, and rated for continuous spa duty. Its wet end can be rotated to suit multiple plumbing orientations, making installation and retrofitting straightforward across a wide range of spa brands.
Designed for durability and efficiency, this pump is widely used in spa manufacturing and aftermarket replacements, especially in Australian and European spa systems.
Technical Details
General
- Brand: LX
- Series: Pro Series
- Model: WP250‑II
- Pump Type: Spa / Hot Tub Jet Pump
- Operation: Two Speed
Performance
- Horsepower (High Speed): 2.5 HP
- Power Consumption (High Speed): ~1.85 kW
- Power Consumption (Low Speed): ~0.40 kW
- Maximum Flow Rate: ~670 L/min
- Maximum Head Height: ~16 m
Electrical
- Voltage: 220–240 V
- Frequency: 50 Hz
- Current (Low / High Speed): approx. 2.8 A / 8.6 A
- Motor Type: Single‑phase, air‑cooled
- Protection: Thermal overload protection
- Plug Type: AMP (varies by supplier)
Plumbing
- Inlet / Outlet Size: 2″ (≈ 60 mm unions)
- Union Outside Diameter: ~78–79 mm
- Wet End Orientation: Rotatable
Environmental & Build
- Insulation Class: Class F
- Motor Protection Rating: IPX5
- Maximum Water Temperature: 40–50 °C
Dimensions & Weight
- Length: ~434–445 mm
- Width: ~202 mm
- Height: ~235 mm
- Weight: ~16–17 kg
Applications
- Hot tubs
- Spas
- Whirlpool baths
- Replacement for LX WP250, Davey WB series
