Spa Duo Jet 2" Directional Complete with Body ƒ?? Black & Chrome

Product Description?ÿ

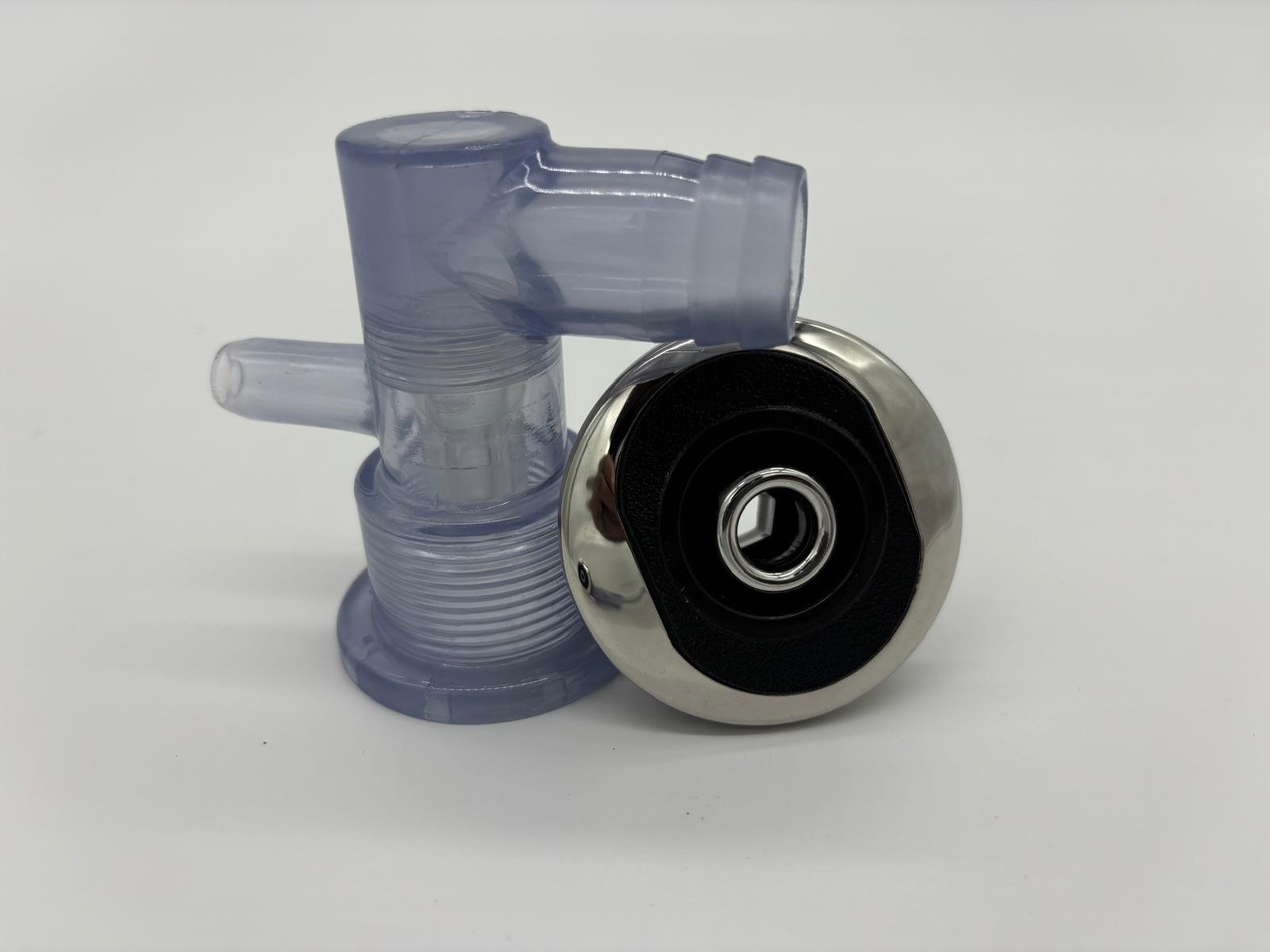

This 2" Duo Catalina Spa Jet - Black & Chrome is a genuine Catalina-imported jet assembly, supplied complete with jet body, and designed for reliable performance in Catalina X539 and X529 swim spas.

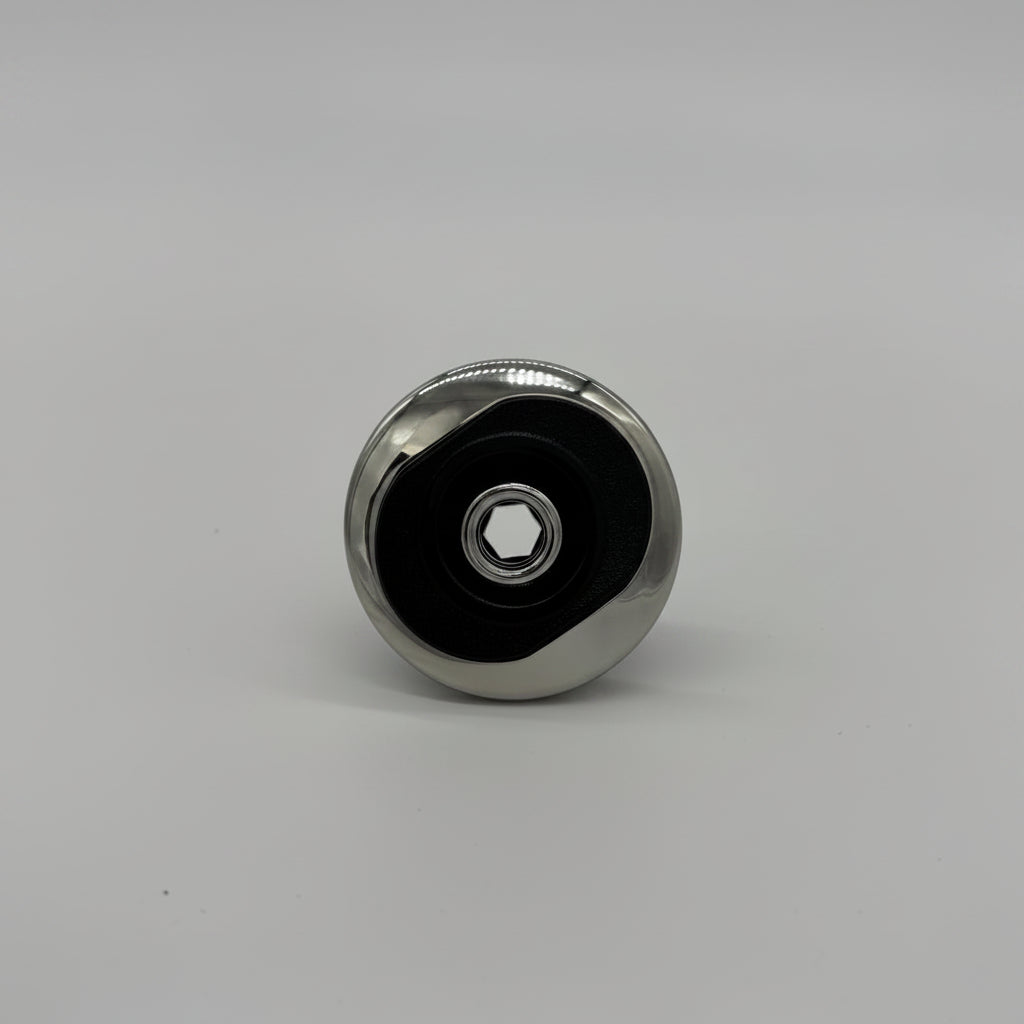

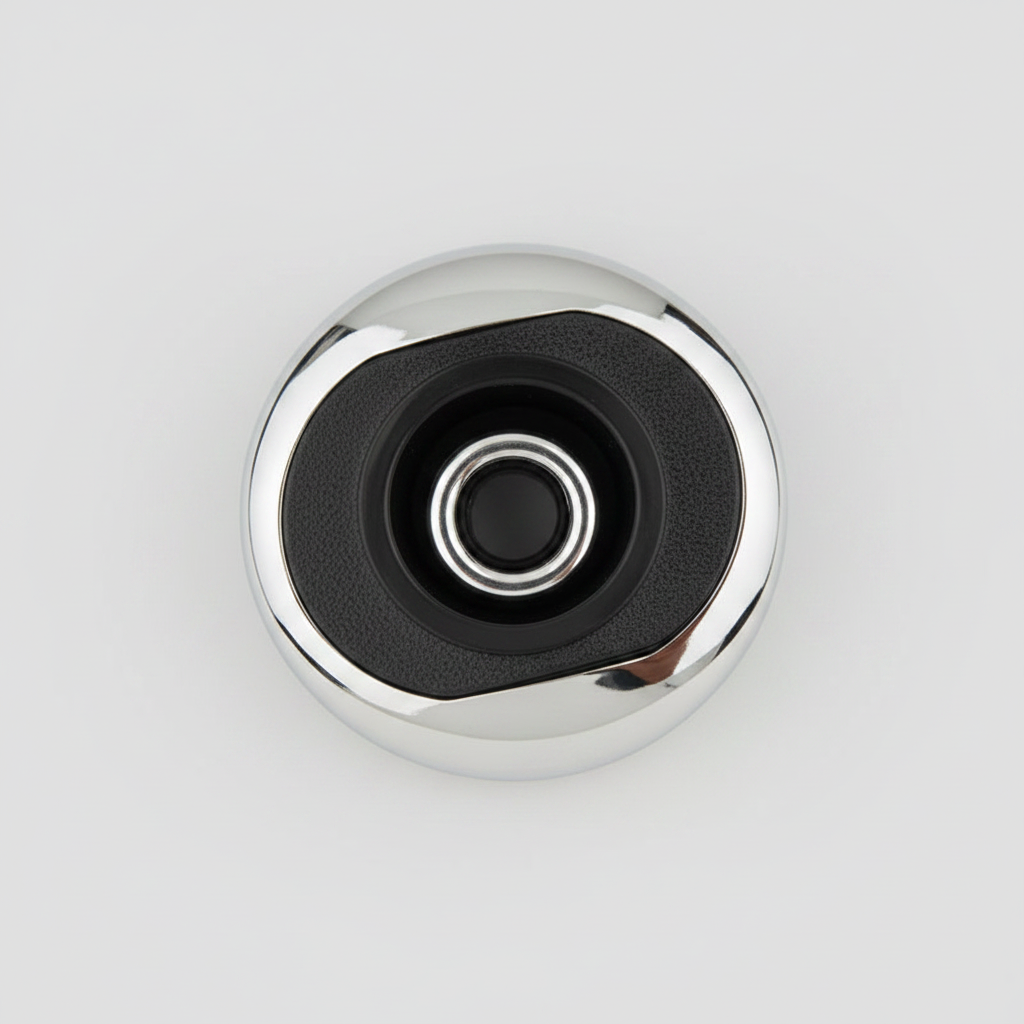

The jet features a screw-in jet insert with a black face and chrome detailing, providing adjustable water flow and a clean, modern finish. The threaded jet insert screws securely into the supplied jet body, ensuring a solid seal and easy servicing when required.

The included jet body incorporates separate water and air injection ports, allowing proper venturi air mixing for a strong massage effect.?ÿ

Designed for direct replacement or new installations, the jet body fits cleanly into the spa shell using a threaded retaining system and sealing O-ring, providing a watertight installation when correctly fitted.

Technical Specifications

• Jet Size (Face Diameter): 2"
• Catalina Ref: L-1011D
• Pressure Type: Pulsating
• Outer Face Diameter: 51mm
• Required Shell Hole Diameter: -/+ 25mm
• Jet Insert Type: Screw-in
• Jet Thread Diameter: Approx. 21mm
• Face Colour: Black & Chrome

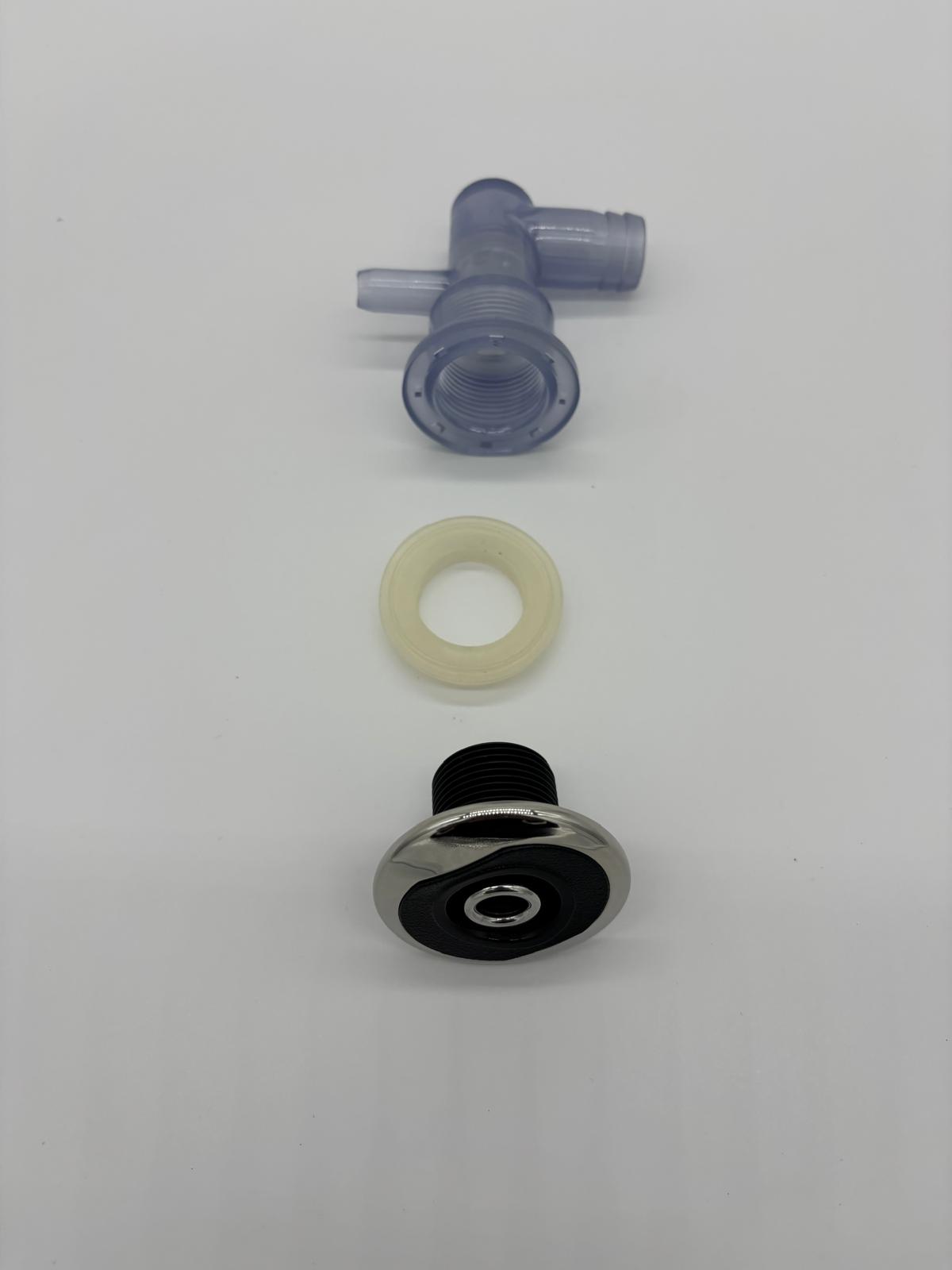

• Construction: Jet insert + complete jet body supplied

Plumbing Connections

• Water Port Size: Suits 19 mm hose
• Air Port Size: Suits 9 mm hose
• Air/Water Mixing: Integrated venturi system

Compatibility

• Suitable For:
  • Catalina X539 Swim Spa
  • Catalina X529 Swim Spa

What-s Included

• 2" Black & Chrome screw-in jet insert
• Jet body with water and air ports
• Sealing O-ring
• Threaded retaining nut

Installation Notes

• Ensure correct 25mm shell hole size before installation
• Confirm hose sizes (19 mm water / 9 mm air) prior to plumbing
• LED light must be purchased separately
• Professional installation recommended
