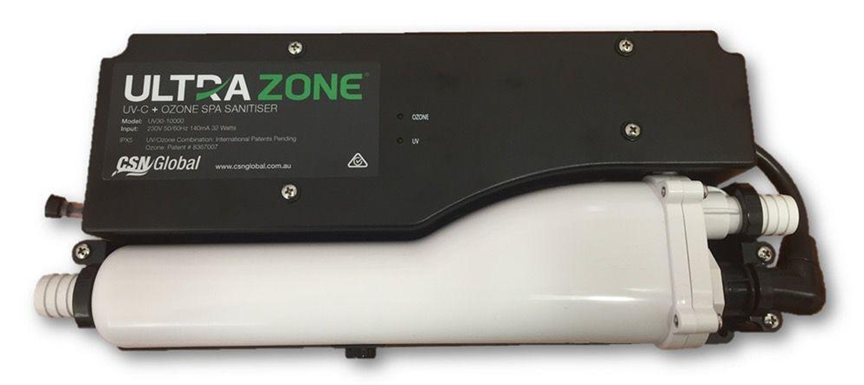

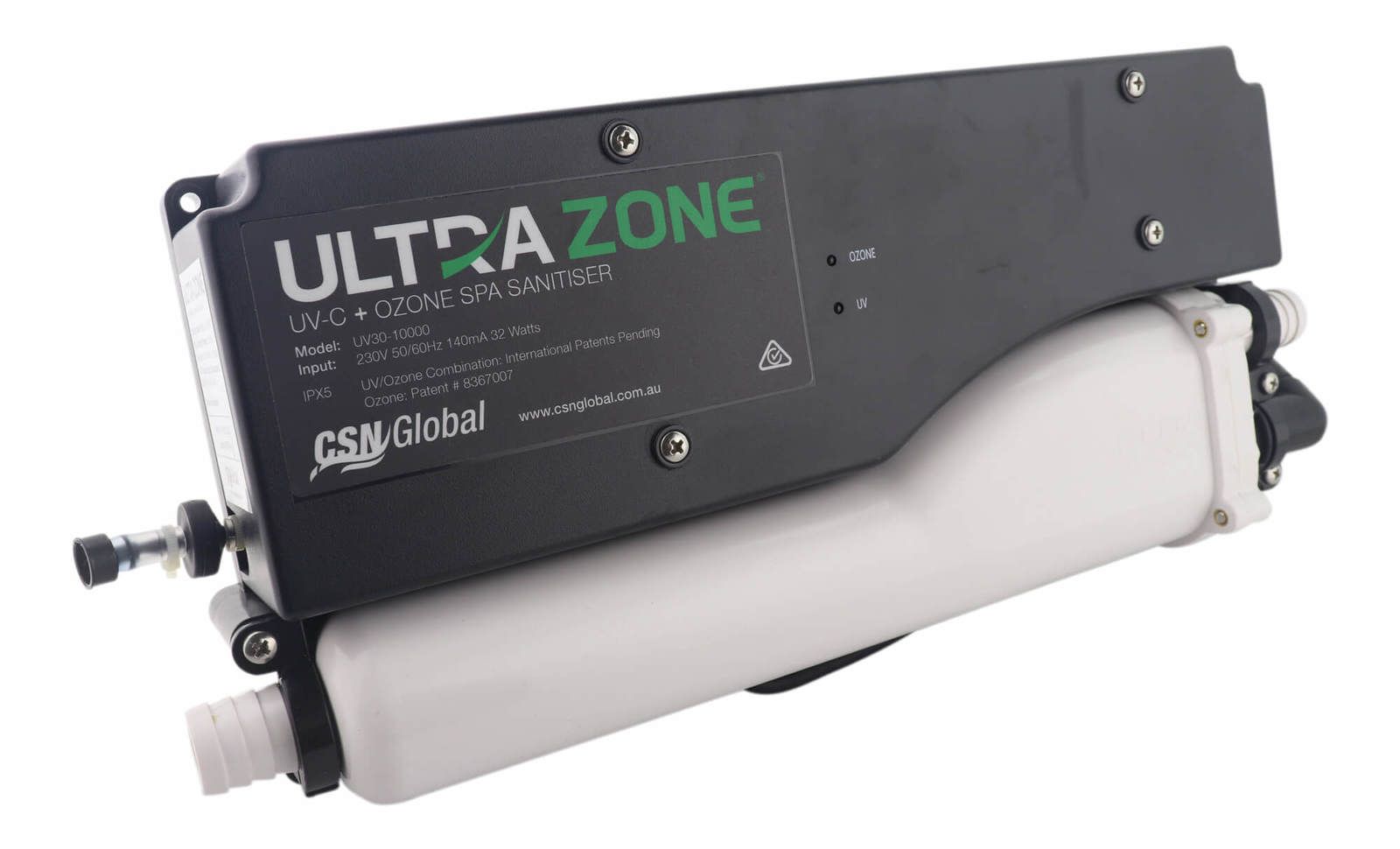

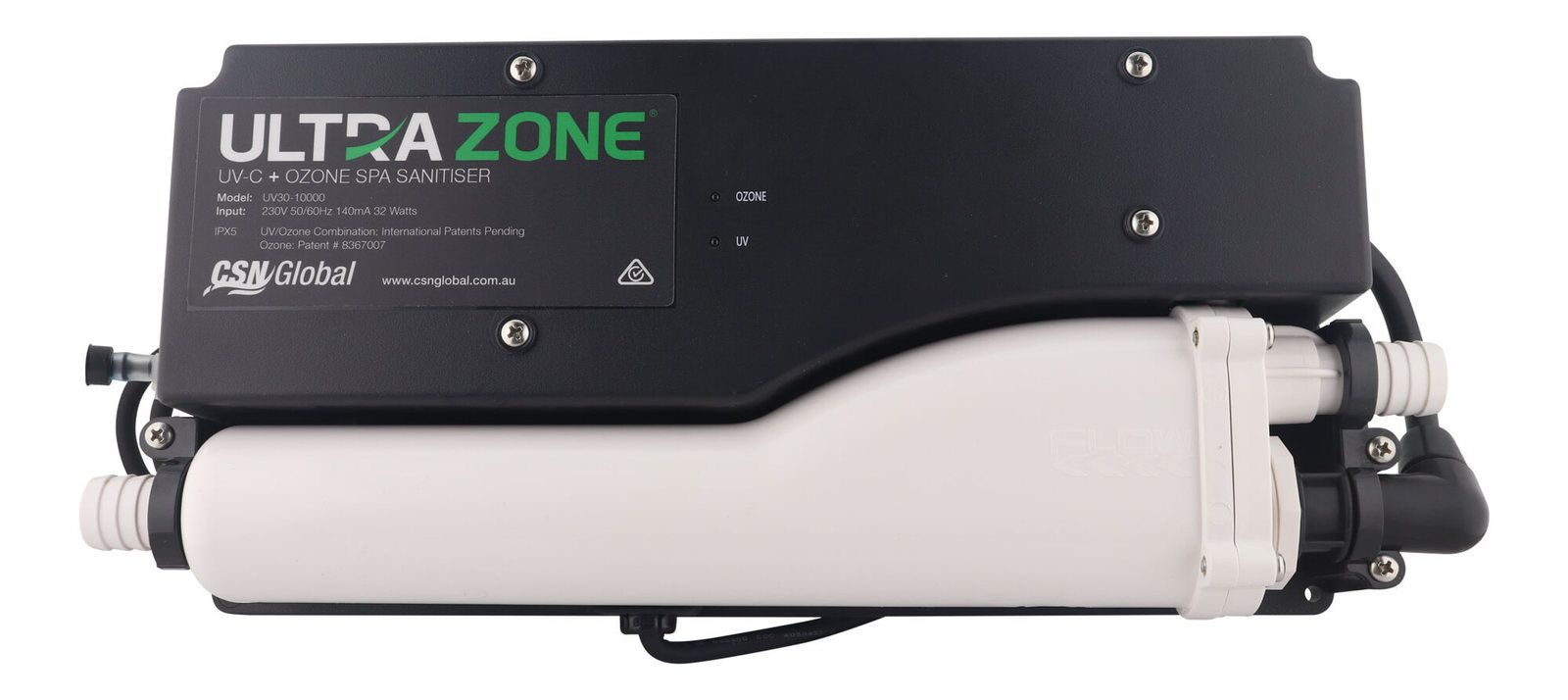

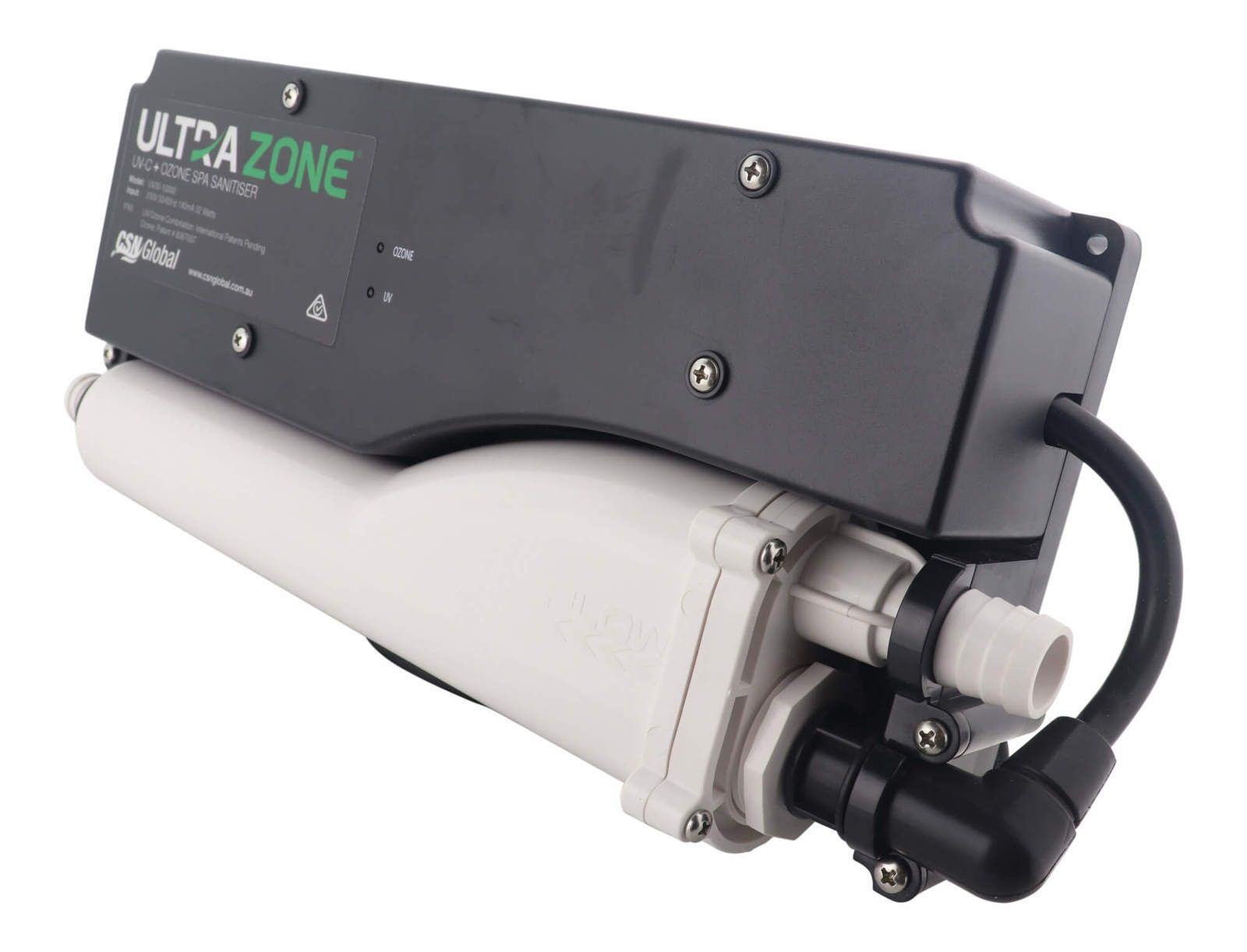

Sanitiser UltraZone UV + Ozone (Spa Guardian)
Sanitiser UltraZone UV + Ozone (Spa Guardian)
Description
UltraZone® UV‑C + Ozone Spa Sanitiser is an advanced spa sanitation system designed for portable spas and controlled by the spa’s equipment pack. It combines corona-discharge ozone generation (50mg/hr) with a 254nm UV‑C lamp inside a patented mixing chamber, creating an Advanced Oxidation Process (AOP) that helps inactivate microorganisms while oxidising contaminants for clearer, cleaner spa water with reduced chemical demand.
The system is intended for installation after all other equipment (typically after the heater) and mounted as high as possible in the equipment bay. It can be mounted horizontally or vertically and is for indoor use under the spa skirt only. UltraZone has no built‑in flow protection and relies on the spa control pack to ensure the filtration pump is running whenever the unit is powered.
Key specifications:
• Water capacity: up to 5,000 gallons (20,000 litres)
• Flow range: 4–19 GPM (14–75 LPM); max recommended flow 19 GPM (75 LPM)
• Ozone output: 50mg/hr
• UV‑C wavelength: 254nm
• Operating water temperature: 5°C to 40°C
• Max operating pressure: 30 psi (210 kPa)
• Power input: 120V 60Hz or 240V 50/60Hz (240V: 140mA, 32W)
• Dimensions: 350mm × 160mm × 85mm (13.8" × 6.3" × 3.4")
• Weight: 1.5kg (3.3 lb)
• Ambient operating temperature: 0°C to 45°C
• Enclosure rating: IPX5 water resistant
• Status LEDs: green (normal), flashing yellow (lamp replacement), red (non‑operational)
Maintenance requirements:
• Replace check valve and tubing assembly annually
• Replace UV‑C lamp every 10,000 hours or when the UV LED flashes yellow
• Inspect/clean quartz tube as required (ensure tube is dry inside before reinstalling lamp)
Safety & compliance notes:
• Must be installed by a qualified service professional/electrician
• Supply should be protected by an RCD (≤30 mA)
• Never operate with damaged housing, exposed UV‑C emitter, or disconnected hoses
• Not for drinking water sanitation; a supplementary residual sanitiser (e.g., chlorine) is still required for responsible water care
• Warranty: 24 months on the sanitizer; 1 year on check valve
Installation Manual:
https://www.austral.co.nz/downloads/Ultrazone%20Spa%20UVOzone%20Manual%202025.pdf
Specification:
Show more
Description
UltraZone® UV‑C + Ozone Spa Sanitiser is an advanced spa sanitation system designed for portable spas and controlled by the spa’s equipment pack. It combines corona-discharge ozone generation (50mg/hr) with a 254nm UV‑C lamp inside a patented mixing chamber, creating an Advanced Oxidation Process (AOP) that helps inactivate microorganisms while oxidising contaminants for clearer, cleaner spa water with reduced chemical demand.
The system is intended for installation after all other equipment (typically after the heater) and mounted as high as possible in the equipment bay. It can be mounted horizontally or vertically and is for indoor use under the spa skirt only. UltraZone has no built‑in flow protection and relies on the spa control pack to ensure the filtration pump is running whenever the unit is powered.
Key specifications:
• Water capacity: up to 5,000 gallons (20,000 litres)
• Flow range: 4–19 GPM (14–75 LPM); max recommended flow 19 GPM (75 LPM)
• Ozone output: 50mg/hr
• UV‑C wavelength: 254nm
• Operating water temperature: 5°C to 40°C
• Max operating pressure: 30 psi (210 kPa)
• Power input: 120V 60Hz or 240V 50/60Hz (240V: 140mA, 32W)
• Dimensions: 350mm × 160mm × 85mm (13.8" × 6.3" × 3.4")
• Weight: 1.5kg (3.3 lb)
• Ambient operating temperature: 0°C to 45°C
• Enclosure rating: IPX5 water resistant
• Status LEDs: green (normal), flashing yellow (lamp replacement), red (non‑operational)
Maintenance requirements:
• Replace check valve and tubing assembly annually
• Replace UV‑C lamp every 10,000 hours or when the UV LED flashes yellow
• Inspect/clean quartz tube as required (ensure tube is dry inside before reinstalling lamp)
Safety & compliance notes:
• Must be installed by a qualified service professional/electrician
• Supply should be protected by an RCD (≤30 mA)
• Never operate with damaged housing, exposed UV‑C emitter, or disconnected hoses
• Not for drinking water sanitation; a supplementary residual sanitiser (e.g., chlorine) is still required for responsible water care
• Warranty: 24 months on the sanitizer; 1 year on check valve
Installation Manual:
https://www.austral.co.nz/downloads/Ultrazone%20Spa%20UVOzone%20Manual%202025.pdf
